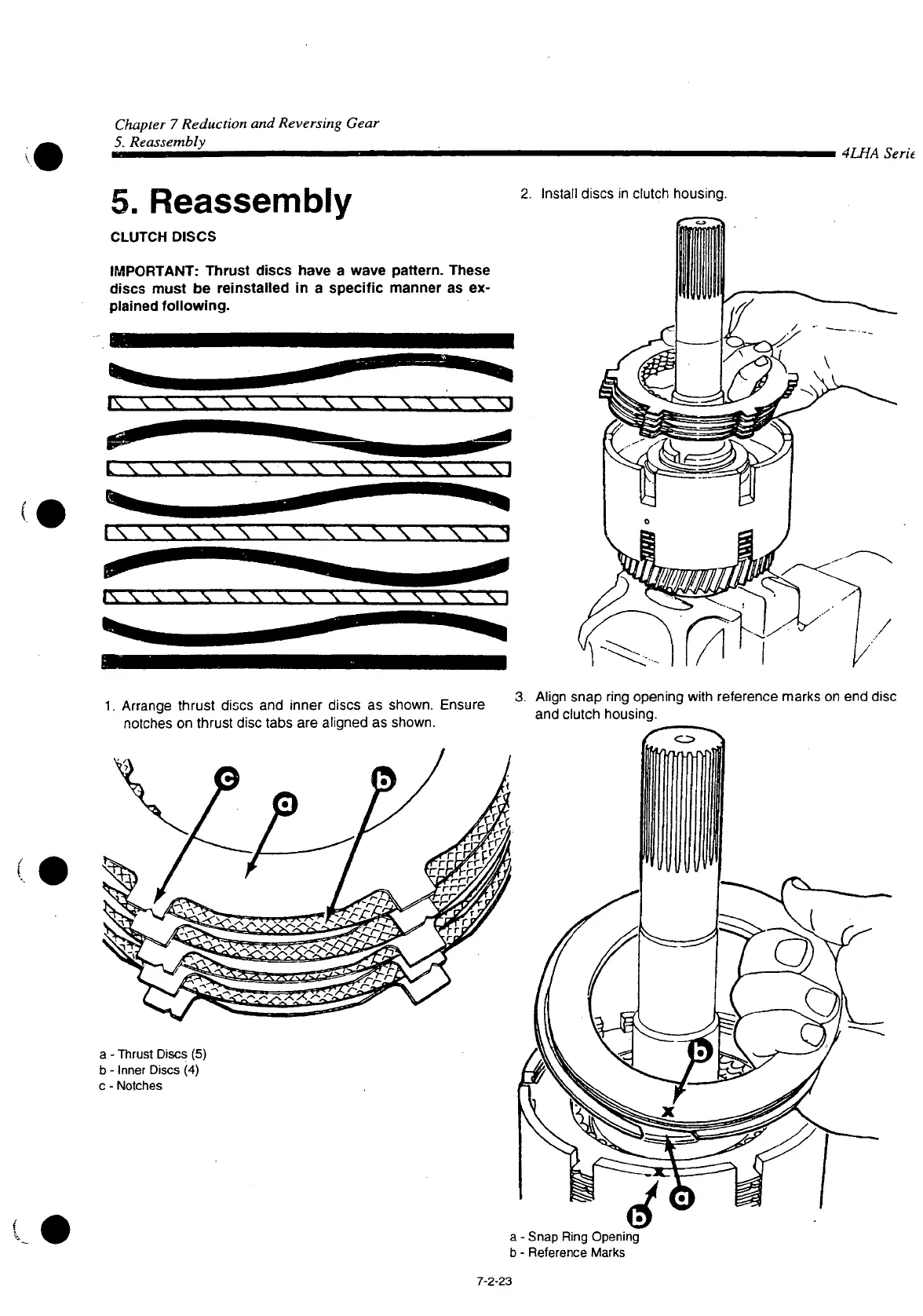

Chapter 7 Reduction and Reversing Gear
5. Reassembly
4LHA Serie
5. Reassembly
CLUTCH
DISCS
IMPORTANT:
Thrust
discs
have
a
wave
pattern.
These
discs
must
be
reinstalled
in a specific
manner
as ex-
plained
following.
2.
Install discs in clutch housing.
a
_ . w • i. . r- „ 3. Align snap ring opening
with
reference marks on end disc
1. Arrange thrust discs and inner discs as shown. Ensure H i t hh •
notches
on thrust disc tabs are aligned as shown.
am clutcn
nousin
9-
a
- Thrust
Discs
(5)
b - Inner
Discs
(4)
c
- Notches
a
-
Snap
Ring Opening
b - Reference Marks
7-2-23
