Chapter 7 Reduction and Reversing Gear
5. Reassembly
4LHA Series

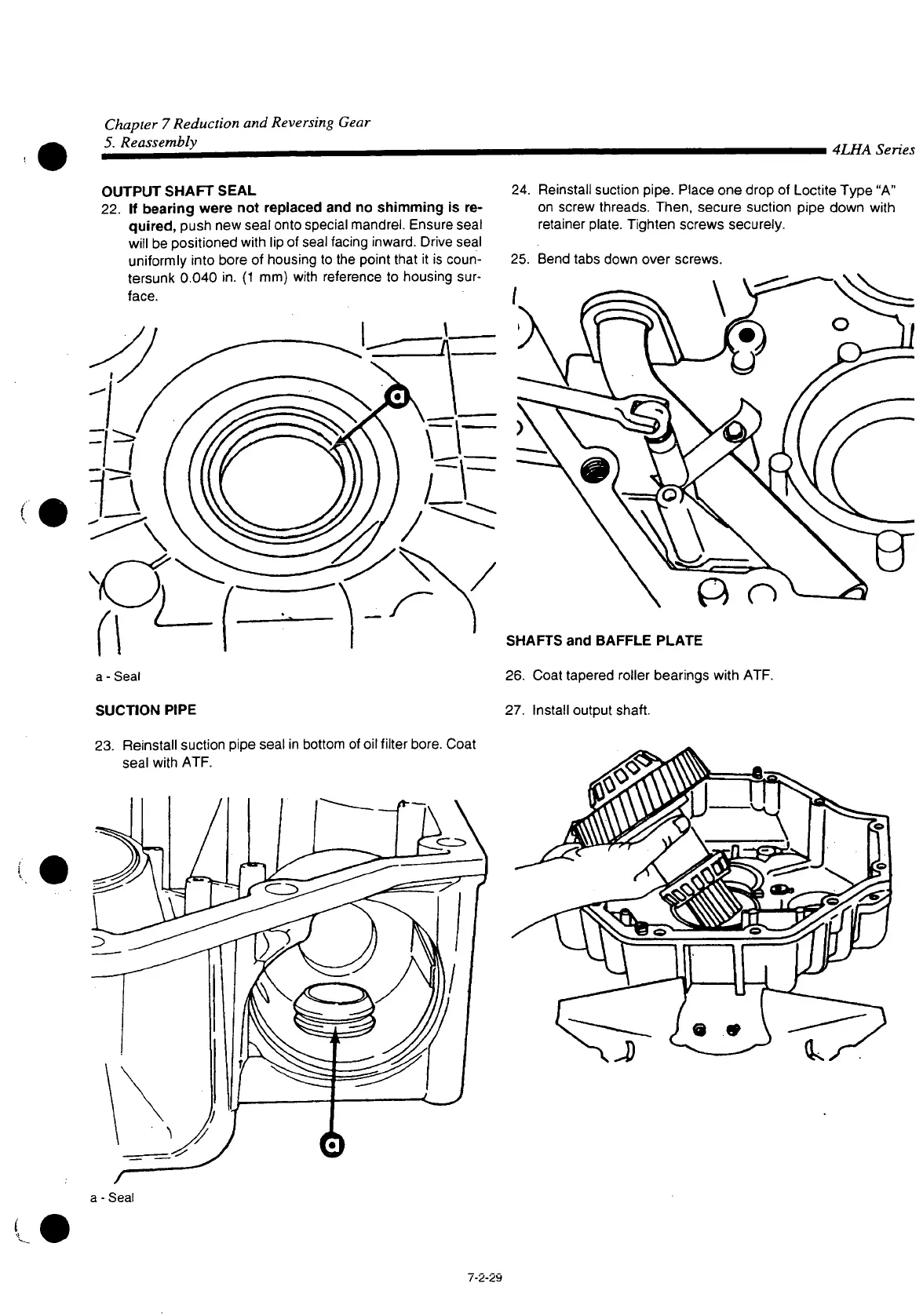

OUTPUT SHAFT SEAL
22.
If bearing were not replaced and no shimming is re-
quired,
push new seal onto
special
mandrel.
Ensure
seal
will be positioned
with
lip of
seal
facing inward. Drive seal
uniformly into bore of housing to the point
that
it is coun-
tersunk 0.040 in. (1 mm)
with
reference to housing sur-
face.
24.
Reinstall suction pipe.
Place
one drop of Loctite Type "A"
on screw threads. Then, secure suction pipe down
with
retainer plate. Tighten screws securely.
25.
Bend tabs down over screws.
a
-
Seal
SUCTION
PIPE
23.
Reinstall suction pipe seal in bottom of oil
filter
bore. Coat
seal
with
ATF.
SHAFTS
and BAFFLE PLATE
26.
Coat tapered roller bearings
with
ATF.
27.
Install output shaft.
7-2-29
