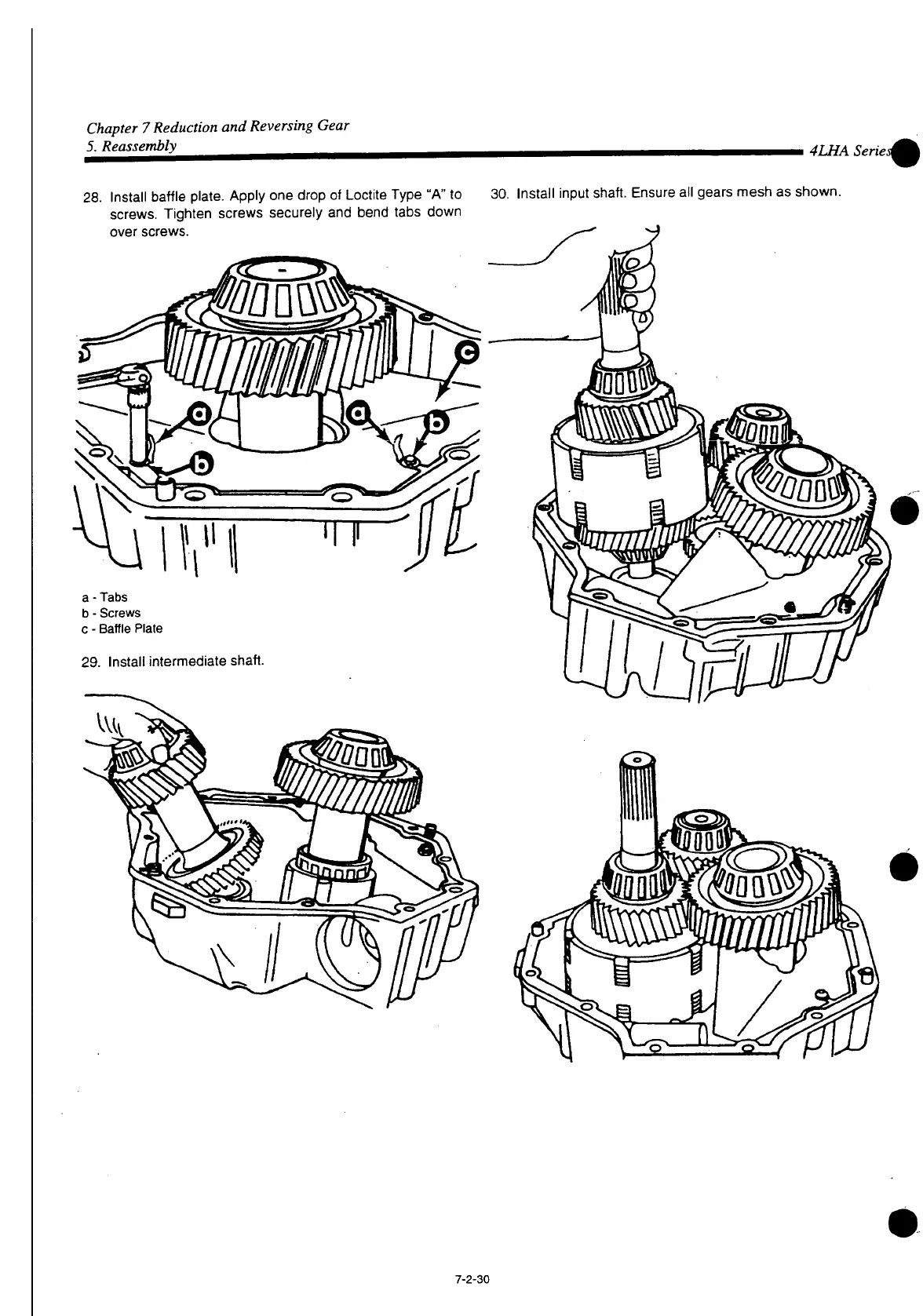

Chapter 7 Reduction and Reversing Gear
5. Reassembly
4LHA Series
28.
Install baffle plate. Apply one drop of Loctite Type "A" to
screws.
Tighten screws securely and bend tabs down
over
screws.
30.
Install input shaft. Ensure all gears mesh as shown.
a
- Tabs
b -
Screws
c
- Baffle Plate
29.
Install intermediate shaft.
7-2-30
