Chapter 3 Fuel Injection Equipment
I. Fuel Supply System
4LHA Series

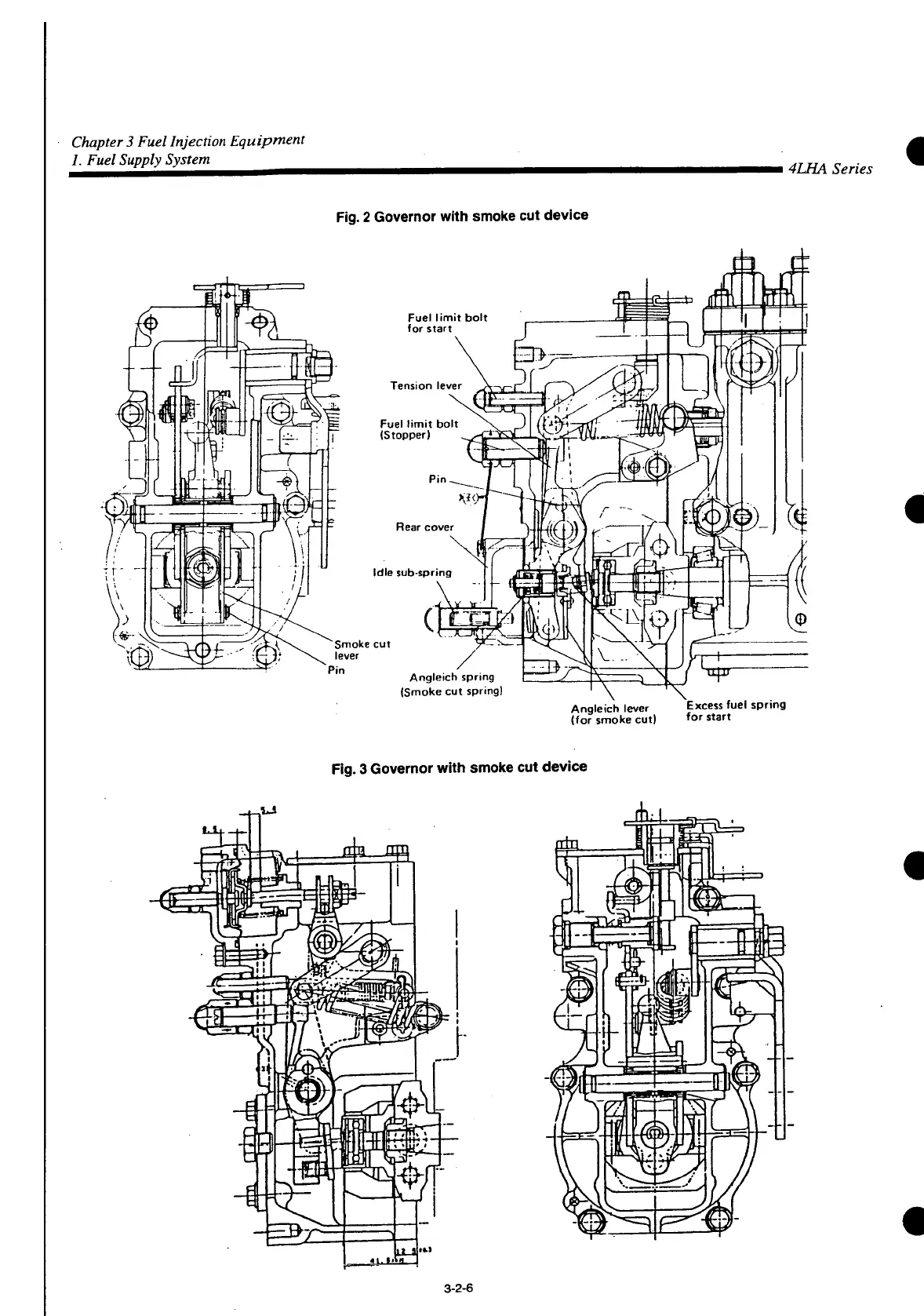

Fig. 2 Governor with smoke cut device
(•i-
Fuel limit bolt
for start
Tension lever
Fuel limit bolt
(Stopper
Rear cover
Idle sub-spring
Smoke cut
lever
Pin
Angleich spring
(Smoke cut spring)
Angleich lever Excess fuel spring
(for smoke cut) <or start
Fig. 3 Governor with smoke cut device
3-2-6
