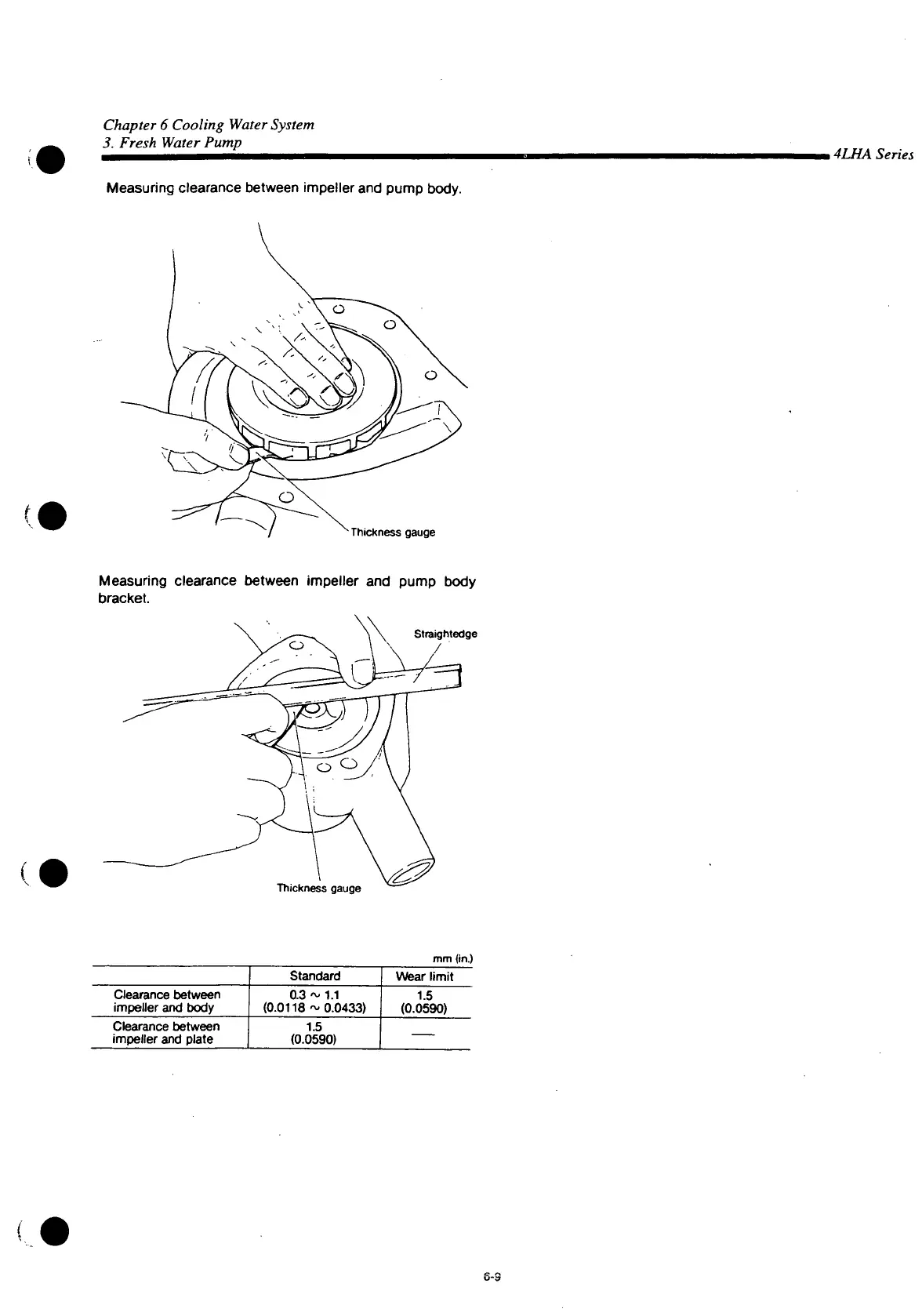

Chapter 6 Cooling Water System
3. Fresh Water Pump
,4LHA Series
Measuring
clearance between impeller and pump body.
Thickness
gauge
Measuring
clearance between impeller and pump body
bracket.
Straightedge
Thickness
gauge
mm (in.)
Standard
Wear
limit
Clearance
between
impeller and body
0.3 ~ 1.1
(0.0118 ~ 0.0433)
1.5
(0.0590)
Clearance
between
impeller and plate
1.5
(0.0590)
S-3
