Yanmar 4LHA-HTP User Manual

Chapter 7 Reduction and Reversing Gear
1. Construction
*4LHA Series

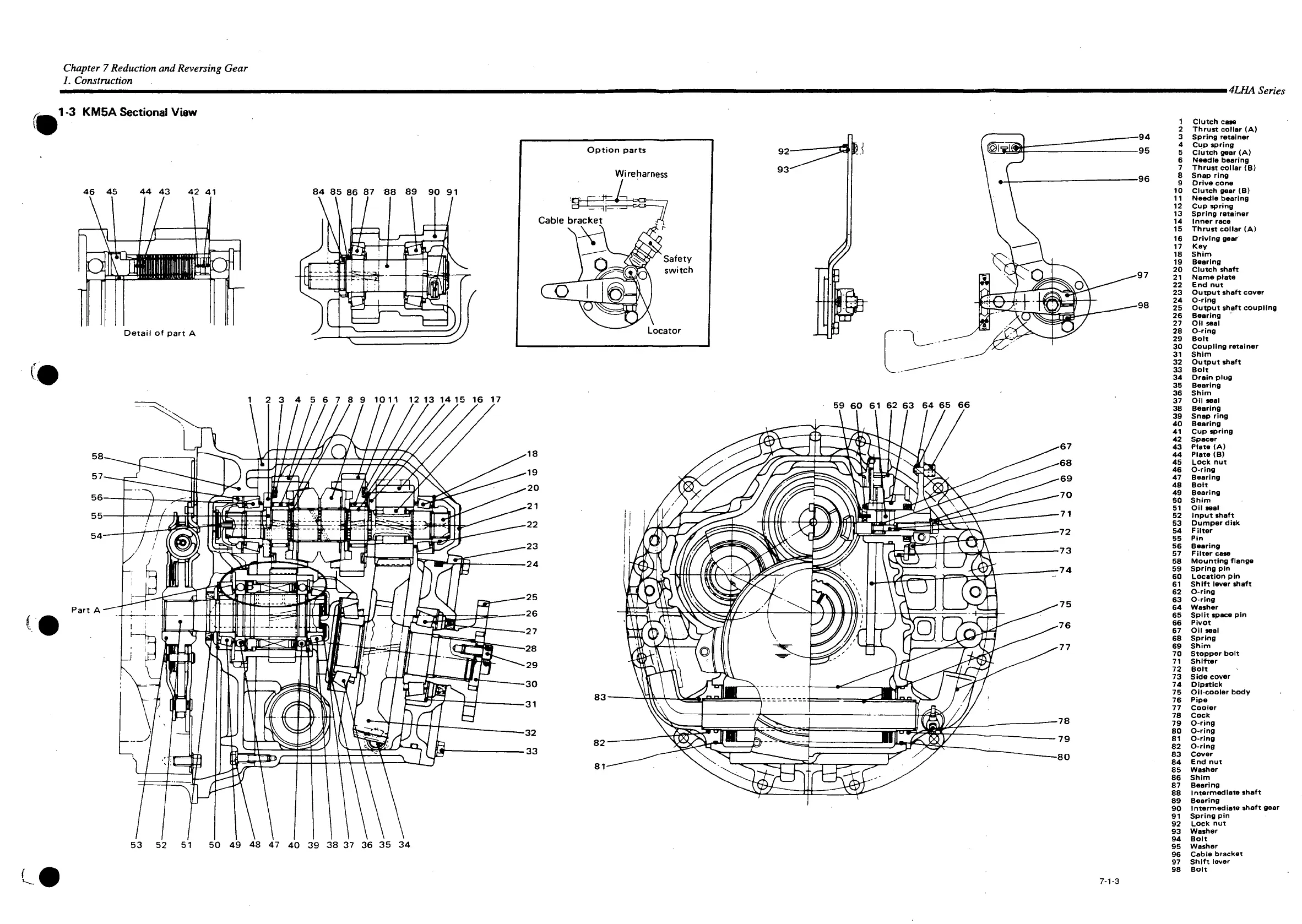

13 KM5A Sectional View
46 45 44 43 42 41 84 85 86 87 88 89 90 91
Detail of part A
Option parts
Wire harness
Cable bracket
Safety
switch
CD
Locator
1 23 4 56789 1011 12 13 1415 16 17
Part A
59 60 61 62 63 64 65 66
53 52 51 50 49 48 47 40 39 38 37 36 35 34
1 Clutch caw
2 Thrust collar (A)
3 Spring retainer
4 Cup spring
5 Clutch gear (A)
6 Needle bearing
7 Thrust collar (B)
8 Snap ring
9 Orive cone
10 Clutch gear (B)
11 Needle bearing
12 Cup spring
13 Spring retainer
14 Inner race
15 Thrust collar (A)
16 Driving gear
17 Key
18 Shim
19 Bearing
20 Clutch shaft
21 Name plate
22 End nut
23 Output shaft cover
24 O-ring
25 Output shaft coupling
26 Bearing
27 Oil seal
28 O-ring
29 Bolt
30 Coupling retainer
31 Shim
32 Output shaft
33 Bolt
34 Drain plug
35 Bearing
36 Shim
37 Oil seal
38 Bearing
39 Snap ring
40 Bearing
41 Cup spring
42 Spacer
43 Plate (A)
44 Plate (B)
45 Lock nut
46 O-ring
47 Bearing
48 Bolt
49 Bearing
50 Shim
51 Oil seal
52 Input shaft
53 Dumper disk
54 Filter
55 Pin
56 Bearing
57 Filter case
58 Mounting flange
59 Spring pin
60 Location pin
61 Shift lever shaft
62 O-ring
63 O-ring
64 Washer
65 Split space pin
66 Pivot
67 Oil seal
68 Spring
69 Shim
70 Stopper bolt
71 Shifter
72 Bolt
73 Side cover
74 Dipstick
75 Oil-cooler body
76 Pipe
77 Cooler
78 Cock
79 O-ring
80 O-ring
81 O-ring
82 O-ring
83 Cover
84 End nut
85 Washer
86 Shim
87 Bearing
88 Intermediate shaft
89 Bearing
90 Intermediate shaft gear
91 Spring pin
92 Lock nut
93 Washer
94 Bolt
95 Washer
96 Cable bracket
97 Shift lever
98 Bolt
7-1-3
