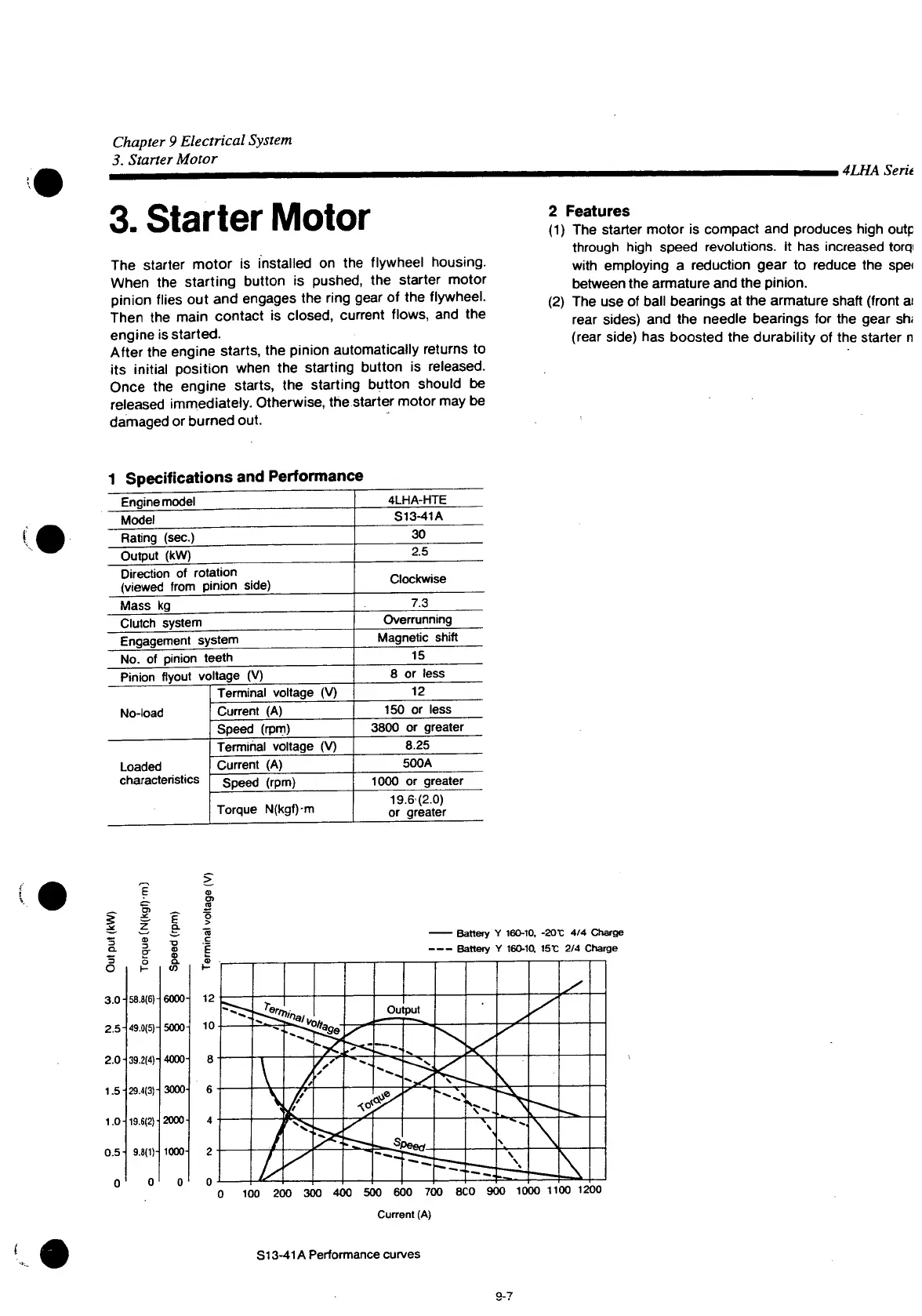

Chapter 9 Electrical System
3. Starter Motor
,
4LHA Sent
3.
Starter
Motor
The starter motor
is
installed
on the
flywheel housing.
When
the
starting
button
is
pushed,
the
starter motor
pinion flies
out
and engages
the
ring gear
of the
flywheel.
Then
the
main contact
is
closed,
current flows,
and the
engine is started.
After the engine starts,
the
pinion automatically returns
to
its initial position when
the
starting
button
is
released.
Once
the
engine starts,
the
starting
button
should
be
released
immediately. Otherwise, the starter motor may
be
damaged or burned out.
2
Features
(1) The starter motor
is
compact and produces high outp
through high speed revolutions.
It
has increased
torqi
with
employing
a
reduction gear
to
reduce
the
spe<
between the armature and the pinion.
(2) The use
of
ball bearings
at
the armature shaft
(front
ai
rear sides) and
the
needle bearings
for the
gear
shi
(rear side) has boosted
the
durability
of
the starter
n
1
Specifications
and
Performance
Engine
model
4LHA-HTE
Model
S13-41A
Rating (sec.)
30
Output
(kW)
2.5
Direction
of
rotation
(viewed from pinion side)
Clockwise
Mass
kg
7.3
Clutch
system
Overrunning
Engagement system
Magnetic
shift
No.
of
pinion teeth
15
Pinion
flyout
voltage
(V)
8
or
less
No-load
Terminal voltage
(V)
12
No-load
Current
(A)
150
or
less
No-load
Speed
(rpm)
3800
or
greater
Loaded
characteristics
Terminal voltage
(V)
8.25
Loaded
characteristics
Current
(A)
500A
Loaded
characteristics
Speed
(rpm)
1000
or
greater
Loaded
characteristics
Torque N(kgf)-m
19.6(2.0)
or greater
I-
3.0-158.8(6)
2.5-
49.0(5)
2.0
1.0-
0.5-
0
39.2(4)
1.5-
29.4(3)
19.6(2)
9.8(1)-
0
6000-I
5000
4000-
3000-
2000
1000
0
Battery
Y
160-10.
-20t 4/4
Charge
Battery
Y
160-10
15
r
2/4
Charge
Ou
put
\
—-fr
//
r
v
—
\
.
s
\
\
\
L'
\
0
100 200 300 400 500 600 700 8C0 900
1000 1100
1200
Current (A)
SI 3-41A Performance curves
