◆ Wire Gauges, Tightening Torque, and Crimp Terminals
Wire gauge and torque specifications are listed in Table 3.Yaskawa recommends using
crimp terminals with the specifications listed in Table 4 to facilitate wiring and ensure
proper connection.

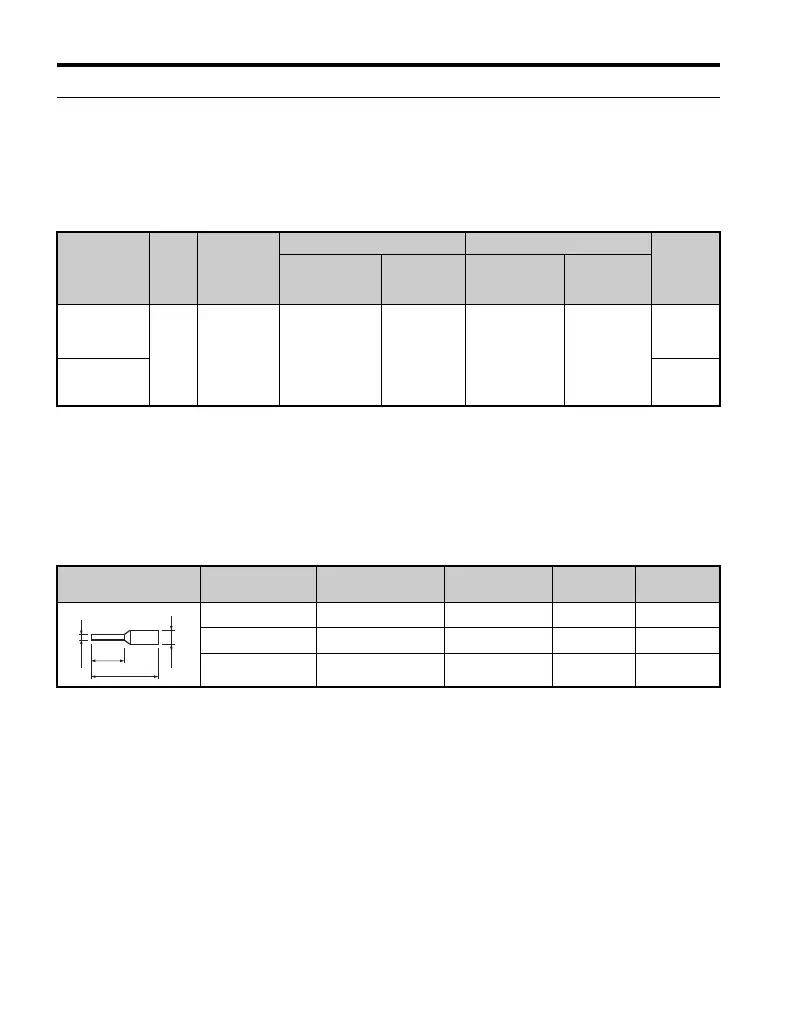

Table 3 Wire Gauges and Tightening Torques
■
Crimp Terminals
Yaskawa recommends using CRIMPFOX 6 by Phoenix Contact or equivalent to crimp the
terminal ends.
Note: Properly trim wire ends so loose wire ends do not extend from the crimp terminals.
Table 4 Crimp Terminal Sizes
Terminal
Signal
Screw
Size
Tightening
Torque
Nxm
(inxlb)
Bare Cable Crimp Terminals
Wire
Type
Applicable
Gauges
mm
2
(AWG)
Recomm.
Gauge
mm
2
(AWG)
Applicable
Gauges
mm
2
(AWG)
Recomm.
Gauge
mm
2
(AWG)
A+, A–, B+,
B–, Z+, Z–,
SD, FE, IP, IG
M2
0.22 to 0.25
(1.95 to 2.21)
Stranded wire:
0.25 to 1.0
(24 to 17)
Solid wire:
0.25 to 1.5
(24 to 16)
0.75
(18)
0.25 to 0.5
(24 to 20)
0.5
(20)
Shielded
twisted
pair, etc.
a+, a–, b+,
b–, z+, z–, SG
Shielded
cable, etc.
Wire Gauge
mm
2
(AWG)
Phoenix Contact
Model
L
mm (in)
d1
mm (in)
d2
mm (in)
0.25 (24) AI 0.25 - 6YE 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.34 (22) AI 0.34 - 6TQ 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.5 (20) AI 0.5 - 6WH 14 (9/16) 1.1 (3/64) 2.5 (3/32)
To Next Page
