10-18

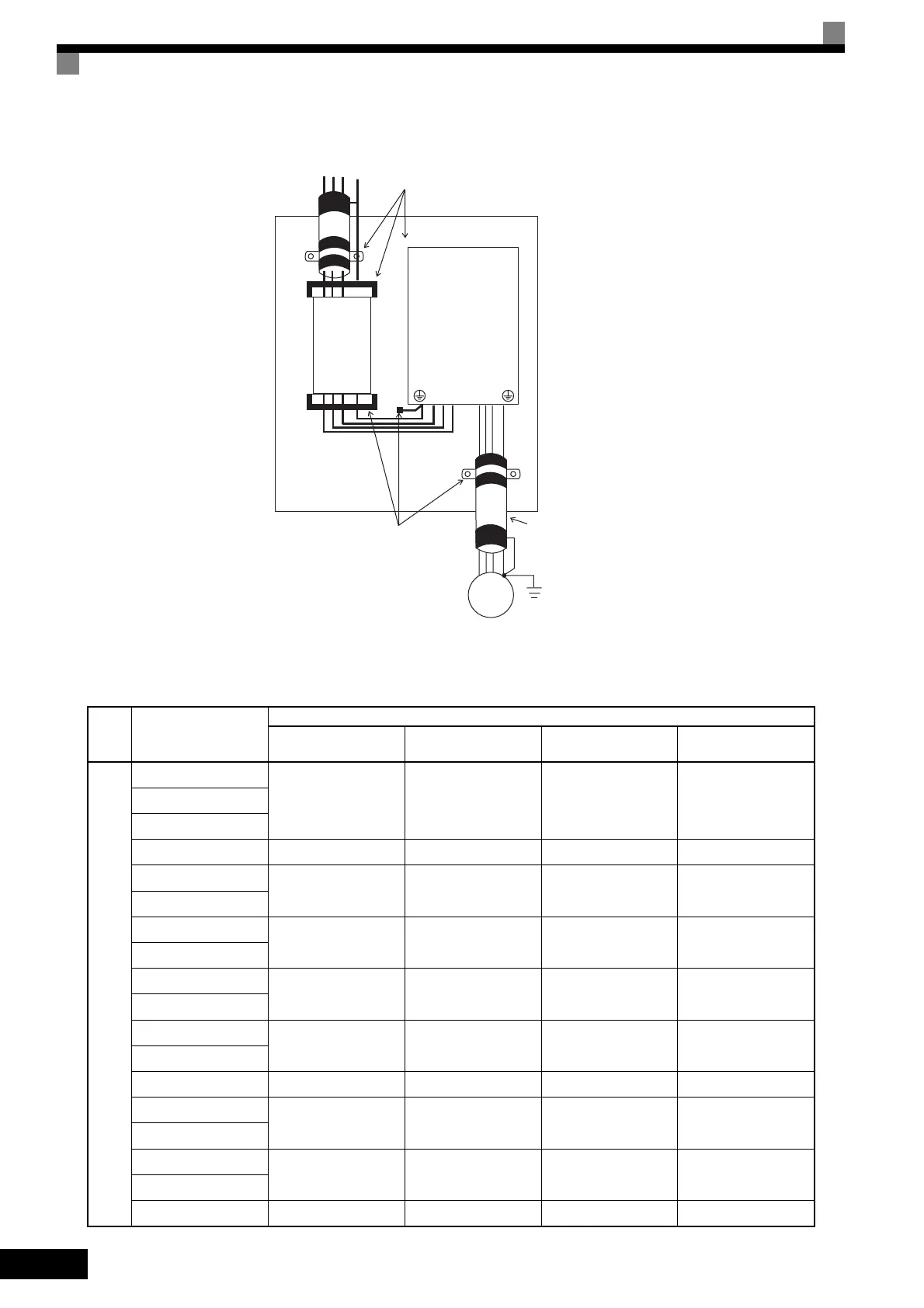

Fig 10.8 Installation Method for Filter and Inverter (CIMR-F7A2022 to 2110, 4022 to 4300)
Table 10.5 EMC Noise Filters
Volt-
age
Class
Inverter Model
Number
CIMR-F7A
Noise Filter (Made by Shaffner)
Model Number Rated Current (A) Weight (kg)
Dimensions (mm)
W × D × H
200V
Class
20P4
FS5972-10-07 10 1.1 141 × 46 × 33020P7
21P5
22P2 FS5972-18-07 18 1.7 141 × 46 × 330
23P7
FS5973-35-07 35 1.4 141 × 46 × 330
25P5
27P5
FS5973-60-07 60 3 206 × 60 × 355
2011
2015
FS5973-100-07 100 4.9 236 × 80 × 408
2018
2022
FS5973-130-35 130 4.3 90 × 180 × 370
2030
2037 FS5973-160-40 160 6 120 × 170 × 451
2045
FS5973-240-37 240 11 130 × 240 × 610
2055
2075
FS5972-410-99 410 10.5 260 × 115 × 386
2090
2110 FS5972-600-99 600 11 260 × 135 × 386
PE
IM
Remove the paint on the ground side.
Inverter
Inputs
Filter
Outputs
Wiring length: 20 m max.
Remove the paint on the ground side.
Wiring length:
40 cm max.
Metallic plate
R/L1, S/L2, T/L3
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
To Next Page
