3 Utility Function Mode
3.2.14 Manual Offset-Signal Adjustment of the Motor Current Detection Signal (Fn00F)
3-34

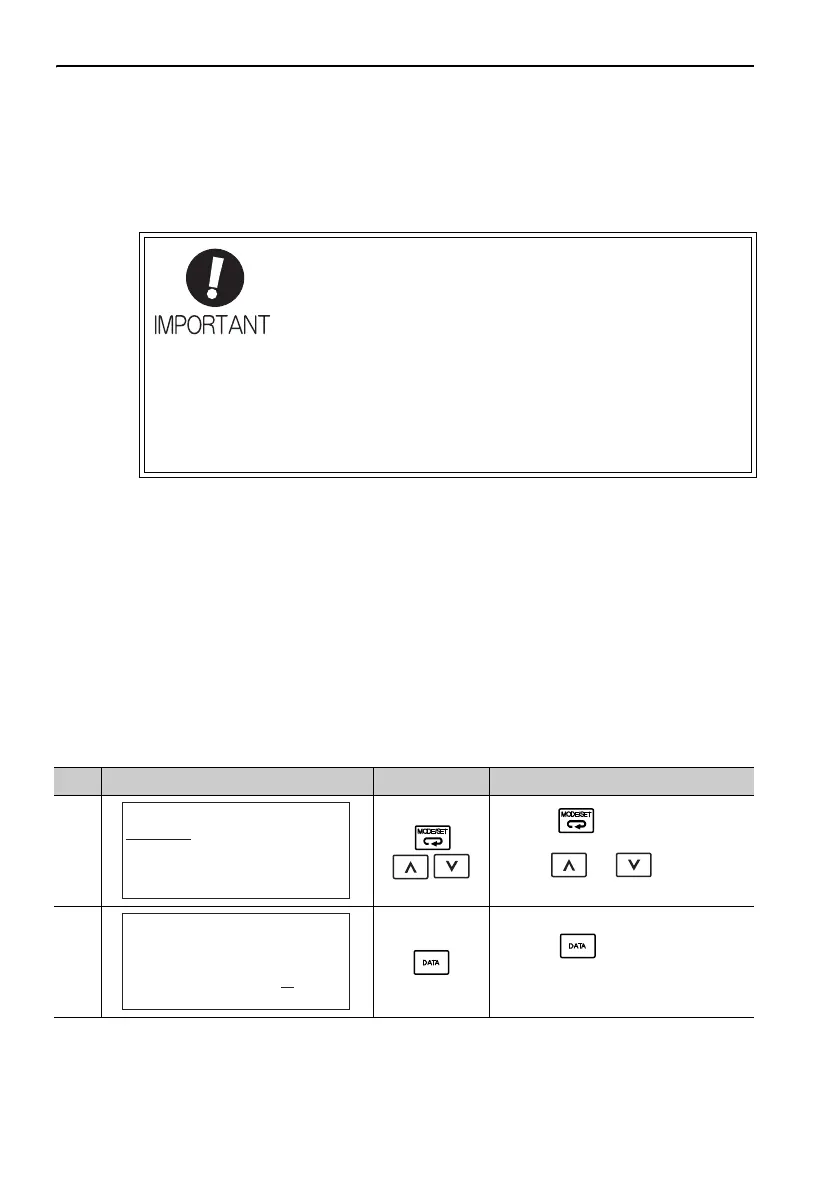

3.2.14 Manual Offset-Signal Adjustment of the Motor Current
Detection Signal (Fn00F)
Use this function only if the torque ripple is still high after the automatic offset-signal
adjustment of the motor current detection signal (Fn00E).
Note: Fn005 cannot initialize any value adjusted with Fn00F.
(1) Preparation
The following condition must be met to manually adjust the offset of the motor cur-
rent detection signal.
• The write prohibited setting (Fn010) must not be set to write-protect parameters.
(2) Operating Procedure
Use the following procedure.
If this function is executed carelessly, it may worsen the char-
acteristics.
Observe the following precautions when performing manual
servo tuning.
• Run the servomotor at a speed of approximately
100 min
-1
.
• Adjust the offset while monitoring the torque reference with
the analog monitor until the ripple of torque reference
monitor's waveform is minimized.
• Adjust the phase-U and phase-V offset amounts alter-
nately several times until these offsets are well balanced.
Step Display after Operation Keys Operation
1
Press the Key to view the main
menu for the utility function mode.
Use the
or Key to move
through the list and select Fn00F.
2
Press the
Key.
The display changes to the Fn00F exe-
cution display.
㧮㧮ޓޓޓޓޓ㧙㧲㨁㧺㧯㨀㧵㧻㧺㧙
㧲㨚㧜㧝㧞㧦㧿㨛㨒㨠ޓ㨂㨑㨞
㧲㨚㧜㧝㧝㧦㧹㨛㨠㨛㨞ޓ㧵㨚㨒㨛
㧲㨚㧜㧝㧜㧦㧼㨞㨙ޓ㧼㨞㨛㨠㨑㨏㨠
㧲㨚㧜㧜㧲㧦㧯㨡㨞ޓ㧹㨍㨚㨡㧭㨐㨖
㧮㧮
㧹㨍㨚㨡㨍㨘ޓ㧻㨒㨒㨟㨑㨠㧙㧭㧰㧶
㨆㧭㧰㧶㧵㨁㧩ޓ㧜㧜㧜㧜㧥
ޓ㨛㨒ޓ㧹㨛㨠㨛㨞ޓ㧯㨡㨞㨞㨑㨚㨠
㨆㧭㧰㧶㧵㨂㧩ޓ㧜㧜㧜㧜㧢
To Next Page
