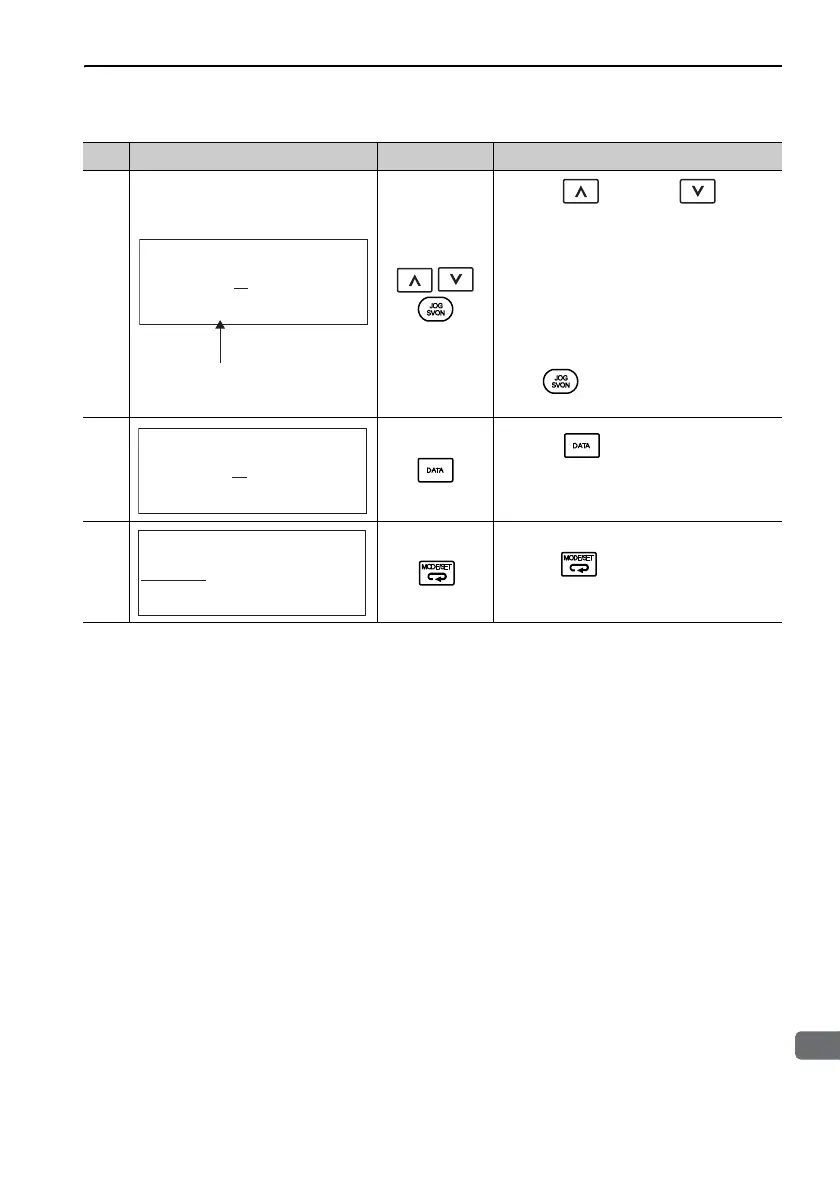

3.2 Operations
3-59
9
head1
3
Utility Function Mode
Note: If the rigidity level is changed, the automatically set notch filter will be canceled. If
vibration occurs, however, the notch filter will be set again automatically.
4
Press the Key or the Key to
select the rigidity level.
Select the rigidity level from 0 to 4. The
larger the value, the higher the gain is and
the better response performance will be.
(The factory setting is 4.)
Notes:
Vibration may occur if the rigidity level
is too high. Lower the rigidity level if
vibration occurs.
If a high-frequency noise is heard, press
the
Key to automatically set a
notch filter to the vibration frequency.
5
Press the
Key. “DONE” will flash
for approximately two seconds and then
“RUN” will be displayed. The settings are
saved in the SERVOPACK.
6
Press the Key. The display returns to
the main menu of the utility function mode.
(cont’d)
Step Display after Operation Keys Operation
㧾㨁㧺 㨀㨡㨚㨑㧸㨢㨘㧿㨑㨠

ޓ㧸㨑㨢㨑㨘㧩
ޓޓޓޓޓ㧺㧲㧞
2nd notch filter
㧾㨁㧺 㨀㨡㨚㨑㧸㨢㨘㧿㨑㨠


ޓ㧸㨑㨢㨑㨘㧩㧠
㧾㨁㧺㧲㨁㧺㧯㨀㧵㧻
㧲㨚㧜㧟㧜
㧲㨚㧞㧜㧜
㧲㨚㧞㧜㧝
㧲㨚㧞㧜㧞
