12.8 H: Terminal Function Selection
656 YASKAWA SIEPC71061753C GA500 Technical Manual
■ 2: Speed Agree 1
Setting Value Function Description
2 Speed Agree 1
The terminal activates when the output frequency is in the range of the frequency reference ± L4-02 [Speed Agree Detection
Width].
Note:
The detection function operates in the two motor rotation directions.

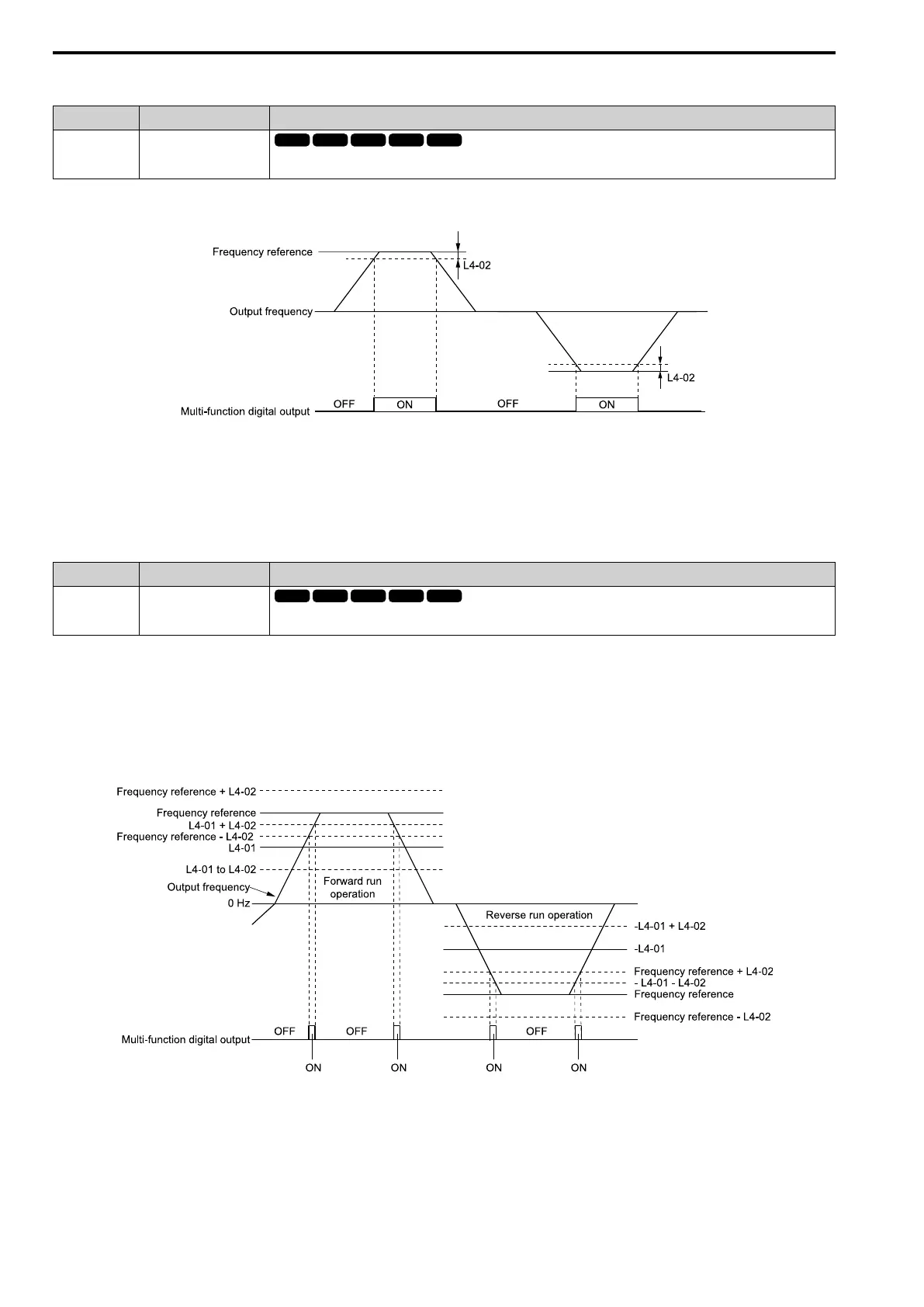

Figure 12.79 Speed Agree 1 Time Chart
ON : The output frequency is in the range of “frequency reference ± L4-02”.
OFF : The output frequency does not align with the frequency reference although the drive is
running.
■ 3: User-Set Speed Agree 1
Setting Value Function Description
3 User-Set Speed Agree 1
The terminal activates when the output frequency is in the range of L4-01 [Speed Agree Detection Level] ± L4-02 [Speed Agree
Detection Width] and in the range of the frequency reference ± L4-02.
Note:
The detection function operates in the two motor rotation directions. The drive uses the L4-01 value as the forward/reverse detection
level.
ON : The output frequency is in the range of “L4-01 ± L4-02” and the range of frequency
reference ± L4-02.
OFF : The output frequency is not in the range of “L4-01 ± L4-02” nor the range of frequency
reference ± L4-02.
Figure 12.80 User-Defined Speed Agree 1 Time Chart
