■ 5: Accel/Decel Time Gain
Setting Value Function Description
5 Accel/Decel Time Gain
Enters a signal to adjust the gain used for C1-01 to C1-08 [Acceleration/Deceleration Times 1 to 4] and C1-09 [Fast Stop Time]
when the full scale analog signal (10 V or 20 mA) is 100%.
When you enable C1-01 [Acceleration Time 1], the acceleration time is:
Acceleration Time 1 = Setting value of C1-01 × acceleration and deceleration time gain / 100

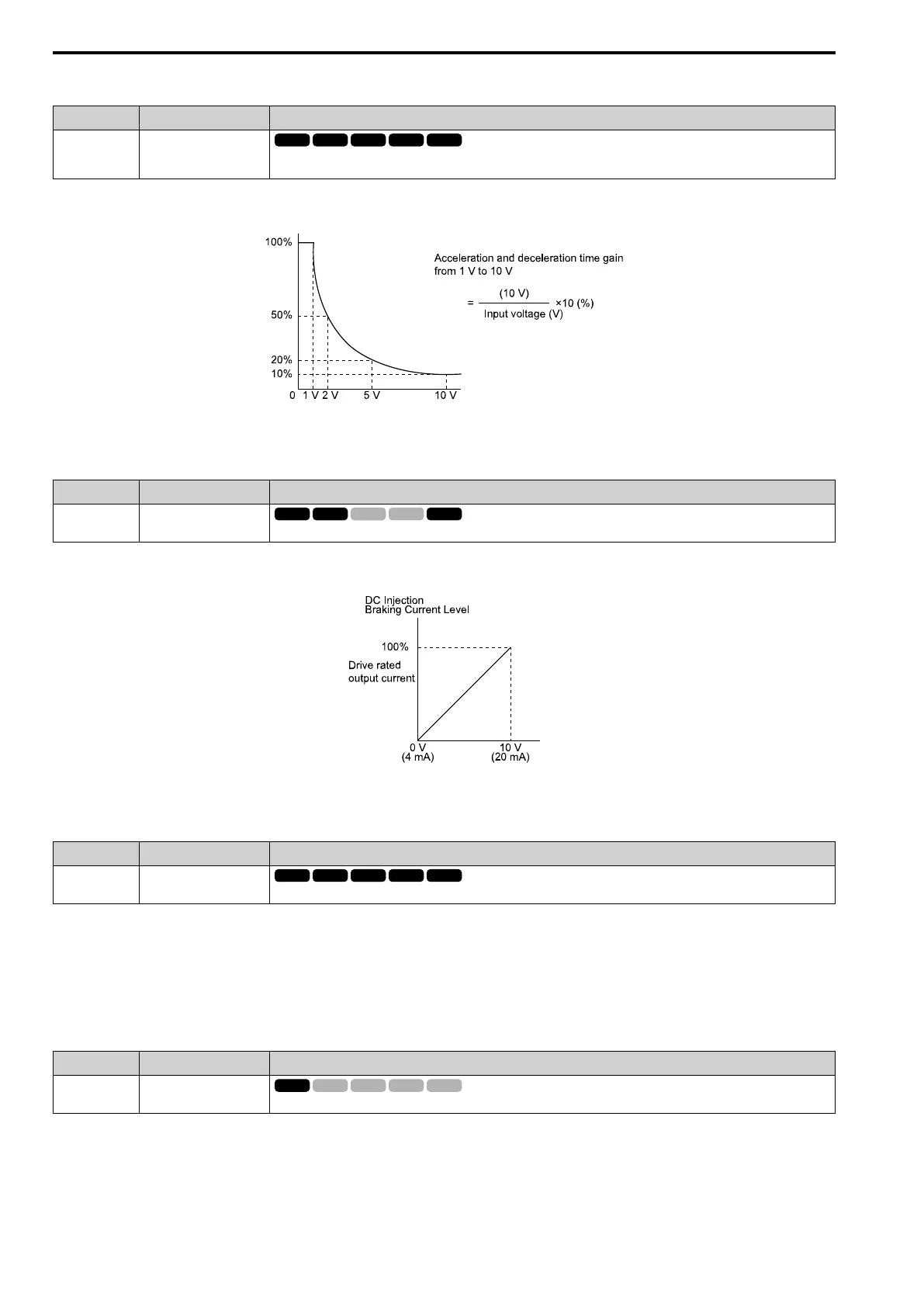

Figure 12.93 Acceleration/Deceleration Time Gain through Analog Input
■ 6: DC Injection Braking Current
Setting Value Function Description
6 DC Injection Braking
Current
Enters a signal to adjust the current level used for DC Injection Braking when the drive rated output current is 100%.
Note:
When you set this function, it will disable the setting value of b2-02 [DC Injection Braking Current].
Figure 12.94 DC Injection Braking Current through Analog Input
■ 7: Torque Detection Level
Setting Value Function Description
7 Torque Detection Level
Enters a signal to adjust the overtorque/undertorque detection level.
When A1-02 = 0, 5 [Control Method Selection = V/f, OLV/PM], the drive rated current is 100%. When A1-02 = 2,
6, 8 [OLV, AOLV/PM, or EZOLV], the motor rated current is 100%.
Note:
Use this function with L6-01 [Torque Detection Selection 1]. This parameter functions as an alternative to L6-02 [Torque Detection
Level 1].
■ 8: Stall Prevent Level during Run
Setting Value Function Description
8 Stall Prevent Level during
Run
Enters a signal to adjust the stall prevention level during run if the drive rated current is 100%.
Note:
The drive will use the smaller value of these values for Stall Prevent Level during Run:
• Multi-function analog input terminal analog input value
• L3-06 [Stall Prevent Level during Run]
