3.3 Main Circuit Wiring
72 YASKAWA SIEPC71061753C GA500 Technical Manual

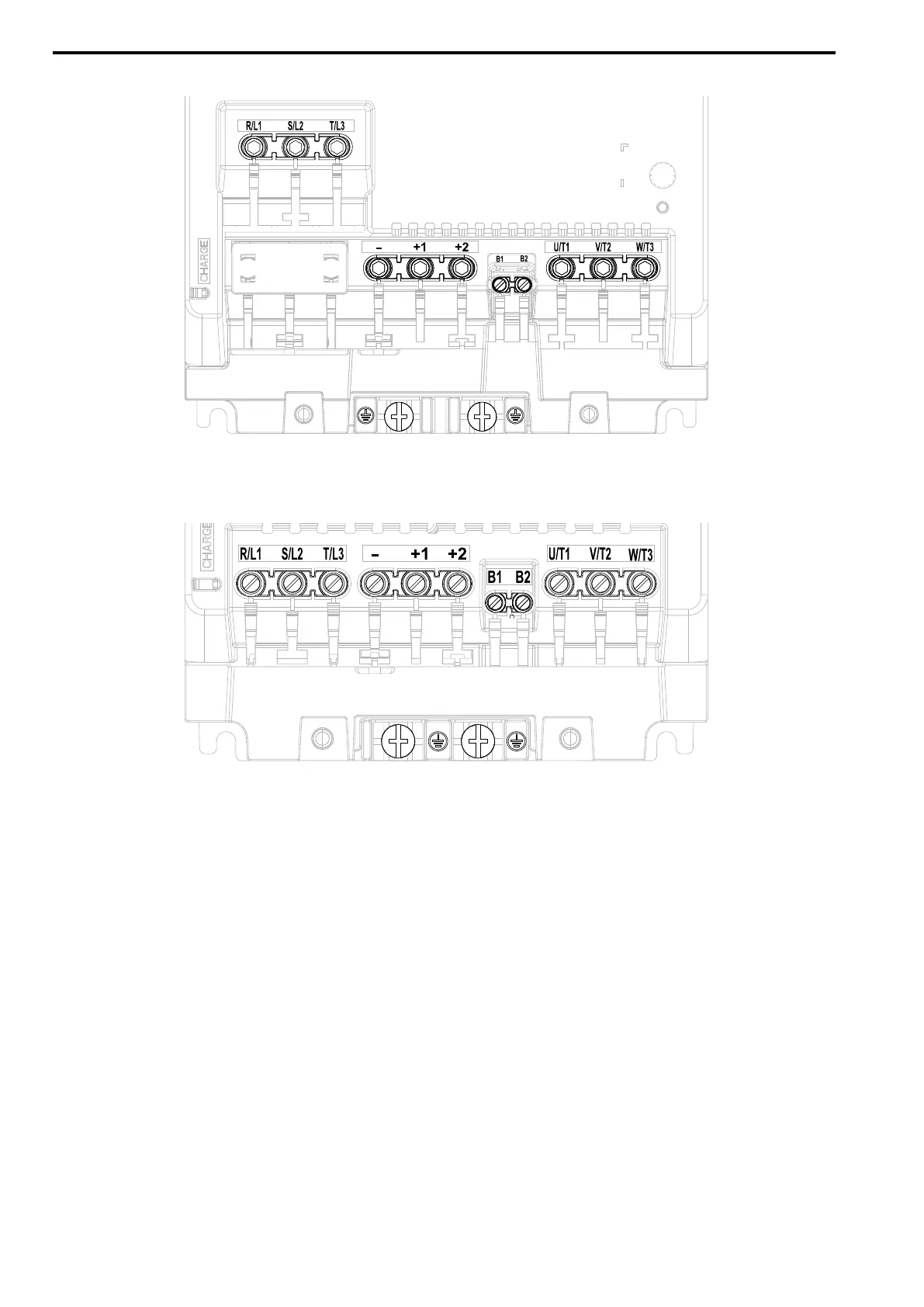

Figure 3.21 Configuration of Main Circuit Terminal Block (Three-Phase, With a Built-in EMC Filter)
Figure 3.22 Configuration of Main Circuit Terminal Block (Three-Phase, Without a Built-in EMC Filter)
