12.11 o: Keypad-Related Settings
758 YASKAWA SIEPC71061753C GA500 Technical Manual

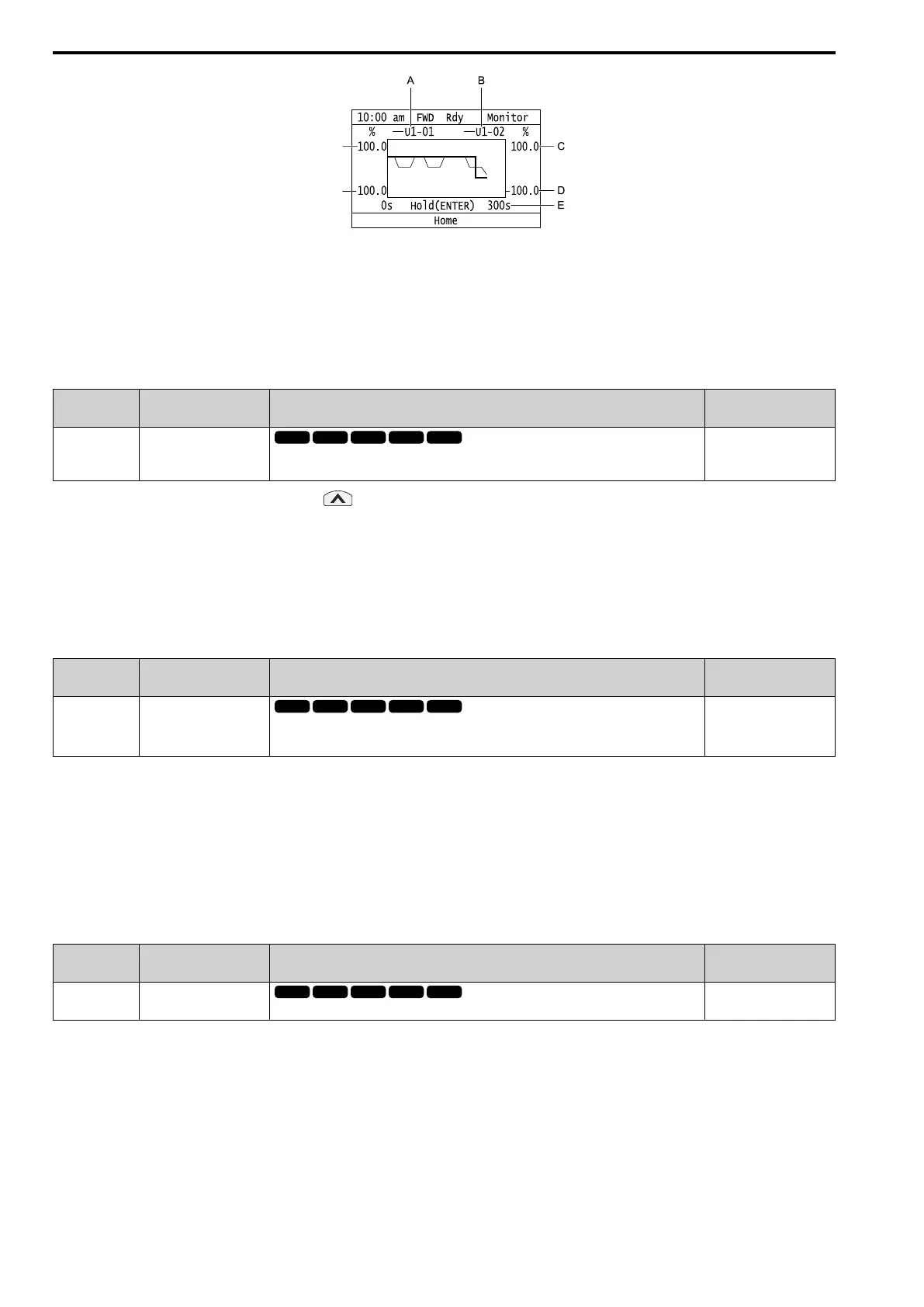

A - Set Ux-xx [Monitors] (Monitor 1) to o1-24.
B - Set Ux-xx [Monitors] (Monitor 2) to o1-25.
C - Set the maximum value of Monitor 2 to o1-50.
D - Set the minimum value of Monitor 2 to o1-49.
E - Set the time scale to o1-51.
F - Set the minimum value of Monitor 1 to o1-47.
G - Set the maximum value of Monitor 1 to o1-48.
Figure 12.136 Trend Plot Display
■ o1-01: User Monitor Selection
No.
(Hex.)
Name Description
Default
(Range)
o1-01
(0500)
RUN
User Monitor Selection
Sets the U monitor for the Drive Mode. This parameter is only available with an LED keypad.
106
(104 - 855)
When the drive is in Drive Mode, push on the keypad to cycle through this data: frequency reference →
rotational direction → output frequency → output current → o1-01 selection.
Set the x-xx part of Ux-xx that is shown in the fifth position in Drive Mode. For example, to show U1-05 [Motor
Speed], set o1-01 = 105.
Note:
The monitors that you can select are different for different control methods.
■ o1-02: Monitor Selection at Power-up
No.
(Hex.)
Name Description
Default
(Range)
o1-02
(0501)
RUN
Monitor Selection at Power-
up
Sets the monitor item that the keypad screen shows after you energize the drive. Refer to “U:
Monitors” for information about the monitor items that the keypad screen can show. This
parameter is only available with an LED keypad.
1
(1 - 5)
1 : Frequency Reference (U1-01)
2 : Direction
3 : Output Frequency (U1-02)
4 : Output Current (U1-03)
5 : User Monitor (o1-01)
Shows the monitor item selected in o1-01 [User Monitor Selection].
■ o1-03: Frequency Display Unit Selection
No.
(Hex.)
Name Description
Default
(Range)
o1-03
(0502)
Frequency Display Unit
Selection
Sets the display units for the frequency reference and output frequency.
Determined by A1-02
(0 - 3)
Note:
• Select the setting unit of these parameters:
–d1-01 to d1-17 [Reference 1 to 17]
–U1-01 [Frequency Reference]
–U1-02 [Output Frequency]
–U1-05 [Motor Speed]
–U1-16 [SFS Output Frequency]
–U4-14 [PeakHold Output Freq]
• For monitor 2, the setting value is always 0 [Hz Unit].
