5 Installation Procedure
14 YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual
n Procedure A
This section describes the procedure for installing and wiring options on 1000-series drives.
Prepare the Drive for the Option
Before beginning the installation procedure:
1. Wire the drive and make the proper connections to drive terminals according to the manual
packaged with the drive.
2. Verify that the drive functions normally.
Refer to Figure 2 for an exploded view of the drive with the option and related components
for reference in the installation procedure.

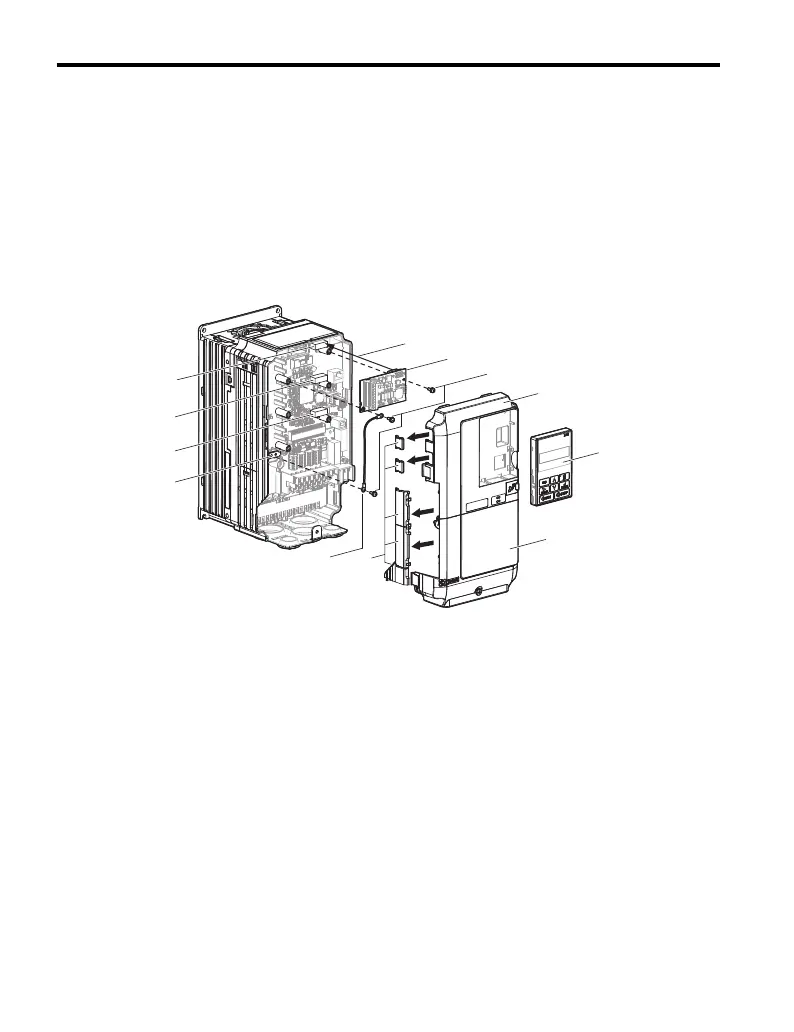

Figure 2
Figure 2 Drive Components with Option
A – Insertion point for CN5 H – Ground wire
B – Option card I – Drive grounding terminal (FE)
C – Included screws J – Connector CN5-A
(Not available for PG option installation.)
D – Front cover
E – Digital operator K – Connector CN5-B
F – Terminal cover L – Connector CN5-C
G – Removable tabs for wire routing
TOBP_C730600_75B_1_0_E.book 14 ページ ２０１７年２月１７日 金曜日 午後３時２分
