5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual 23
n Procedure B
This section describes the procedure for installing and wiring options on GA700, CR700,
and CH700 drives.
Prepare the Drive for the Option
Before beginning the installation procedure:
1. Wire the drive and make the proper connections to drive terminals according to the manual
packaged with the drive.
2. Verify that the drive functions normally.
Refer to Figure 12 for an exploded view of the drive with the option and related
components for reference in the installation procedure.

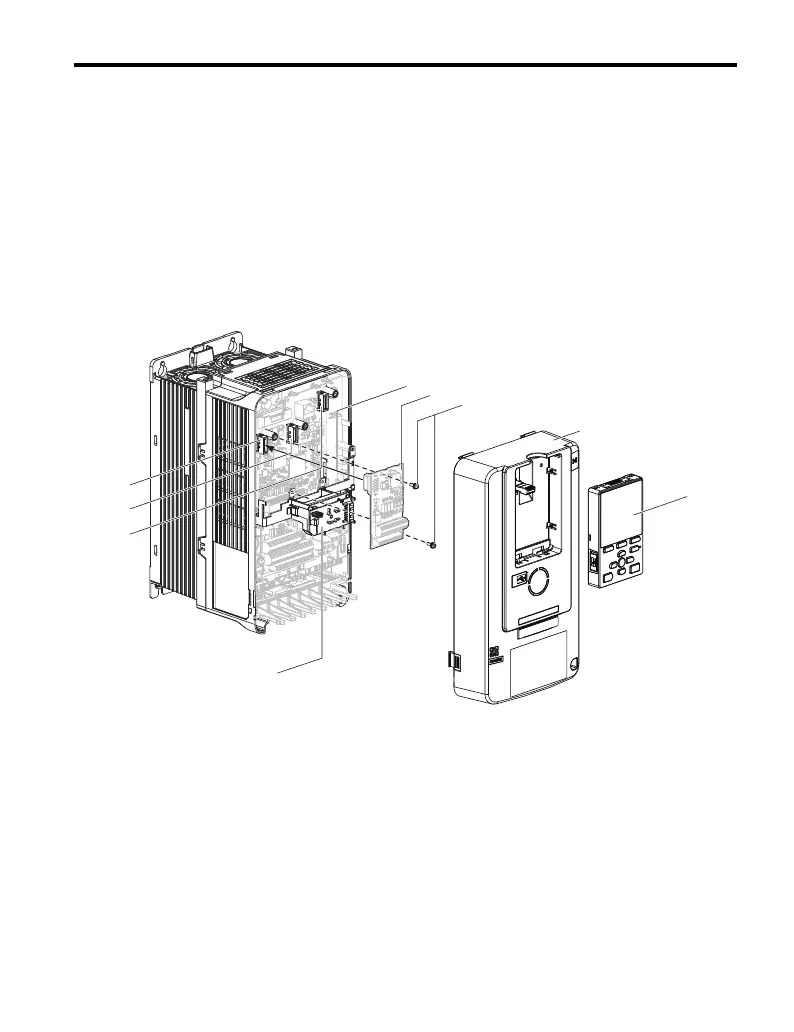

Figure 12
Figure 12 Drive Components with Option
A – Insertion point for CN5
connector
F – LED Status Ring board
G – Connector CN5-A
(Not available for PG option installation.)B – PG-B3 option
C – Included screws H – Connector CN5-B
D – Drive front cover I – Connector CN5-C
E – Keypad
C
I
H
G
F
B
A
D
E
