YASKAWA S Series User Manual

Servodrives Dimensional Drawings
Servomotor
Model
Servomotor End Connector
Receptacle L-shaped Plug
Straight Plug
Cable Clamp
SGMS- 10AEA
15A MA
20A EA
MS3102A20-15P MS3108B20-15S
MS3106B20-15S MS3057-12A
30A EA
40A MA
50A EA
MS3102A24-10P
MS3108B24-10S
MS3106B24-10S MS3057-16A
SGMG- 05A MA
09AEA
13A EA
MS3102A20-15P MS3108B20-15S MS3106B20-15S
MS3057-12A
20ANA
30AEA
44AEA
MS3102A24-10P MS3108B24-10S MS3106B24-10S
MS3057-16A
55AEA
75AEA
MAMA
1 EAIA
MS3102A32-17P
MS3102A1OSL-3P
MS3108B32-17S
MS3108B1OSL-3S
MS3106B32-17S
MS3106A10SL-3S
MS3057-20A
MS3057-4A
SGMG- 03AEB
06AEB
09A E B
MS3102A20-15P MS3108B20-15S
MS3106B20-15S MS3057-12A
12AEB
20AEB
30AEB
MS3102A24-10P
MS3108B24-10S
MS3106B24-10S MS3057-16A
44A1B
60A E B
MS3102A32-17P
MS3102A1OSL-3P
MS3108B32-17S
MS3108B 10SL-3S
MS3106B32-17S
MS3106A10SL-3S
MS3057-20A
MS3057-4A
SGMD- 22AEA
MS3102A24-10P MS3108B24-10S MS3106B24-10S
MS3057-16A
32AE A
40A EA

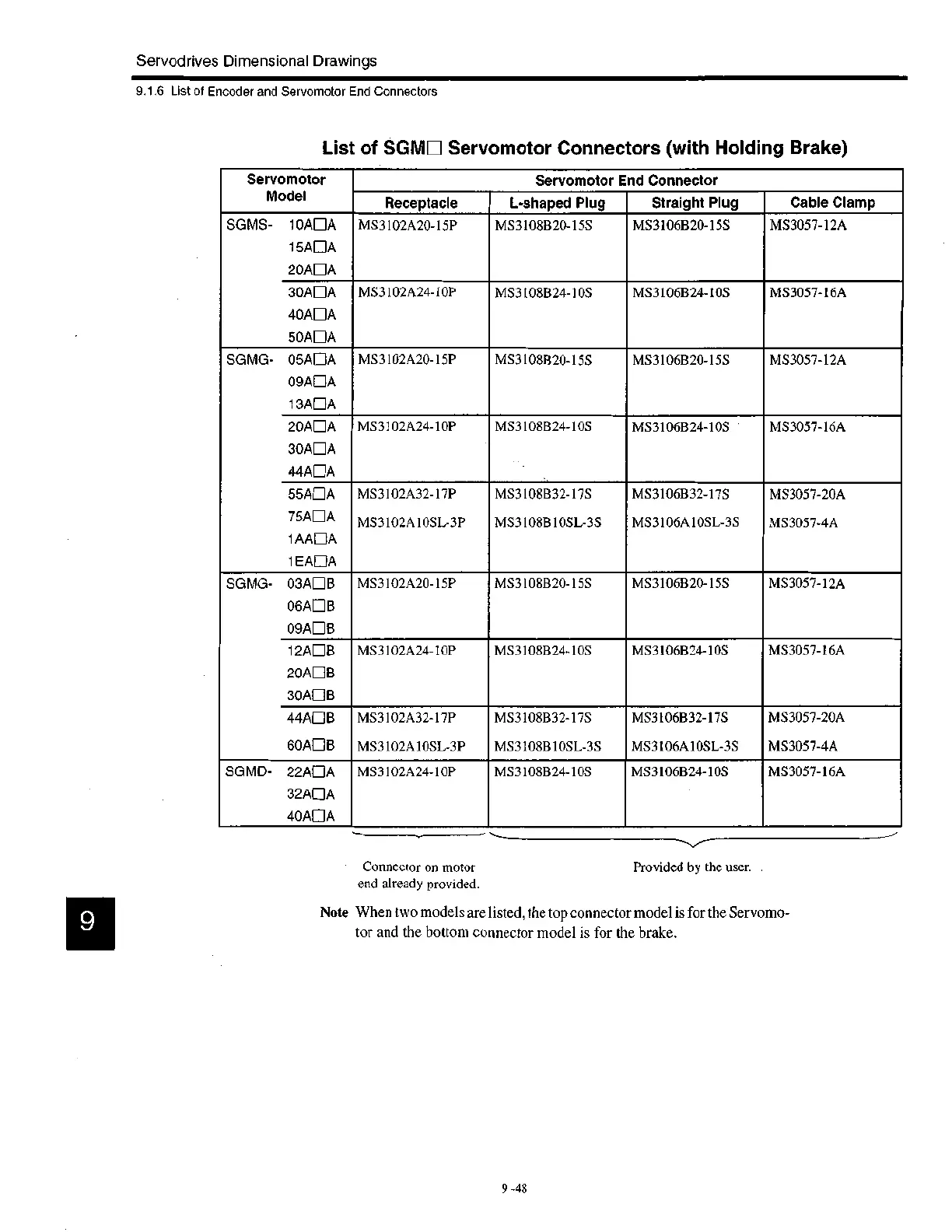

9.1.6 List of Encoder and Servomotor End Connectors
List of SGMIII Servomotor Connectors (with Holding Brake)
Connector on motor
end already provided.
Provided by the user.
Note When two models are listed, the top connector model is for the Servomo-
tor and the bottom connector model is for the brake.
9 -48
