9.6 Peripheral Devices
AC Input
Brake
100 V
200 V
Blue, White
Yellow, White Red, Black
Yellow
Diode
Red
Surge
Suppressor
AC Side
Surge Suppressor
DC (Brake) Side
Diode
White
Black
Specifications
Lead Wire Length: 500 mm (19.69 in) each
Max. Ambient Temperature: 60°C
Lead Wires: Color coded

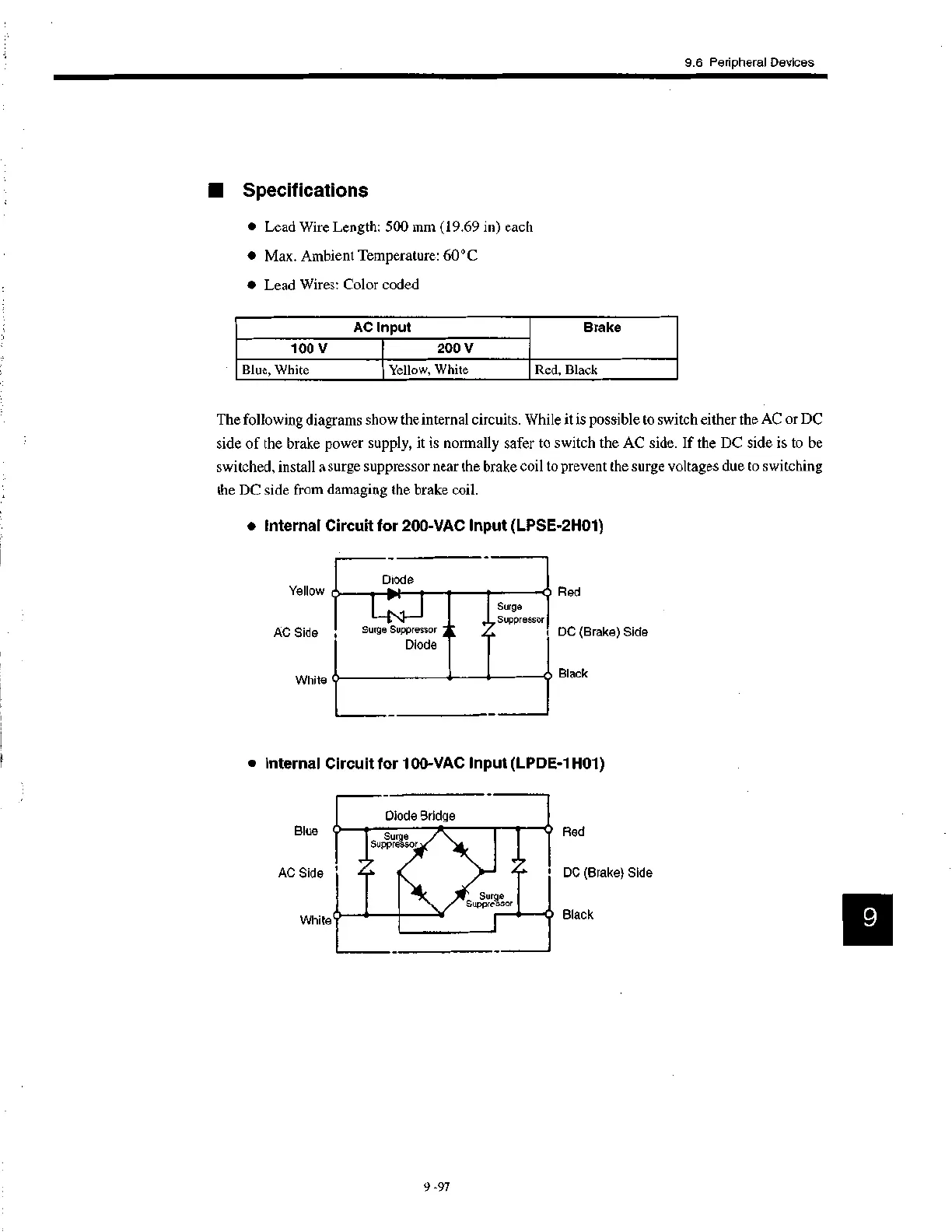

The following diagrams show the internal circuits. While it is possible to switch either the AC or DC
side of the brake power supply, it is normally safer to switch the AC side. If the DC side is to be
switched, install a surge suppressor near the brake coil to prevent the surge voltages due to switching
the DC side from damaging the brake coil.
Internal Circuit for 200-VAC Input (LPSE-2H01)
Internal Circuit for 100-VAC Input (LPDE-1H01)
Blue
AC Side
White
Red
DC (Brake) Side
Black
9
