APPLICATIONS OF Σ-SERIES PRODUCTS
3.7.3 Using Positioning Complete Signalcont.
130
Output → COIN 1CN-8
Positioning Complete Output For Position
Control Only
For position control (SGDA-
jjj
P) only.

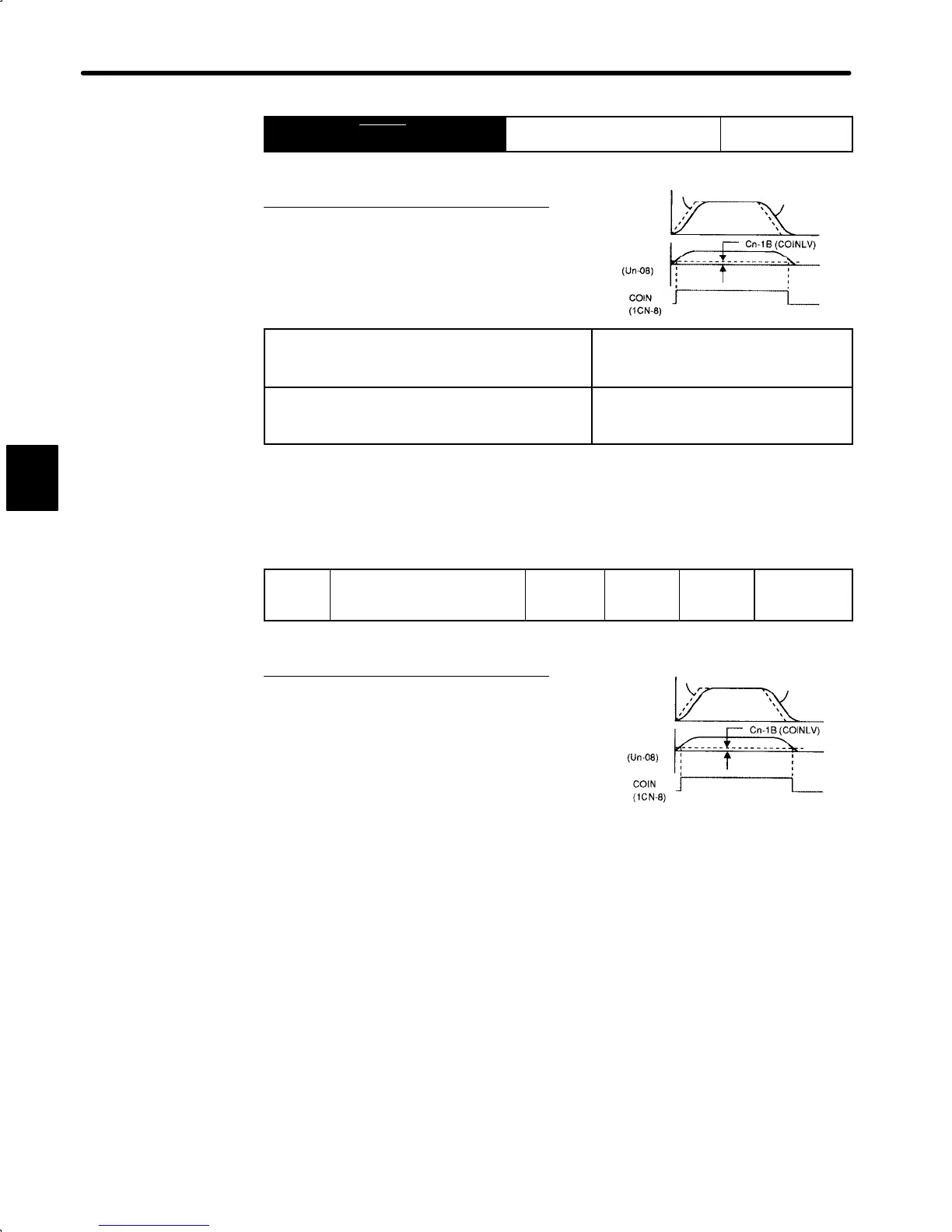

This output signal indicates that motor operation
is complete during position control. The host con-
troller uses this signal as an interlock to confirm
that positioning is complete.
ON
status:
Circuit between 1CN-8 and 1CN-10 is
closed.
1CN-8 is at low level.
Positioning is complete (position error is
below the preset value).
OFF
status:
Circuit between 1CN-8 and 1CN-10 is
open.
1CN-8 is at high level.
Positioning is not complete (position
error is over the preset value).
Preset Value: Cn-1B (positioning complete range)
2) Set the number of error pulses in the following user constant to adjust output timing of
COIN (positioning complete output).
Cn-1B
COINLV Positioning
Complete
Range
Unit:
Reference
Unit
Setting
Range: 0
to 250
Factory
Setting: 1
For Position
Control Only
For position control (SGDA-
jjj
P) only.
This user constant is used to set output timing of
positioning complete signal (COIN, 1CN-8) to be
output when motor operation is complete after a
position reference pulse has been input.
Set the number of error pulses in terms of reference unit (the number of input pulses that
is defined using the electronic gear function).
If too large a value is set in this user constant, error may become too small when the mo-
tor runs at a low speed, causing COIN to be output continuously.
COINLV does not affect the final positioning accuracy.
3
Speed
Reference
Motor
Error
pulse
Error pulse
Speed
Reference
Motor
To Next Page
