44 YASKAWA ELECTRIC SIEP C730600 89C YASKAWA AC Drive Option SI-EP3 Technical Manual
9 Web Interface
9Web Interface
The web server interface to the drive option through port 80 allows management of diagnostic information through a
standard web browser. The available pages include:
•Home Page
• PROFINET Page
• Network Page
• Chart Page
• Email Alerts Page
• Parameter Access Page
• Settings Page
Access the web server interface by typing the IP address of the SI-EP3 option in a web browser address.
Example: "http://192.168.1.20"
The SI-EP3 IP Address is available using drive keypad to access Option Monitors U6-80 to U6-83. Refer to Table 8 for
details.
Home Page
The Home page shows the status of the drive and the I/O. It also shows identifying information about the drive and the
option card.
Figure 19

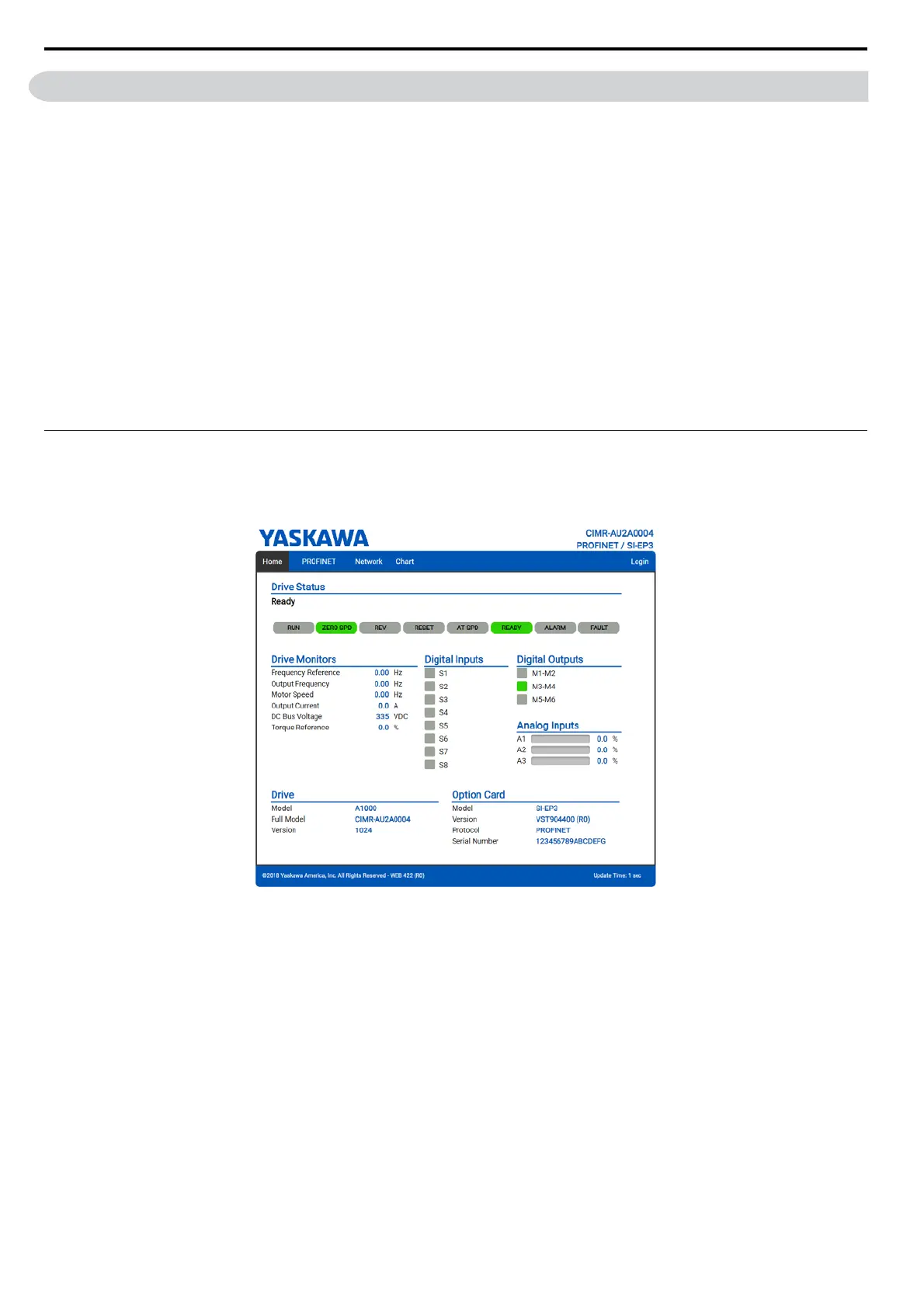

Figure 20 Home Page View
Note: The initial password is yaskawa. To change the password, open the Settings Page.
