4 Option Components
 PROFINET Option

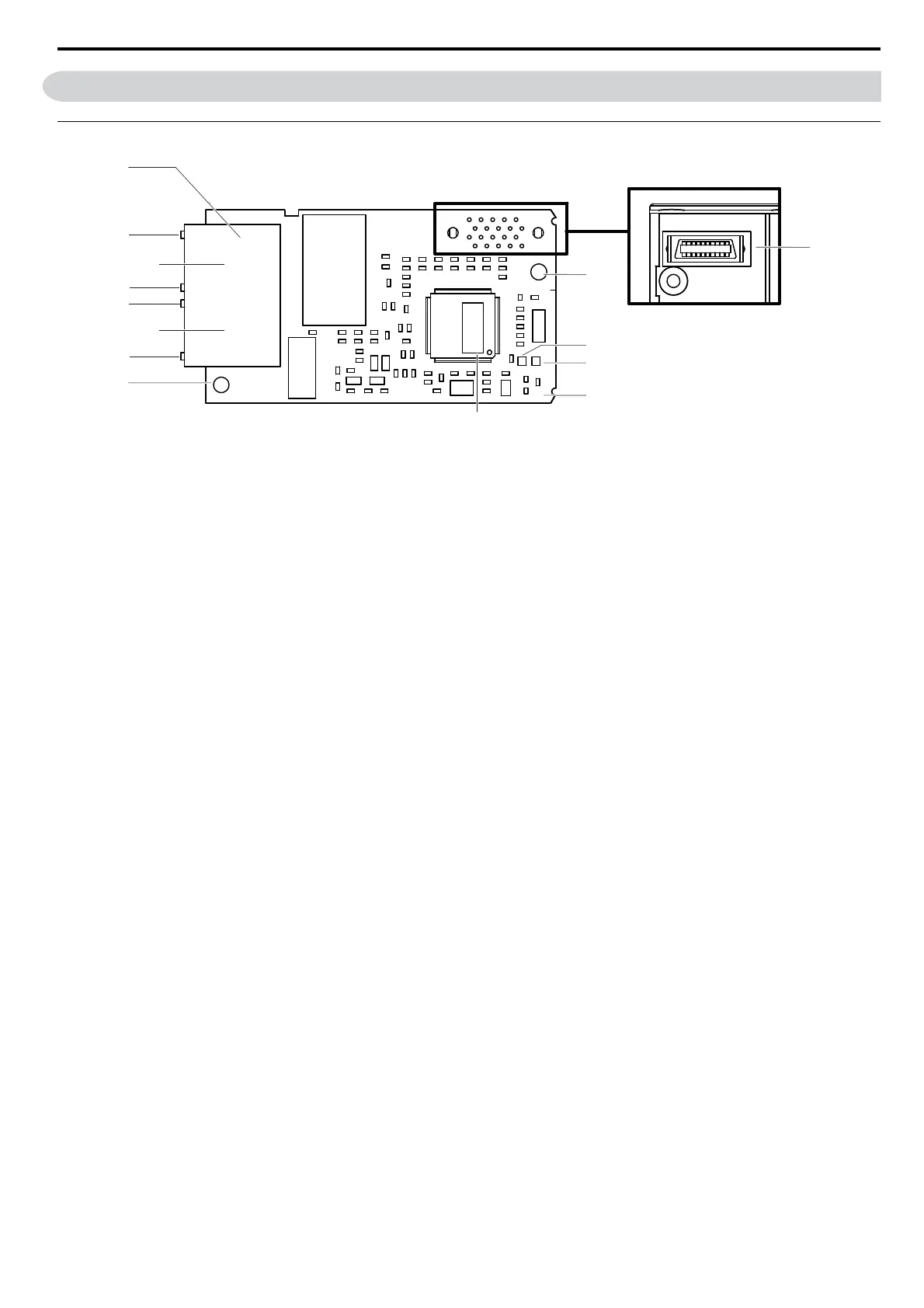

Figure 1
Figure 1 PROFINET Option Components
A – Option connector
<1> Refer to Option LED Display on page 10 for details on the LEDs.
<2> Connect the provided ground wire during installation. Installation on GA700 and GA800 drives does not require the ground
wire.
H – Port 1 LED (10/100)
<1>
B – Installation hole I – Port 1
C–LED (NS)
<1> J – Port 1 LED (LINK/ACT) <1>
D–LED (MS)
<1> K – Port 2 LED (10/100) <1>
E – PROFINET PCB L – Port 2
F – Software number label M – Port 2 LED (LINK/ACT)
<1>
G – Ground terminal (FE) and installation hole <2> N – PROFINET cable connection
E
G
A
N
M
K
H
J
L
I
B
C
D
F
Underside
