YASKAWA SI-EP3

5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 89D YASKAWA AC Drive Option SI-EP3 Installation Manual 23

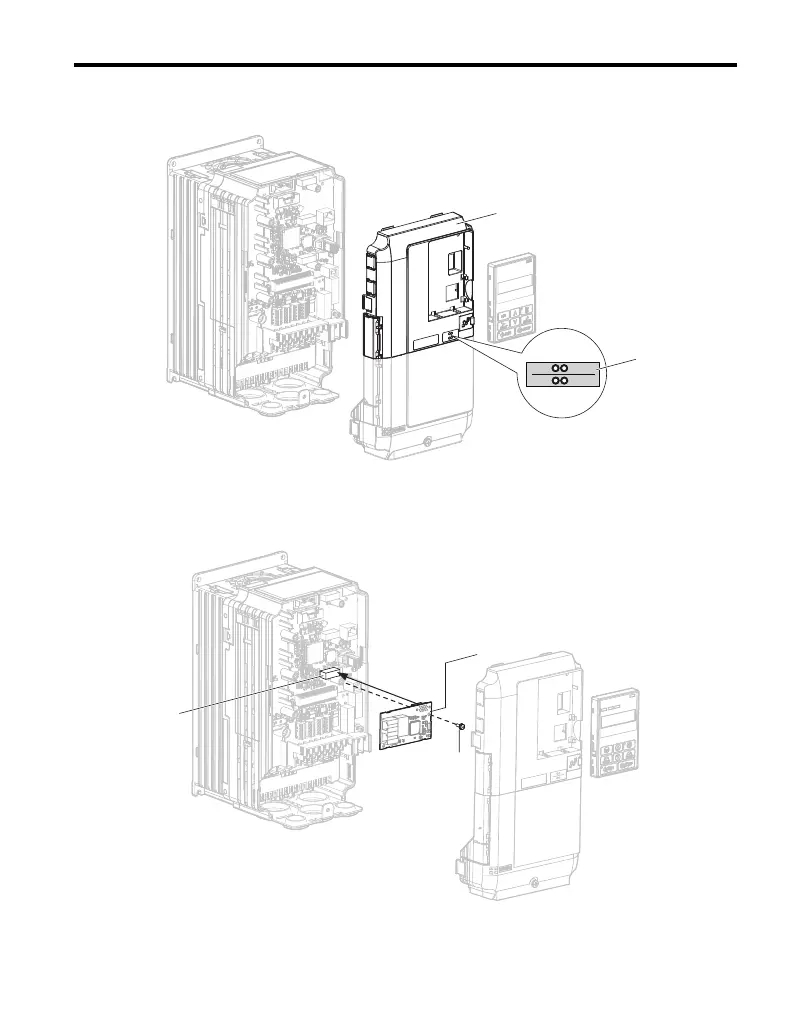

2. Affix the LED label (E) in the appropriate position on the drive front cover (C).
Figure 6
Figure 6 Affix the LED Label
3. Insert the option card (B) into the CN5-A (M) connector on the drive and fasten it
into place using one of the included screws (H). Tighten the screw to 0.5 to 0.6 Nm
(4.4 to 5.3 inlb).
Figure 7
Figure 7 Insert the Option
NS MS
C
E
A1000
NS
MS
M
H
B
A1000
