3 Receiving
3 Receiving
After receiving the option package:
1. Make sure that the option is not damaged and no parts are missing. Contact your sales
outlet if the option or other parts appear damaged.
NOTICE: Do not use damaged parts to connect the drive and the option. Failure to comply could damage
the drive and option.
2. Confirm that the model number on the option nameplate and the model listed in the
purchase order are the same. Refer to Figure 2 on page 14 for details. Contact the
distributor where the option was purchased or contact Yaskawa or a Yaskawa
representative about any problems with the option.
u Option Package Contents

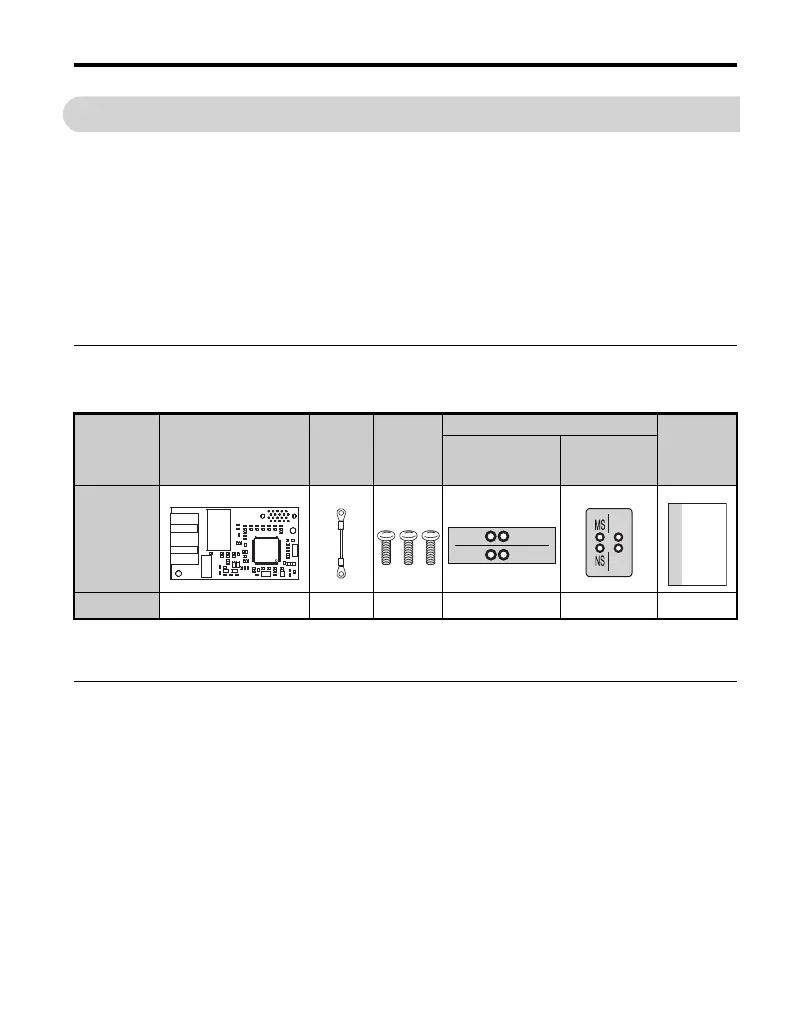

Table 2 Option Package Contents
u Installation Tools
• A Phillips screwdriver. Phillips screw sizes vary by drive capacity.
• A flat-blade screwdriver (blade depth: 0.4 mm (0.02 in), width: 2.5 mm (0.1 in)).
• A pair of diagonal cutting pliers.
• A small file or medium-grit sandpaper.
Description:
<1> GA700 and GA800 drives do not use the ground wire.
<2> GA700 and GA800 drives use two screws only.
Option
Ground
Wire
<1>
Screws
(M3)
LED Labels
Installation
Manual
1000-Series
GA500,
GA700, and
GA800
_
Quantity: 11
3
<2>
111
MANUAL
