4 Option Components
4 Option Components
u PROFINET Option
Figure 2

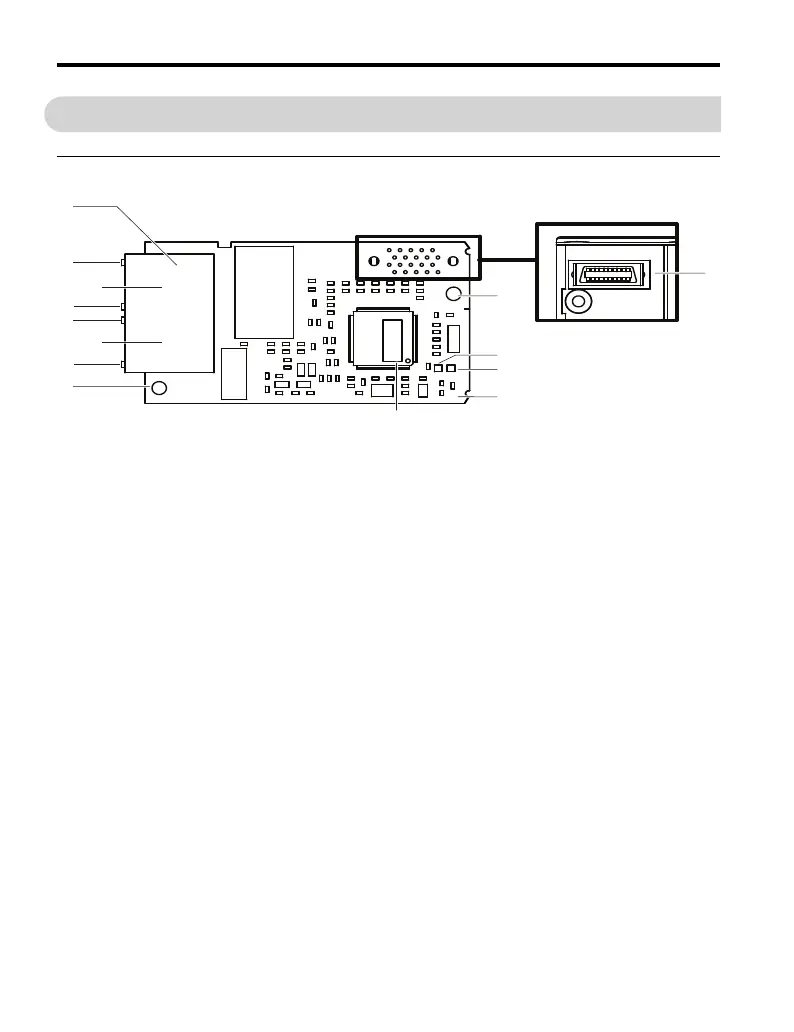

Figure 2 PROFINET Option Components
A – Option connector H – Port 1 LED (10/100)
<1>
B – Installation hole I – Port 1
C–LED (NS)
<1> J – Port 1 LED (LINK/ACT) <1>
<1> Refer to Option LED Display on page 15 for details on the LEDs.
<2> Connect the provided ground wire during installation. Installation on GA700 and GA800 drives does not require
the ground wire.
D–LED (MS)
<1> K – Port 2 LED (10/100) <1>
E – PROFINET PCB L – Port 2
F – Software number label M – Port 2 LED (LINK/ACT)
<1>
G – Ground terminal (FE) and
installation hole
<2>
N – PROFINET cable connection
E
G
A
N
M
K
H
J
L
I
B
C
D
F
Underside
