Appendix A Illustrated Parts List
A.2 Parts List
A-3
163475-1CD
163475-1CD
MHTH Postioner
SIGMA V

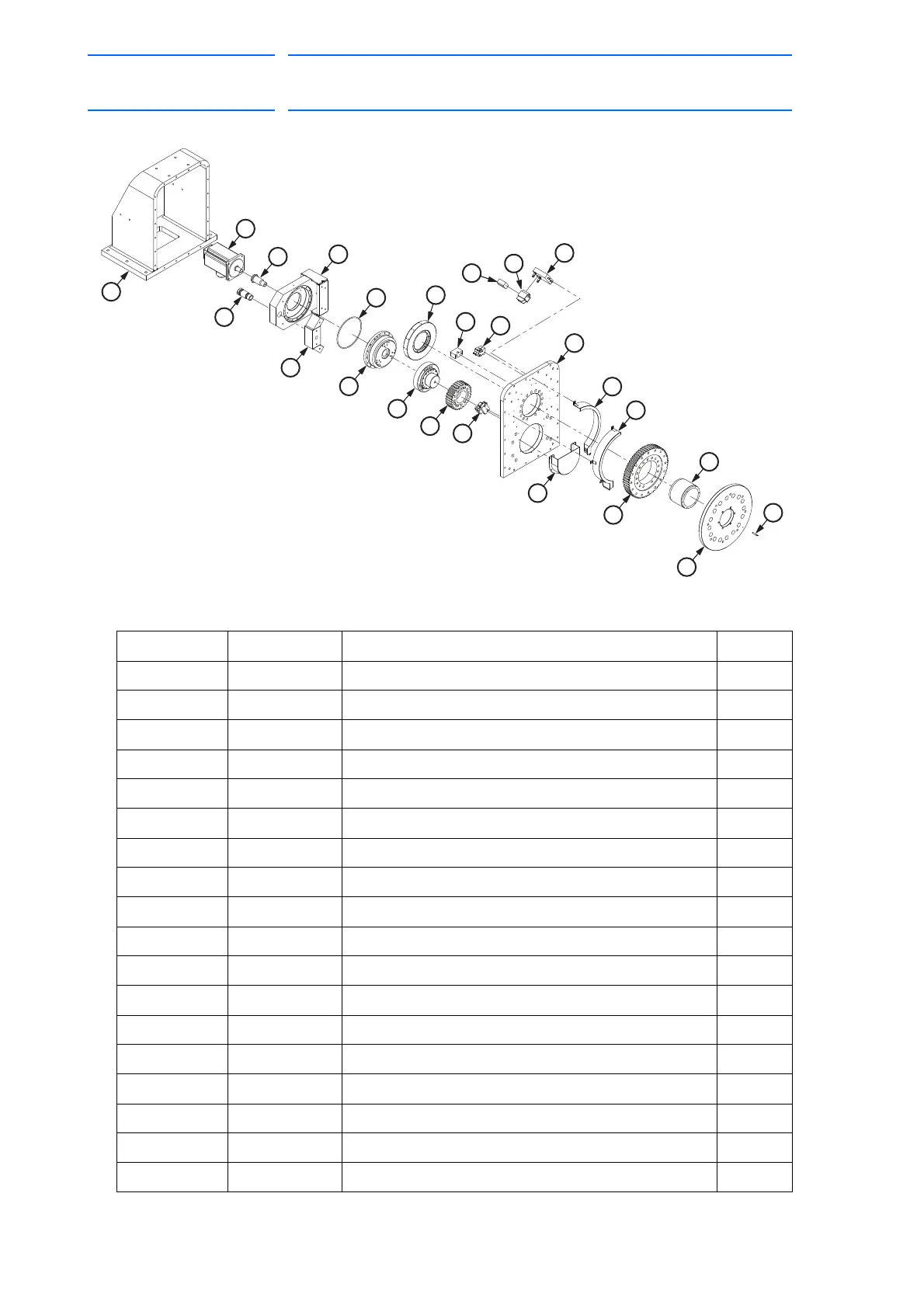

Fig. A-1: MHTH Exploded View
20
23
12
22
21
24
19
18
17
15
16
14
10
15
11
9
8
6
3
13
7
5
4
2
1
Table A-1: MHTH Parts List
Item Number P/N Description Qty
1 151346 HOUSING, WELDMENT, MHTH 1
2 156009-3 MOTOR, AC SERVO, SIGMA 5, 1.3KW 1
3 150655-1 SCREW, LEVELING ADJUSTER 1
4 141575-4 PINION, INPUT, 53:1, MHTH305 1
4.1 141575-3 PINION, INPUT, 101:1, MHTH605 1
4.2 141575-2 PINION, INPUT, 153:1,MHTH905 1
5 151347-1 PLATE, MTG, MAIN DRIVE, RV 1
6 151345-1 MOUNT, MTG PLATE, MAIN DRIVE, MHTH 1
7 139974-16 SEAL, ORING 1
8 151594-1 REDUCER, RV, HEADSTOCK, 53:1,MHTH305 1
8.1 151594-3 REDUCER, RV, HEADSTOCK, 101:1,MHTH605 1
8.2 151594-5 REDUCER, RV, HEADSTOCK, 153:1,MHTH905 1
9 163399-1 PLATE, GROUNDING BRUSH, MHTH 1
10 151494-1 SHAFT, GEAR INPUT, MAIN DRIVE, MHTH 1
11 151338-1 BLOCK, PUSHER, SPRING ASSEMBLY, MHTH 1
12 144371-1 BRUSH 1
13 144372-1 BRUSH HOLDER 1
14 151340-1 BRACKET, MOUNTING, BRUSH HOLDER 1
