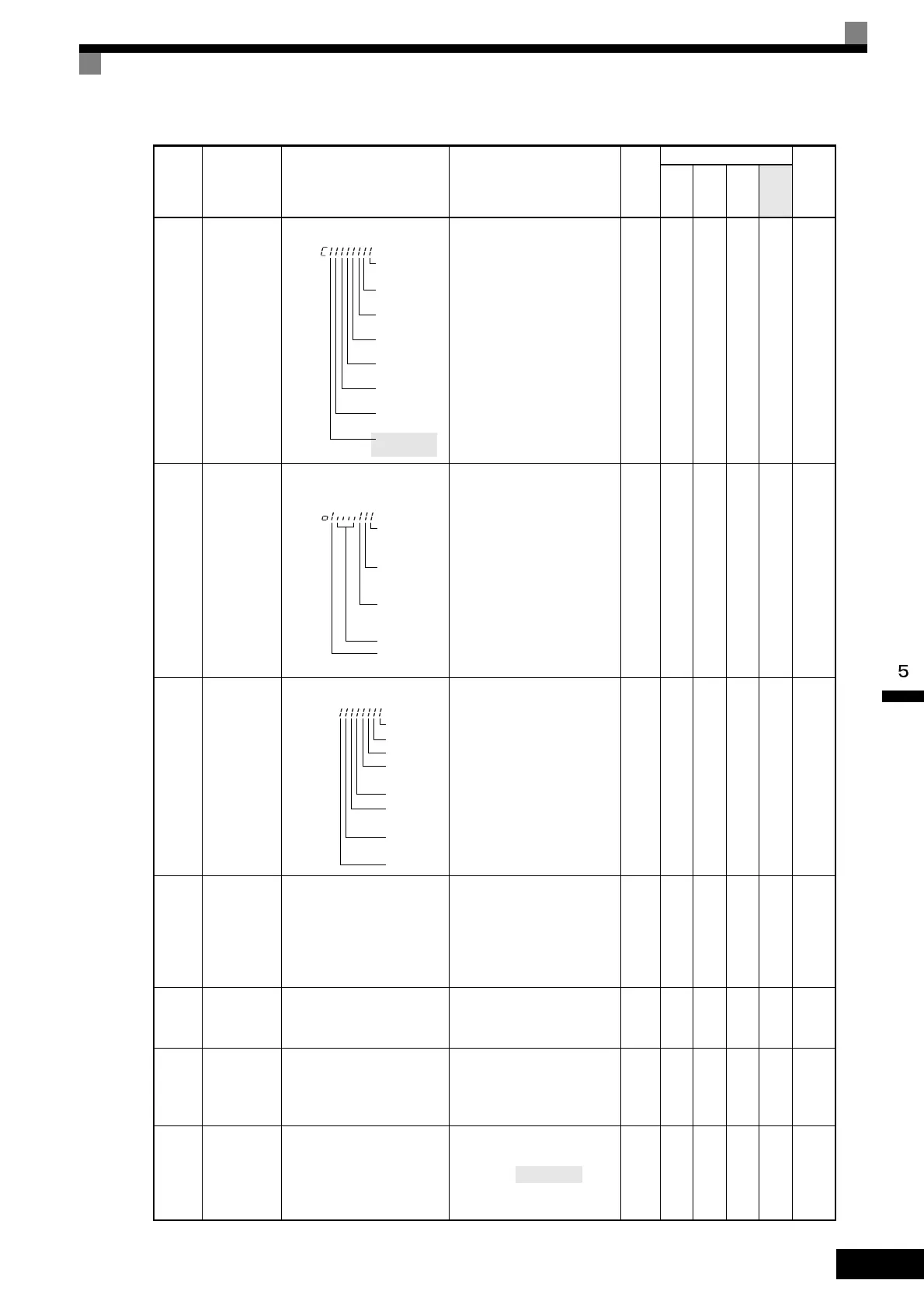

YASKAWA Varispeed f7 User Manual

User Constant Tables
5-75
Con-
stant
Number
Name Description
Output Signal Level Dur-
ing Multi-Function Analog
Output
Min.
Unit
Control Methods
MEMO
BUS
Regis-
ter
V/f
V/f
with
PG
Open
Loop
Vec-
tor
Flux
Vec-
tor
U1-10
Input termi-
nal status
Shows input ON/OFF status
(Cannot be output.) - A A A A 49H
U1-11
Output ter-
minal status
Shows output ON/OFF sta-
tus.
(Cannot be output.) - A A A A 4AH
U1-12
Operation
status
Inverter operating status.
(Cannot be output.) - A A A A 4BH
U1-13
Cumulative
operation
time
Monitors the total operat-
ing time of the Inverter.
The initial value and the
operating time/power ON
time selection can be set in
o2-07 and o2-08.
(Cannot be output.)
1
hr
AAAA4CH
U1-14
Software
No. (flash
memory)
(Manufacturer’s ID num-
ber)
(Cannot be output.) - A A A A 4DH
U1-15
Terminal
A1 input
voltage
Monitors the input voltage
of the voltage frequency
reference. An input of 10 V
corresponds to 100%.
10 V: 100% (10 V)
(0 to ± 10 V possible)
0.1% A A A A 4EH
U1-16
Terminal
A2 input
current
(voltage)
Monitors the input current
of the multi-function analog
input.
An input of 20 mA corre-
sponds to 100%.
20 mA: 100% (4 to 20 mA)
(0 to 10 V, pos-
sible)
0.1% A A A A 4FH
1: FWD command
(S1) is ON.
1: REV command
(S2) is ON.
1: Multi input 1
(S3) is ON.
1: Multi input 2
(S4) is ON.
1: Multi input 3
(S5) is ON.
1: Multi input 4
(S6) is ON.
1: Multi input 5
(S7) is ON.
1: Multi input 6
(S8) is ON.
U1-10=
U1-11=
1: Multi-function
contact output
(M1-M2) is ON.
1: Multi-funtion
contact output 1
(P1) is ON.
1: Multi-funtion
contact output 2
(P2) is ON.
Not used (always 0).
1: Error output
(MA/AB-MC) is ON.
1: Run
1: Zero speed
1: Reverse
1: Reset signal
input
1: Speed agree
1: Inverter
ready
1: Minor fault
1: Major fault
U1-12=
0 to ±10 V
