 Inverter Capacity Display
The voltage class and maximum applicable motor capacity for which
constants are stored in the Digital Operator are displayed.
Example: Displaying Voltage Class and Maximum Applicable Motor
Capacity for Inverter whose Constants are in EEPROM in Operator
* The following figure shows the Inverter Capacity Display

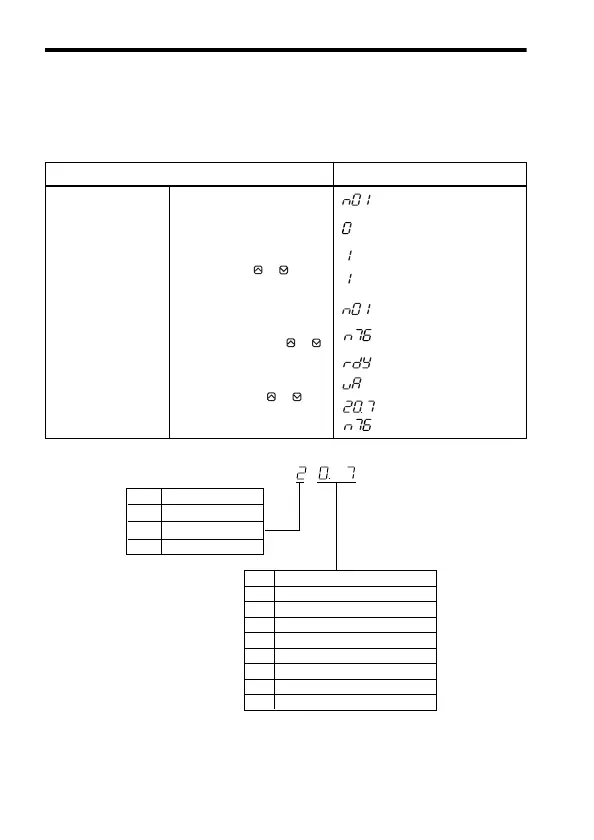

Explanation Operator Display
• Enable the setting
for constants n01 to
n79.
• Press DSPL to light [PRGM].
• Press ENTER to display the
set value.
• Change the set value to 4 by
pressing the or key.
• Press ENTER.
(May be a different constant No.)
(Lit)
(May be a different constant No.)
(Flashes)
(Lit for one second.)
↓
(The constant No. is displayed.)
• Execute Inverter
Capacity Display
(vA) using the Con-
stant Copy Function
Selection (n76).
• Change the constant No. to
n76 by pressing the or
key.
• Press ENTER to display the
set value.
• Change the set value to vA fy
by pressing the or key.
• Press ENTER.
• Press DSPL or ENTER.
(Lit)
(Lit)
(Lit) (For 20P7)*
(The constant No. is displayed.)
0.1
No.
0.2
0.4
0.1 kW
0.2 kW
0.4 kW
0.7
1.5
2.2
0.75 kW
1.5 kW
2.2 kW
3.0
3.7
3.7 kW
3.0 kW
Max. Applicable Motor Capacity
Voltage Class
Single-phase 200 V
Three-phase 200 V
Three-phase 400 V
b
2
4
