L-Anchor Plate
Despite the chiller-heater’s considerable
mass, it is sometimes required that the unit be
tied down or anchored in place, usually as part
of an applicable seismic code. Follow code
requirements in all such cases.
Yazaki chiller-heaters are designed to use L-
anchor plates to secure them to their respective
foundations. These anchor plates are included
in the accessories box with each K-Series
chiller-heater.
There are holes in the base rail of the unit
for use in bolting the L-anchor plate to the unit.
Anchoring the L-anchor plate to the foundation
should be done in accordance with the needs of

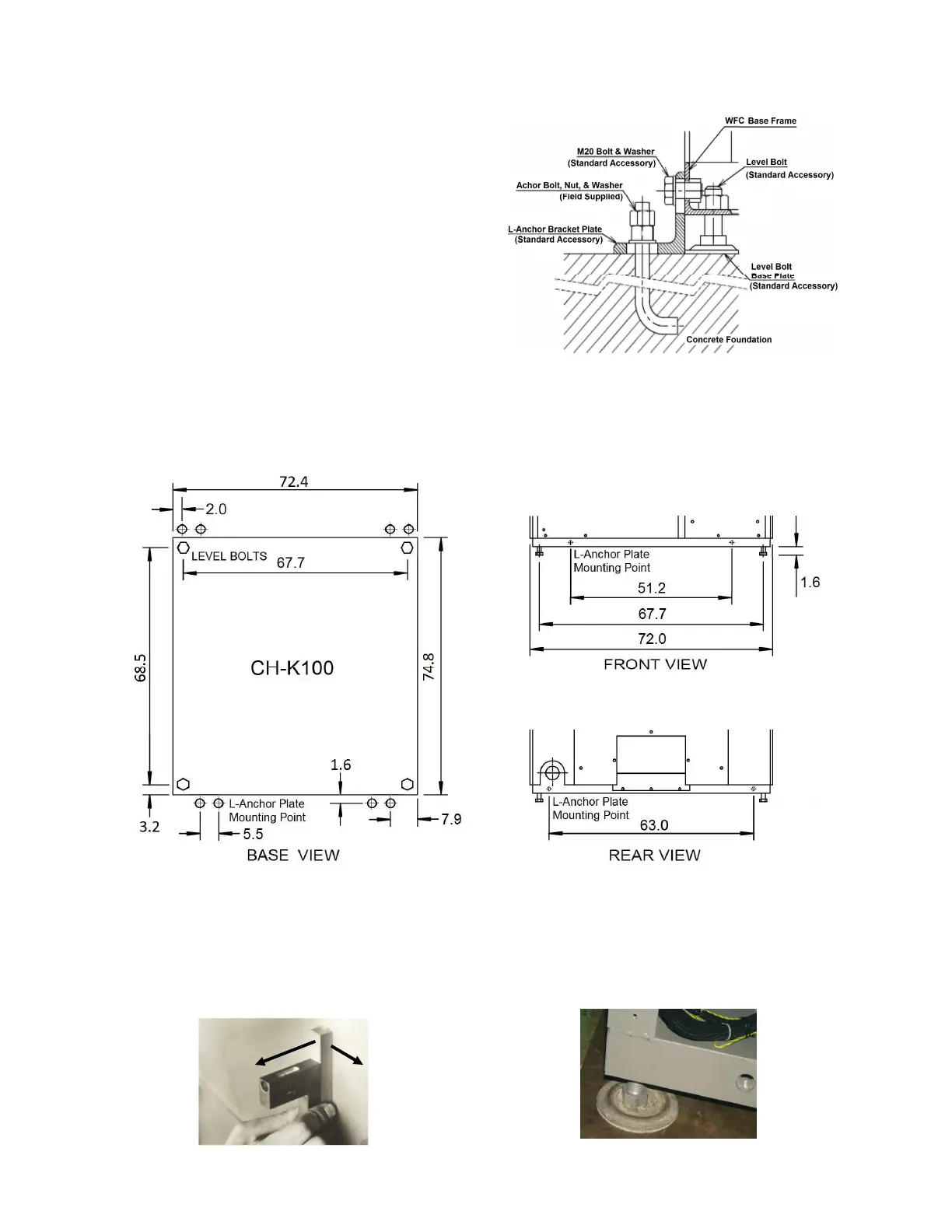

the site and dictates of code. The details of the
L-anchor plate follow.
CH-K Base Dimensions
LEVELING
CH-K series units must be level in order for
the fluids to be distributed properly over their
respective tube bundles. There is a level bar
mounted on the front of the machine. The unit
must be level to both the longitudinal and
transverse alignments.
In cases of multiple units installed side-by-
side, the units should all be level individually as
well as in respect to each other. It is essential
that all leveling be completed before any piping
connections are attempted.
