Yealink SIP-T29G User Manual

User Guide for the SIP-T29G IP Phone
132

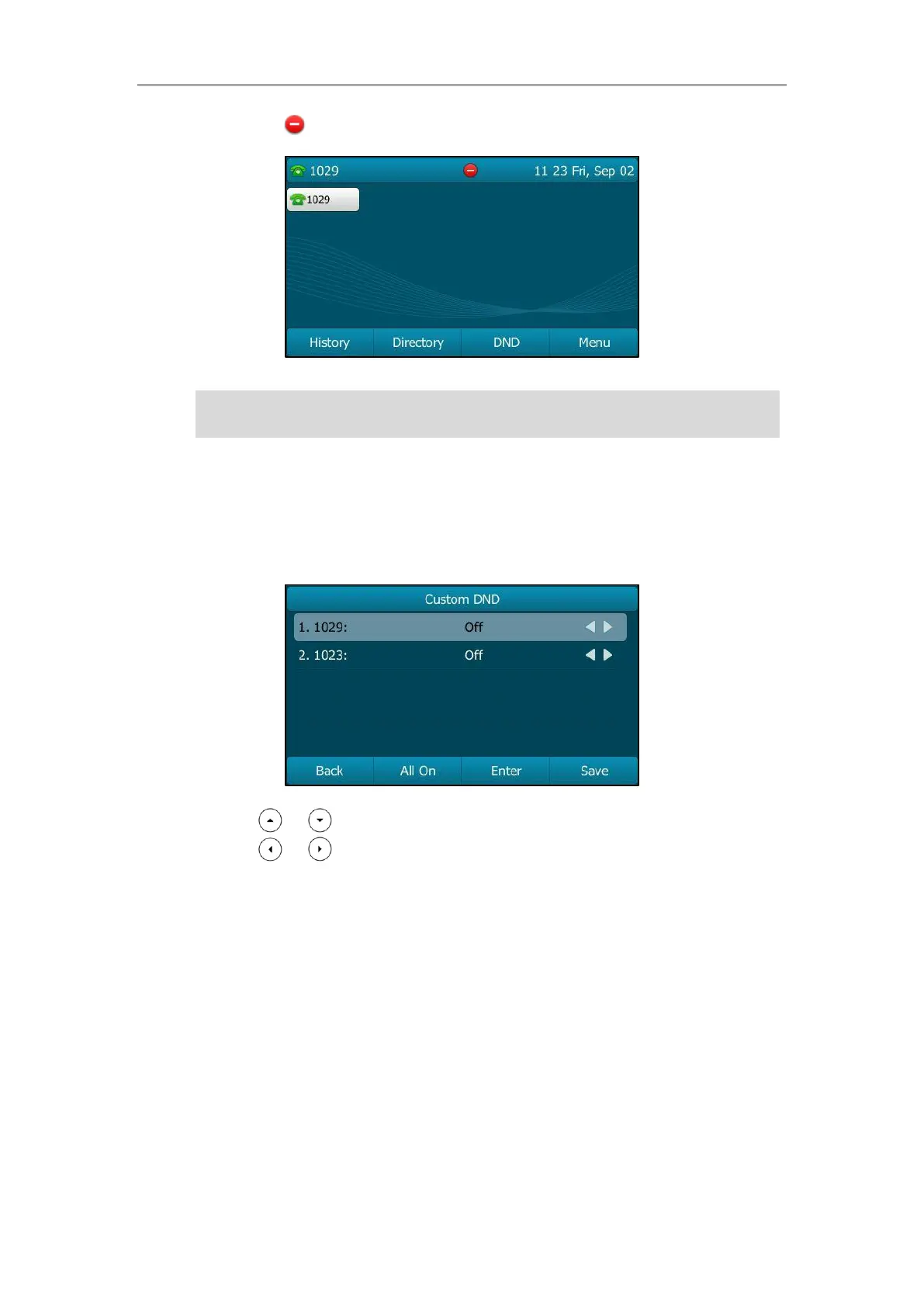

The icon appears on the status bar.
Note
To enable DND in custom mode:
1. Press the DND soft key when the phone is idle.
The LCD screen displays a list of accounts on the phone.
2. Press or to select the desired account and then press the Enter soft key.
3. Press or , or the Switch soft key to select Enabled from the DND Status field.
4. (Optional.) Enter the DND on code or off code respectively in the On Code or Off Code
field.
If the on code or off code is configured, the IP phone will send the corresponding code to
activate or deactivate DND on the server. It is not available on all servers.
5. Press the Save soft key to accept the change.
If you want to enable DND for all accounts, you can press the All On soft key.
When DND and busy forward are enabled in phone mode, calls will be sent to the configured
destination number. For more information on busy forward, refer to Call Forward on page 134.

Yealink SIP-T29G Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.723, G.726, G.729ab, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Lines quantity	10 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Power over Ethernet (PoE)	-
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800
Volume control	Buttons

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
