Yealink SIP-T41S User Manual

User Guide for T4 Series IP Phones
132

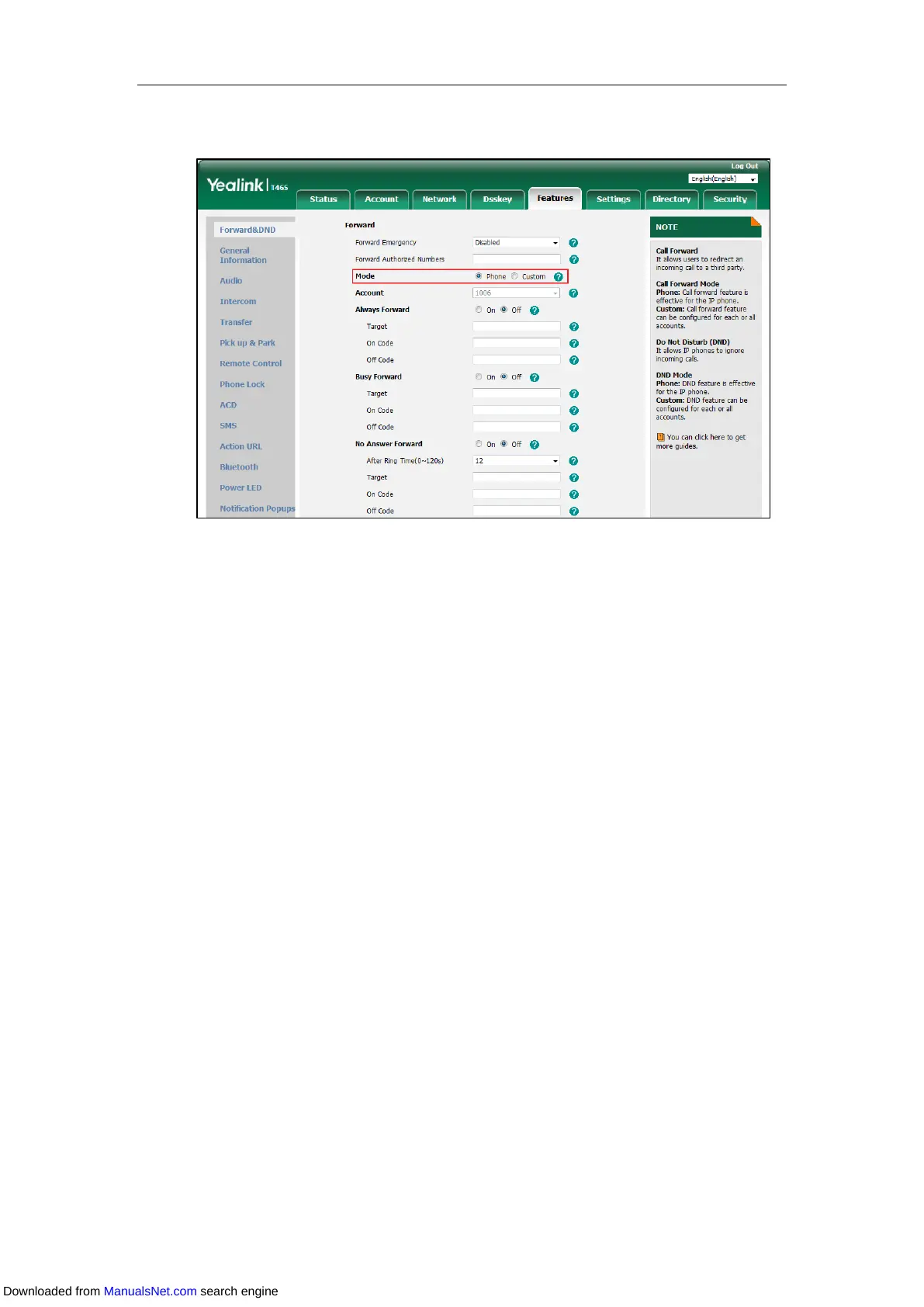

2. In the Forward block, mark the desired radio box in the Mode field.
3. Click Confirm.
Phone Mode
Activating Call Forward in Phone Mode
Procedure:
1. Navigate to Menu->Features->Call Forward, and then select a desired forwarding type.
2. Select Enabled from the Always Forward/Busy Forward/No Answer Forward field.
For the SIP-T48S/T48G IP phone, tap the On radio box of the Always Forward/Busy
Forward/No Answer Forward field.
3. Enter the destination number you want to forward incoming calls to in the Forward to field.
4. If you select the No Answer Forward option, select the desired ring time to wait before
forwarding from the After Ring Time field.
5. (Optional.) Enter the always/busy/no answer forward on code or off code respectively in the
On Code or Off Code field.
If the forward on code or off code is configured, the IP phone sends the corresponding
code to the server when a certain action takes place. For example, if you set the Always
Forward on code to be *71 (may vary on different servers), and the target number to be
1234. When you activate Always Forward on the IP phone, the IP phone sends *711234 to
the server, and then the server will activate Always Forward feature on the server side,
hence being able to get the right status of the extension.
6. Press Save.
The call forward icon on the Idle screen indicates that the call forward is activated.
Downloaded from ManualsNet.com search engine

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
