Yealink SIP-T41S User Manual

Advanced Phone Features
203

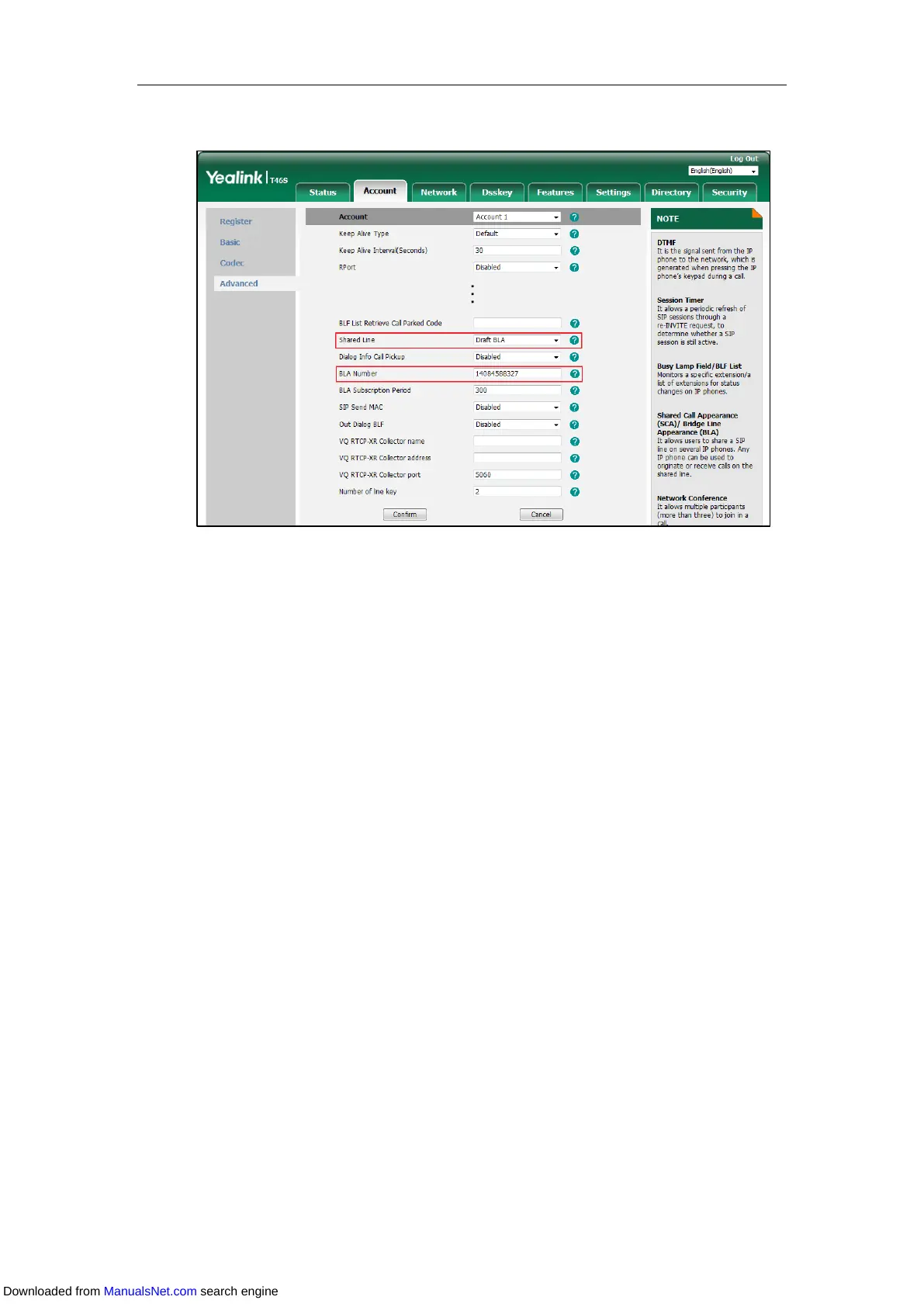

3. Enter the desired number in the BLA Number field.
4. Click Confirm.
Using BLA Feature on the IP Phone
This section provides you with detailed information on using the IP phone in a BLA scenario. In a
BLA scenario, the status of the line key icon which associates with a bridged line will change. For
more information on line key icon indicators, refer to Icon indicators (associated with a bridged
line).
You can do the following using the IP phone in a BLA scenario:
 Placing calls
 Answering calls
 Place a call on hold
 Retrieving a held call
Placing Calls
You can have one call or multiple calls on the bridged line.
Placing a Call on the Bridged Line
Procedure:
Do one of following:
- Enter the desired number using the dialpad when the phone is idle.
Press the OK key, # key, or Send.
Downloaded from ManualsNet.com search engine

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
