Yealink SIP-T41S User Manual

Overview
17

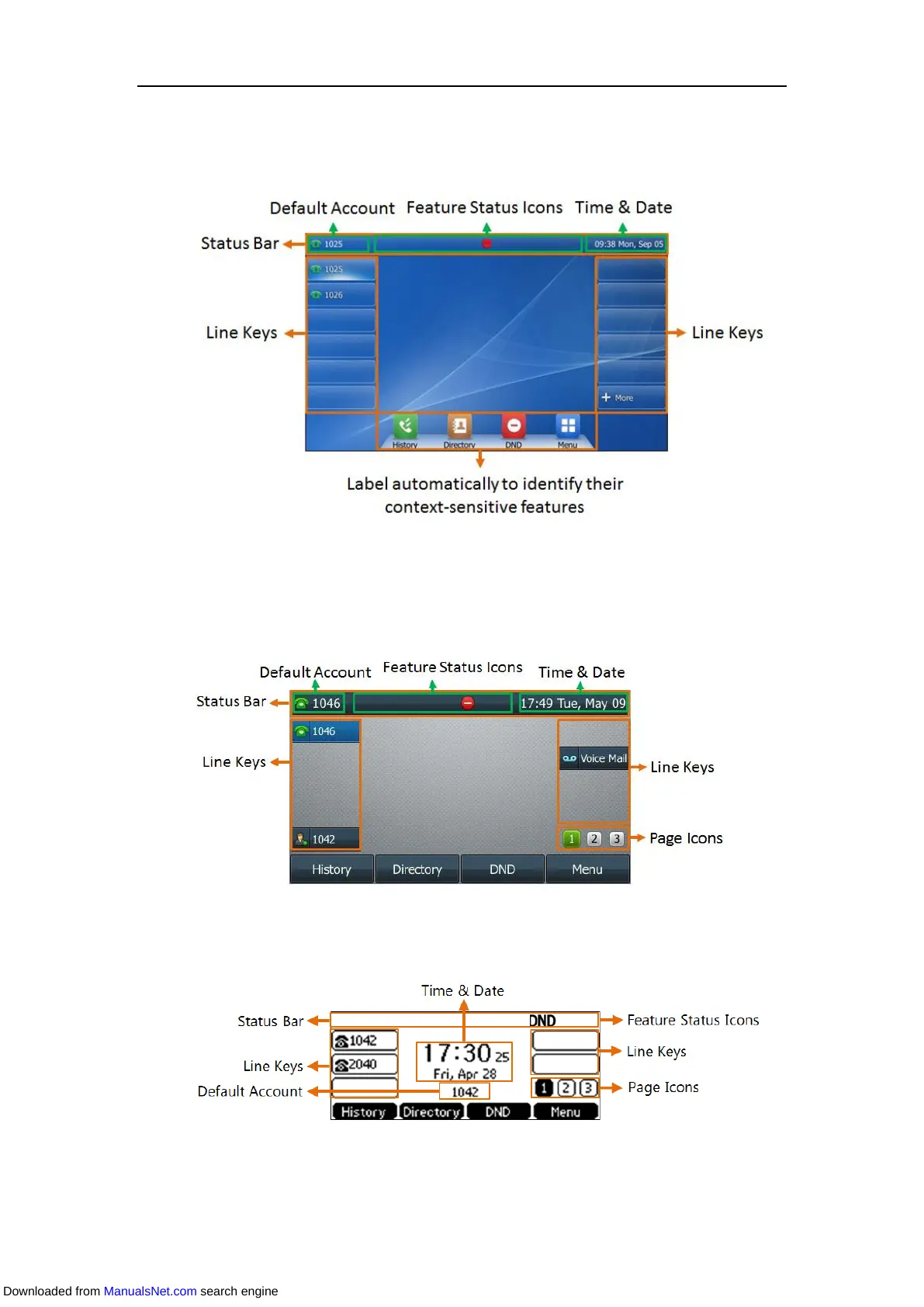

For the SIP-T48S/T48G IP phone, the wallpaper can be customized, refer to Changing Wallpaper
on the Idle Screen for more information. The Idle screen on SIP-T48S/T48G IP phone is shown as
below:
For SIP-T46S/T46G IP phone, the page icons appear only when you assign functionality to line
key located in line key 11-27, refer to DSS Keys for more information. The wallpaper can be
customized, refer to Changing Wallpaper on the Idle Screen for more information. The Idle
screen on SIP-T46S/T46G IP phone is shown as below:
For SIP-T42S/T42G/T41S/T41P IP phone, the page icons appear only when you assign
functionality to line key located in line key 7-15, refer to DSS Keys for more information. The Idle
screen on SIP-T42S/T42G/T41S/T41P IP phone is shown as below:
Downloaded from ManualsNet.com search engine

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
