YL Instruments YL9100 HPLC - Connection of Communication Cable

YL9130 Column Compartment

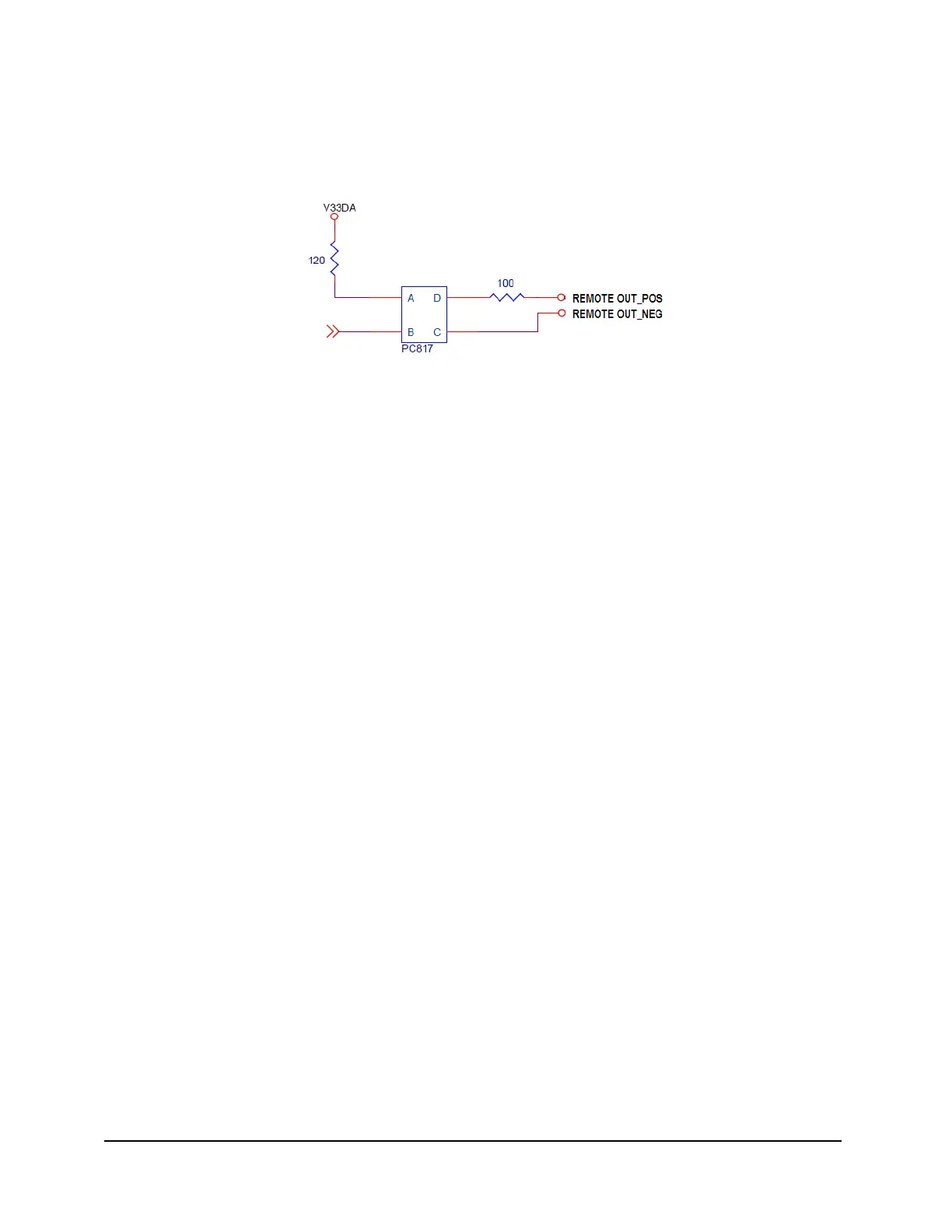

[Fig. 6] Diagram of Remote and Marker output
[Remote operation]
START-IN : Operate instrument, and start running of gradient program.
If you connect it with autosampler or external valve, automatic running is available.
START-OUT : If the signal input on the START-IN terminal, the signal pulse output through this port. It can
be used for synchronization of remote start with the other instrument.
MARK-IN : To control event program or operate additional operation.
MARK-OUT : To control time event program output.
READY-IN : To change error state and stop operation if there is a input.
READY-OUT : When YL9130 column compartment is not ready state because of running status, output
error signal if there is a leak.
2-5. Connection of communication cable
YL9130 column compartment provides TCP/IP internet protocol as a standard. The IP address of
YL9100 series is 10.10.10.30, if DIP SW settings on the rear side are On position. If you change the IP
address using control software, the DIP SW has to be set OFF.
