YL9160 PDA Detector
READY-OUT : When YL9160 PDA detector is not ready state because of running status, output
error signal is indicated if there is a leak.
2-5. Connection of communication cable
YL9160 PDA detector provides TCP/IP internet protocol as a standard. The IP address of YL9100 series is
10.10.10.60, if DIP SW settings on the rear side are On position. If you change the IP address using
control software, the DIP SW has to be set OFF.

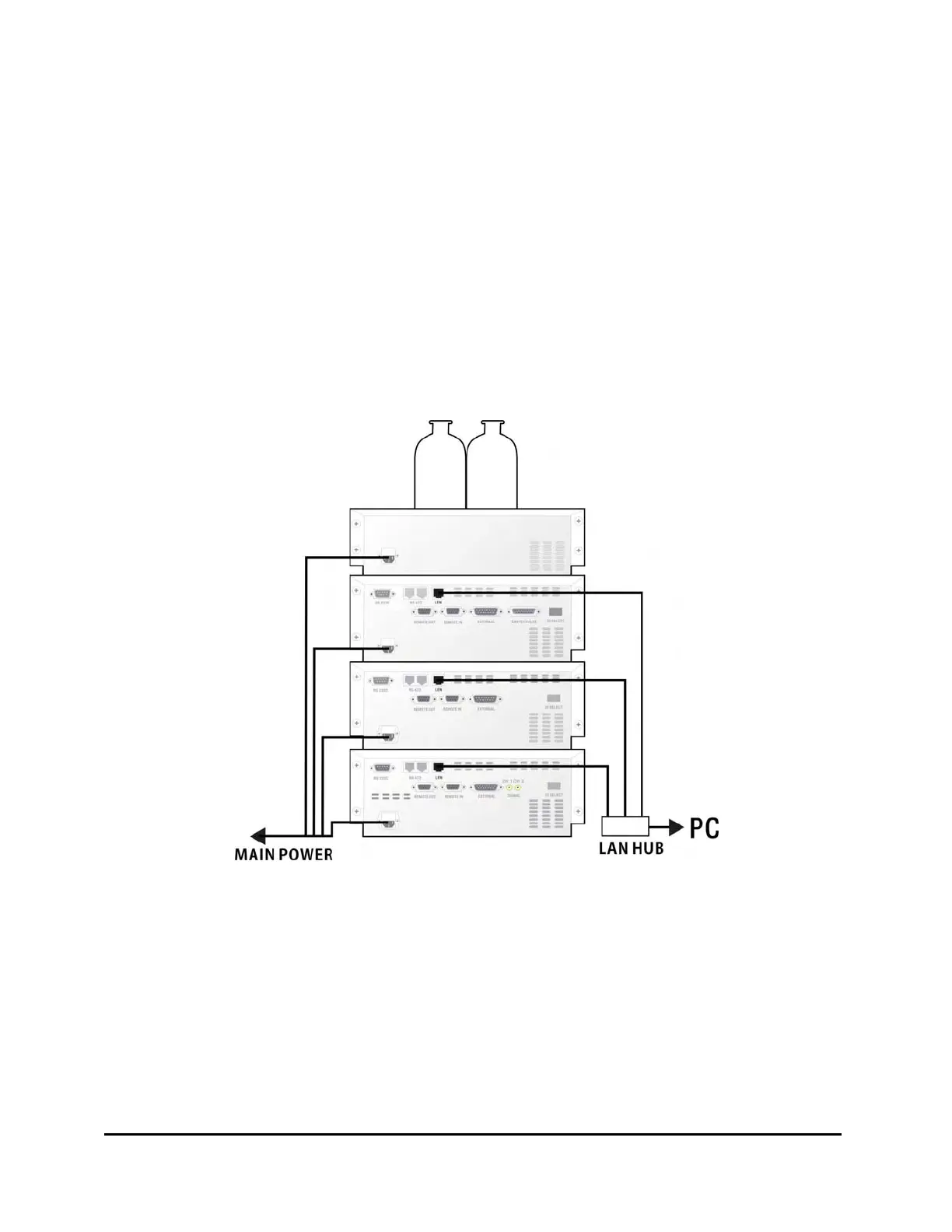

[Fig. 5] Connection of communication cable
Note : The LAN HUB used for cable connection on the PC must use switching mode module.
8
