YL9112 Isocratic Pump
3-4. Connection of remote cable
YL9112 isocratic pump has connection terminals for remote input/output, external solenoid valve, and
marker input/output. The remote cable from the injector(manual or autosampler) has to be connected on
the Remote In terminal on the rear side of YL9112 isocratic pump to collect data at the moment of
injection.
L9112

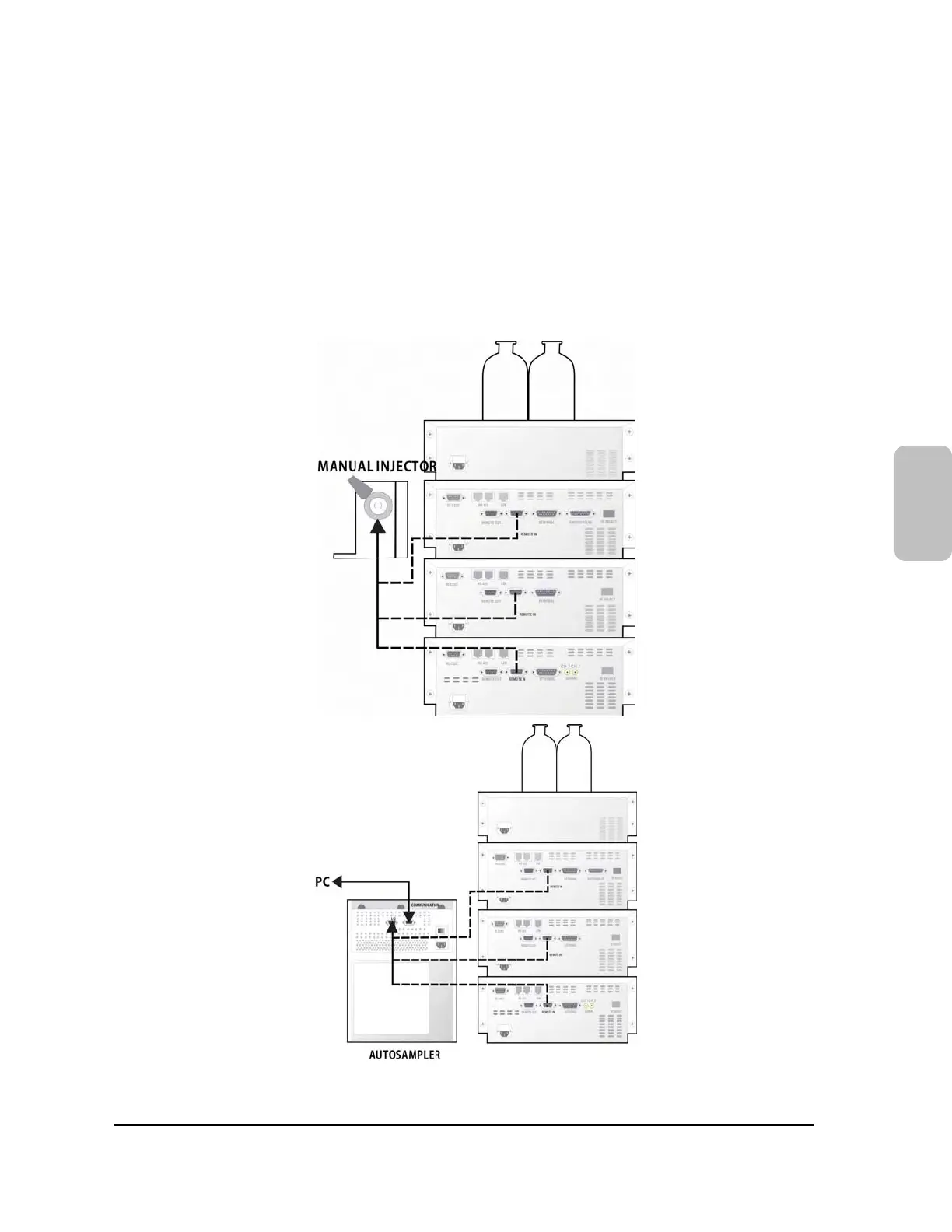

[Fig. 8] Connection of remote cable between YL9112 pump and injector
11
