YL9112 Isocratic Pump
Notice ! : Please do not connect wires between cables at your discretion. If you want to connect
with the other instrument, please check input/output information and confirm with YL9112 isocratic
pump terminal configuration.

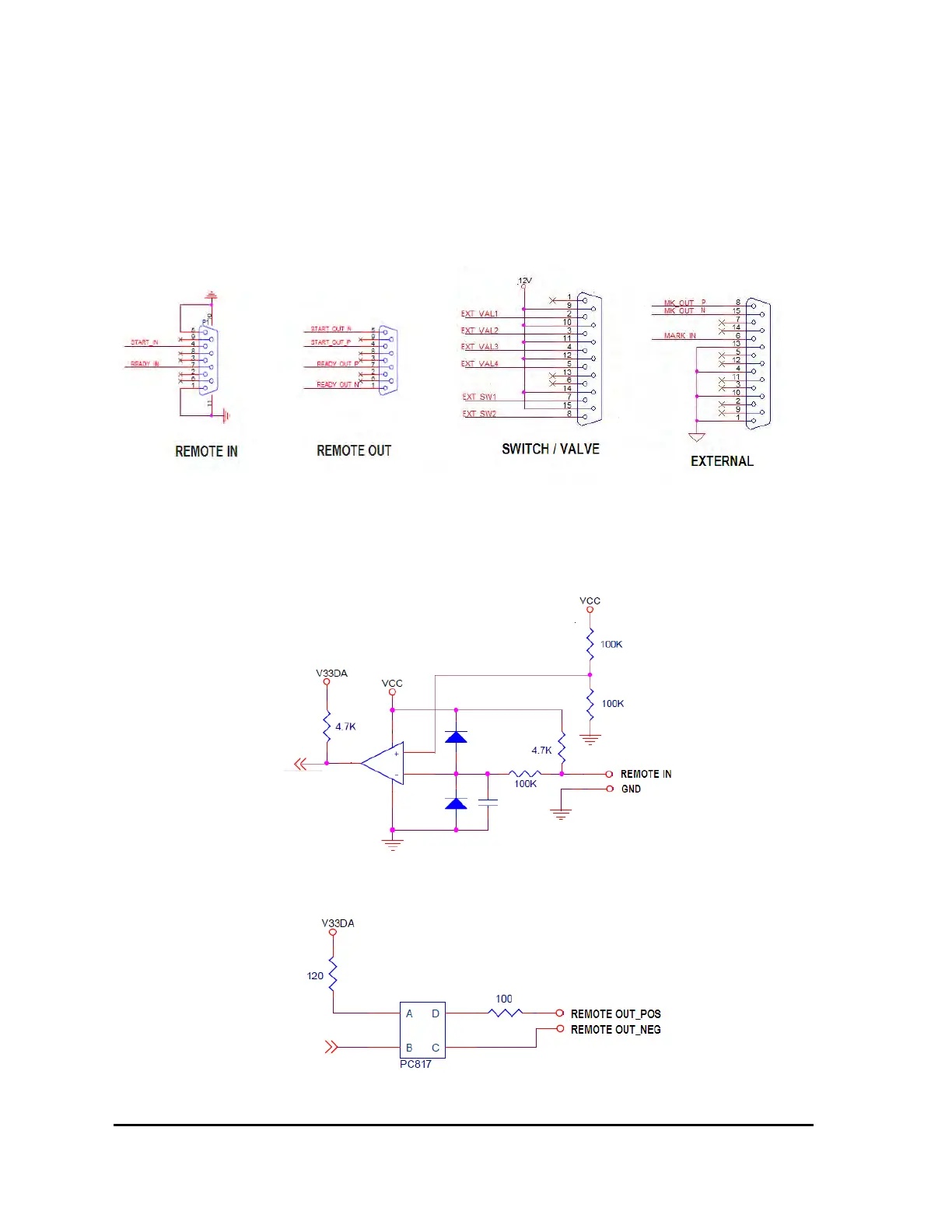

[Fig. 9] Pin configuration of each terminal
[Fig. 10] and [Fig. 11] are the diagram of remote and the other terminal input/output. In between YL9100
series modules, connect directly and confirm the configuration with the other modules.
[Fig. 10] Diagram of Remote and Marker input
[Fig. 11] Diagram of Remote and Marker output
