YL9160 PDA Detector

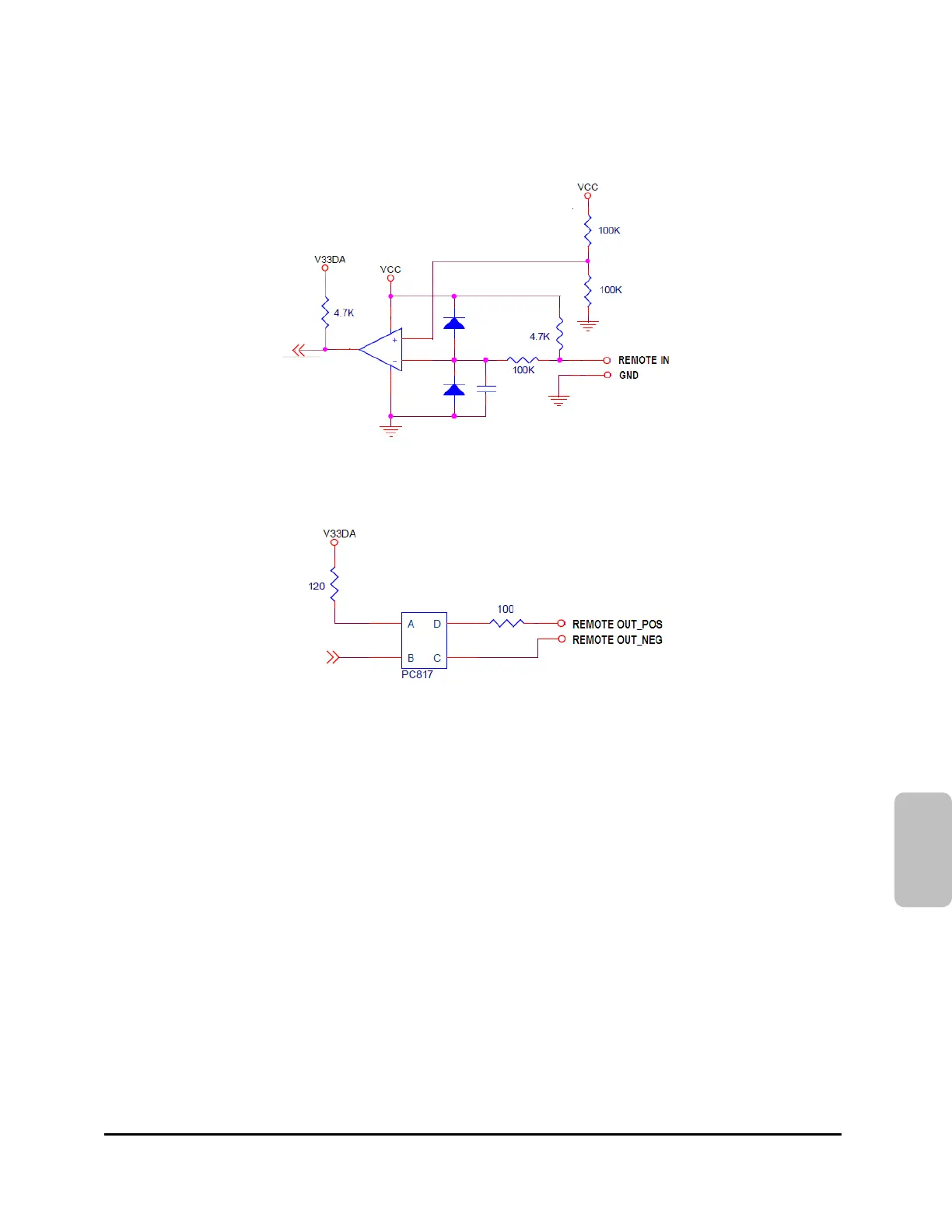

[Fig. 3] Diagram of Remote and Marker input
[Fig. 4] Diagram of Remote and Marker output
[Remote operation]
L9160
START-IN : Operate instrument, and start running of gradient program.
If you connect it with autosampler or external valve, automatic running is available.
START-OUT : If the signal input on the START-IN terminal, the signal pulse output through this port. It can
be used for synchronization of remote start with the other instrument.
MARK-IN : To control event program or operate additional operation.
MARK-OUT : To control time event program output.
READY-IN : To change error state and stop operation if there is a input.
7
