YL Instruments YL9100 HPLC - Page 31

YL9110 Quaternary Pump
Y
L9110

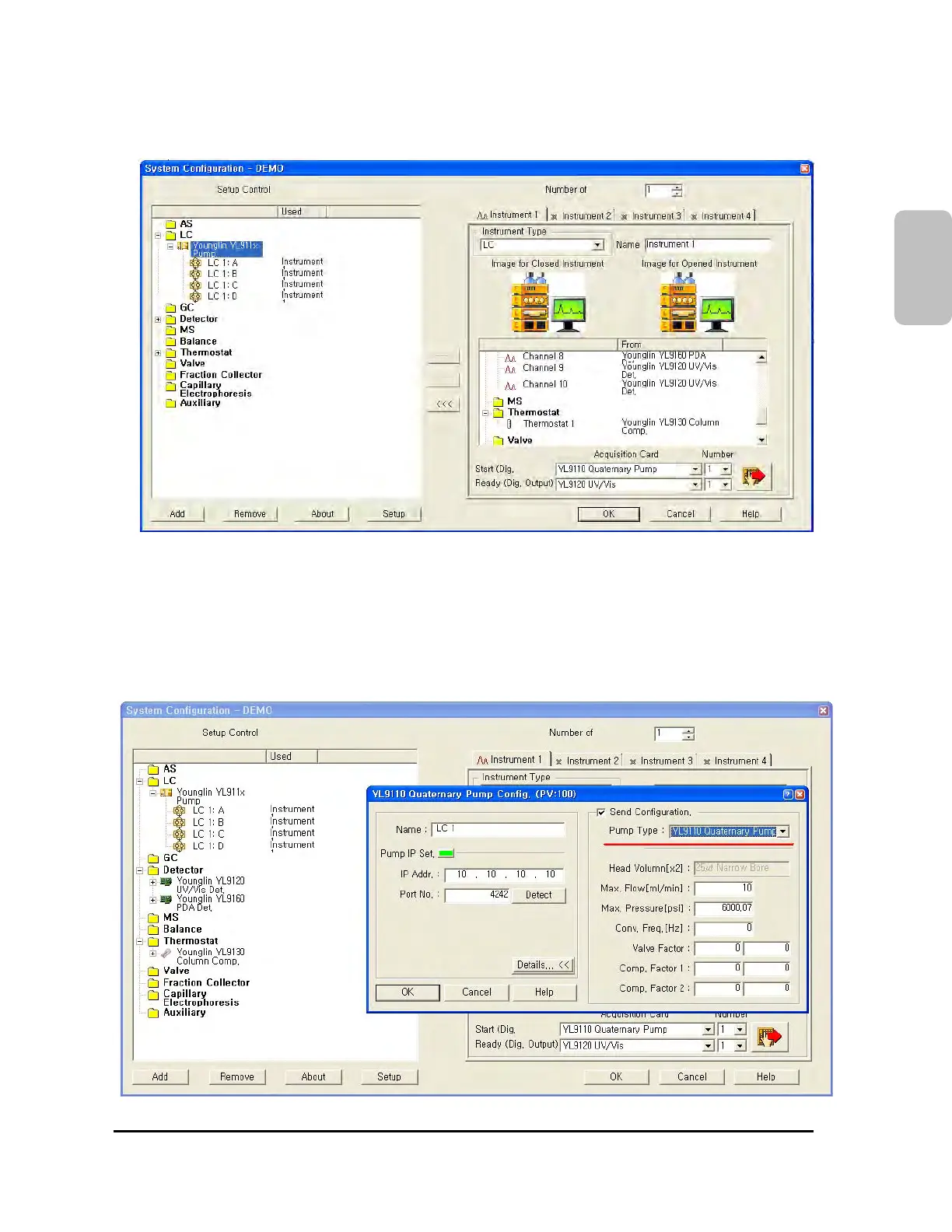

After select YL911x pump on the left window, click arrow button to move this on the right window. Click
red arrow button on the right bottom side and select the pressure unit.
Double click YL911x pump on the right window, and check IP address of pump.
Click “Details” button to select pump type as YL9110 quaternary pump.
19
