Alignment Adjustment
1.
Press the SYSTEM. The system menu is displayed.
2.

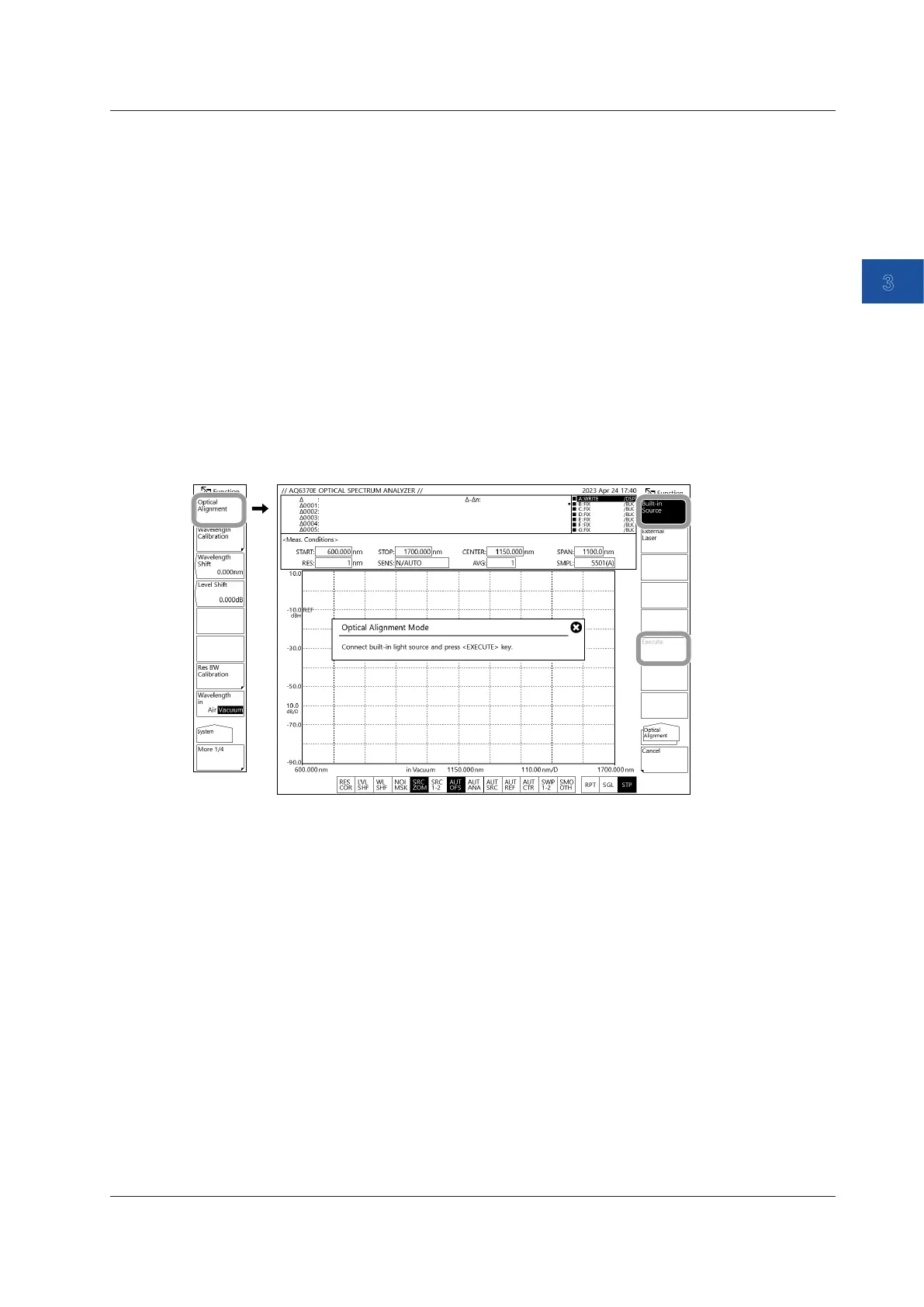

Tap the Optical Alignment.
• When A Stable Single-Wavelength Light Source Such as a DFB-LD Is Connected
3.
Tap the External Laser.
4.
Tap the Execute. Alignment adjustment is executed. The previous screen is displayed again
after the alignment adjustment ends.
• When the AQ6370E/AQ6370D Reference Light Source Is Connected
3.
Tap Built-in Source.
4.
Tap Execute. Alignment adjustment is executed. It will take approximately 2 minutes for the
alignment adjustment to complete. When the alignment adjustment finishes, the previous
screen returns.
5.
Tap the Cancel during alignment adjustment to cancel the alignment adjustment process.
3.5 Alignment Adjustment
