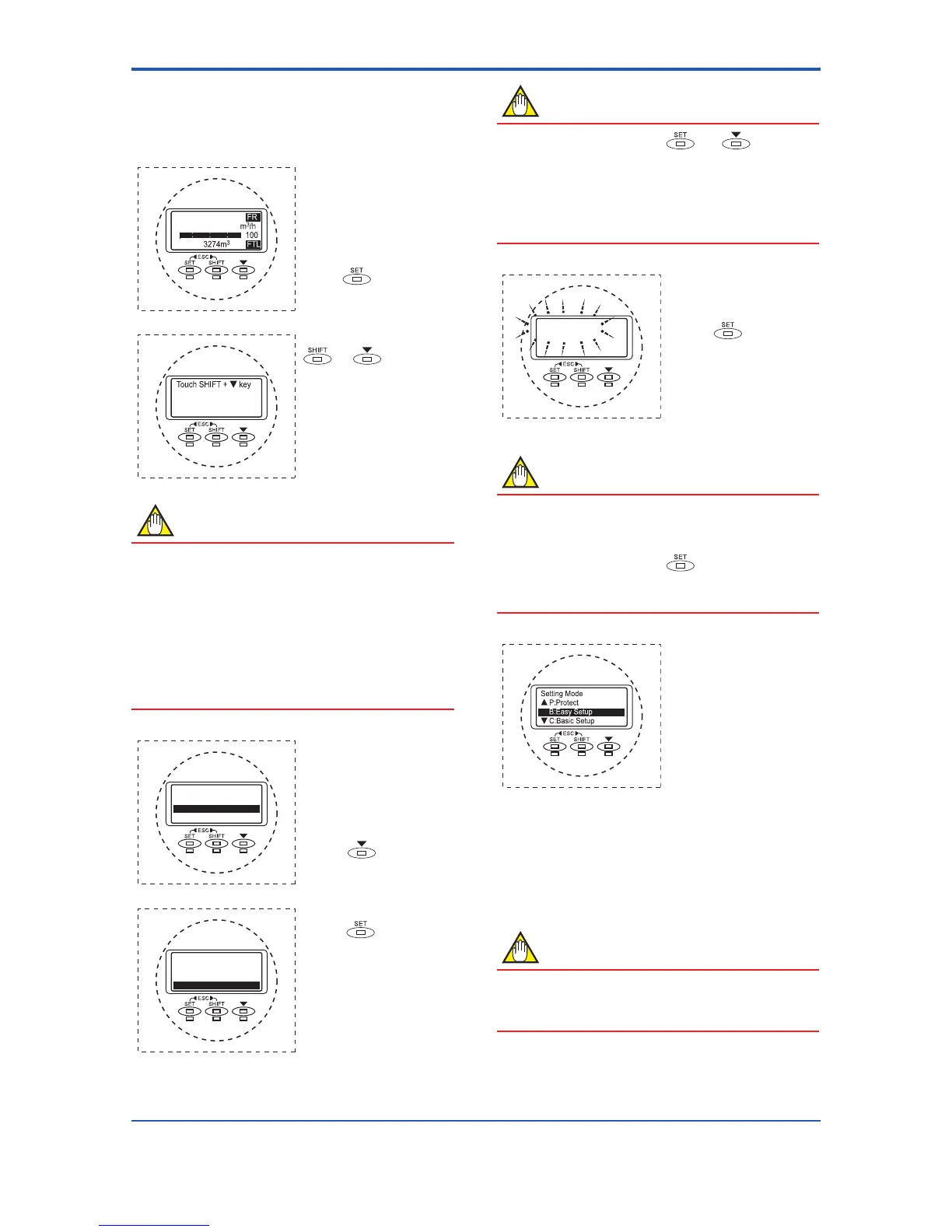

5.3.1 DisplayMode→SettingMode
Display Mode will be adopted when the power is turned
on, and the Setting Mode can be activated using the
following procedure.
F0503.ai

100.000
0
1st line: Actual instantaneous
owrate[FR]
2nd line: Bar graph indicating
instantaneousowrate
3rdline:Totalizedforwardow
rate [FTL]
Hold the
switch for 2
seconds. Then, this display is
changedto“EntryMode”.
F0504.ai

According to the screen, touch
and switches
simultaneously.
NOTE
• When other operations are carried out, the system
will automatically return to the Display Mode.
When no operations in this display are carried
out for 20 seconds, the system will automatically
return to the Display Mode.
• The Major Item Parameter which is set just before
will be shown when entering the Setting Mode
again within 1 minute after returning from Setting
Mode to Display Mode.
F0505.ai
Setting Mode
No
Yes

Ascreenisdisplayedtoconrm
whether or not the system is to
enter Setting Mode.
The reversed-character (i.e. the
cursor position) indicates the
item that is currently selected.
Press the
switch and
select [Yes].
F0506.ai
Setting Mode
No
Yes

When [Yes] has been selected,
touch the
switch.
NOTE
When the operations except and switches
are carried out, the system will automatically return to
the Display Mode.
When no operations in this display are carried out for
20 seconds, the system will automatically return to the
Display Mode.
F0507.ai
Setting Mode
Yes

Inordertorequestconrmation,
theentiredisplayasheson
and off.
Touch the
switch once
againatthistimetoxyour
selection.
NOTE
Whennooperationsintheasheddisplayarecarried
out for 20 seconds, the system will automatically
return to the Display Mode.
When the operations except
switch are carried
out, the system will automatically return to the Display
Mode.
F0508.ai

The system enters Setting Mode.
Parameters to be set can be
selected.
This completes the procedure for changing from
theDisplay Mode to the Parameter Search Mode.
5.3.2 Setting Mode
When the Setting Mode has been activated using the
procedure from Section 5.3.1, parameters can be
selected for setting.
NOTE
If no operations are carried out for a period of 10
minutes in Setting Mode, the system will automatically
return to the Display Mode.
