YOKOGAWA AXW Series Installation Manual

<4. Wiring>
39
IM 01E24A01-01EN

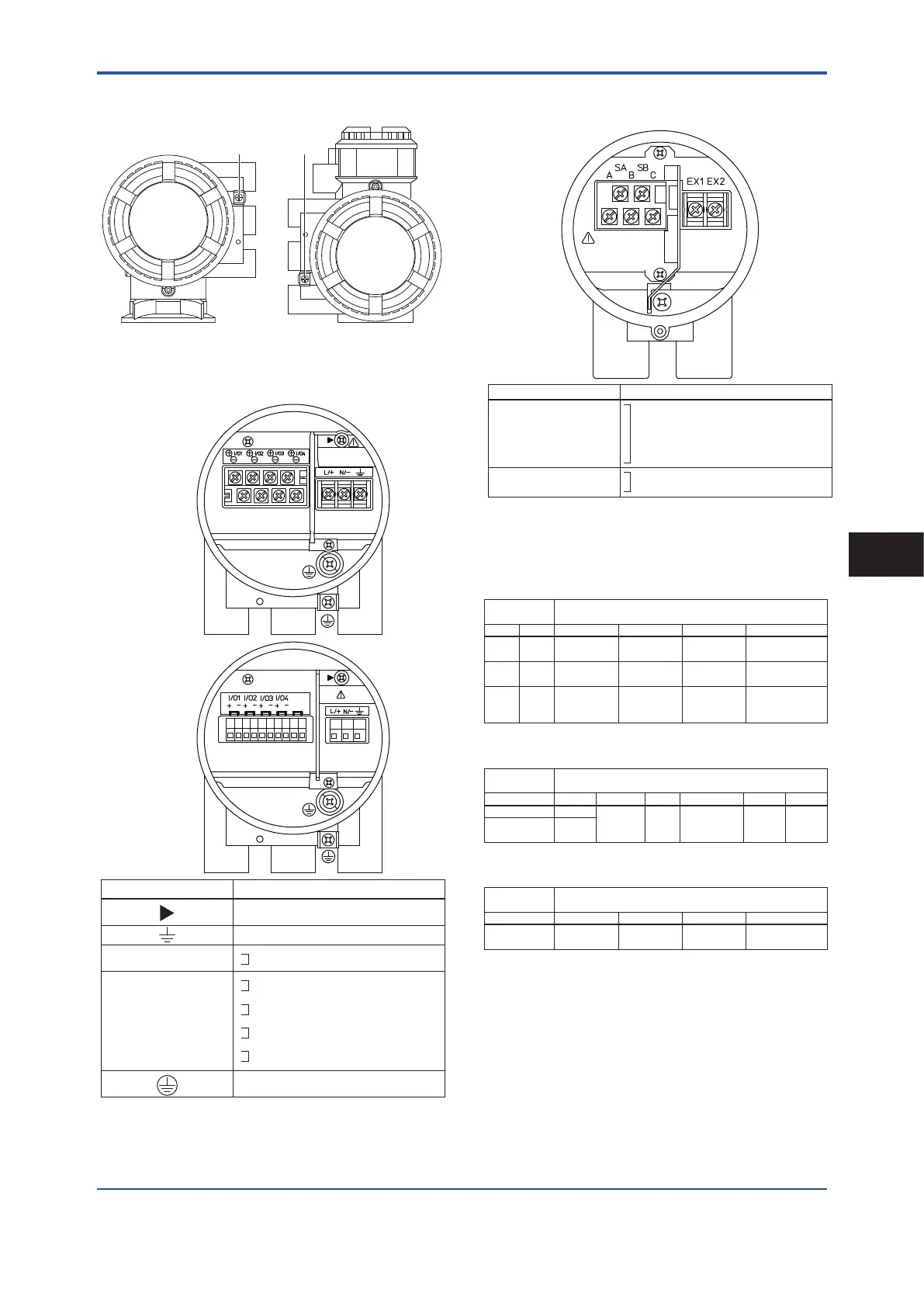

(2) Terminal Conguration
(Integral Flowmeter and AXW4A Transmitter)
F0433.ai
M4 Screw Type
Integral Type/AXW4A Remote Transmitter:
<To be wired to Power Supply and I/Os>
Clamp Type
Terminal Symbol
N/-
L/+
I/O4 -
I/O4 +
I/O3 -
I/O3 +
I/O2 -
I/O2 +
I/O1 -
I/O1 +
Refer to
Input/Output Table
Functional Grounding
Shorting Screw
(Need to be fixed for normal operation)
Protective Grounding
(Inside and outside of the terminal box)
Description
Power Supply
Protective
Grounding Terminal
Protective
Grounding Terminal
Integral Flowmeter AXW4A Remote Transmitter
Figure 4.4.10 Terminal Conguration (Integral Flowmeter
and AXW4A Remote Transmitter)
AXW4A Remote Transmitter:
<To be wired to Remote Sensor>
F0434.ai
Terminal Symbol
SA
SB
A
B
C
EX1
EX2
Flow Signal Input
Excitation Current Output
Description
Figure 4.4.11 Terminal Conguration
(AXW4A Remote Transmitter)
 BRAIN, HART
Communication
and I/O code
Connection Terminal
BRAIN HART I/O1 I/O2 I/O3 I/O4
DA JA
Iout1
Active
P/Sout1
Passive
- -
DE JE
Iout1
Active
P/Sout1
Passive
Sin
No-voltage
P/Sout2
Passive
DG JG
Iout1
Active
P/Sout1
Passive
Sin
No-voltage
P/Sout2
Active
(Without resistor)
 Modbus
Communication
and I/O code
Connection Terminal
Modbus I/O1 I/O2 I/O3 + I/O3 - I/O4 + I/O4 -
M0
-
P/Sout1
Passive
-
Modbus
C(Common)
Modbus
B(D1)
Modbus
A(D0)
M6
Iout2
Active
 FOUNDATION eldbus
Communication
and I/O code
Connection Terminal
Fieldbus I/O1 I/O2 I/O3 I/O4
F0
Fieldbus
(Passive)
P/Sout
(Passive)
- -
Iout1: Current output with BRAIN/HART communication
Iout2: Current output
P/Sout1: Pulse output or status output
P/Sout2: Pulse output or status output
Sin: Status input
Modbus: Modbus communication
Fieldbus: FOUNDATION eldbus communication
The position of Communication and I/O code:
Integral Type:
AXW--
Remote Transmitter:
AXW4A-  
Wiring
4
