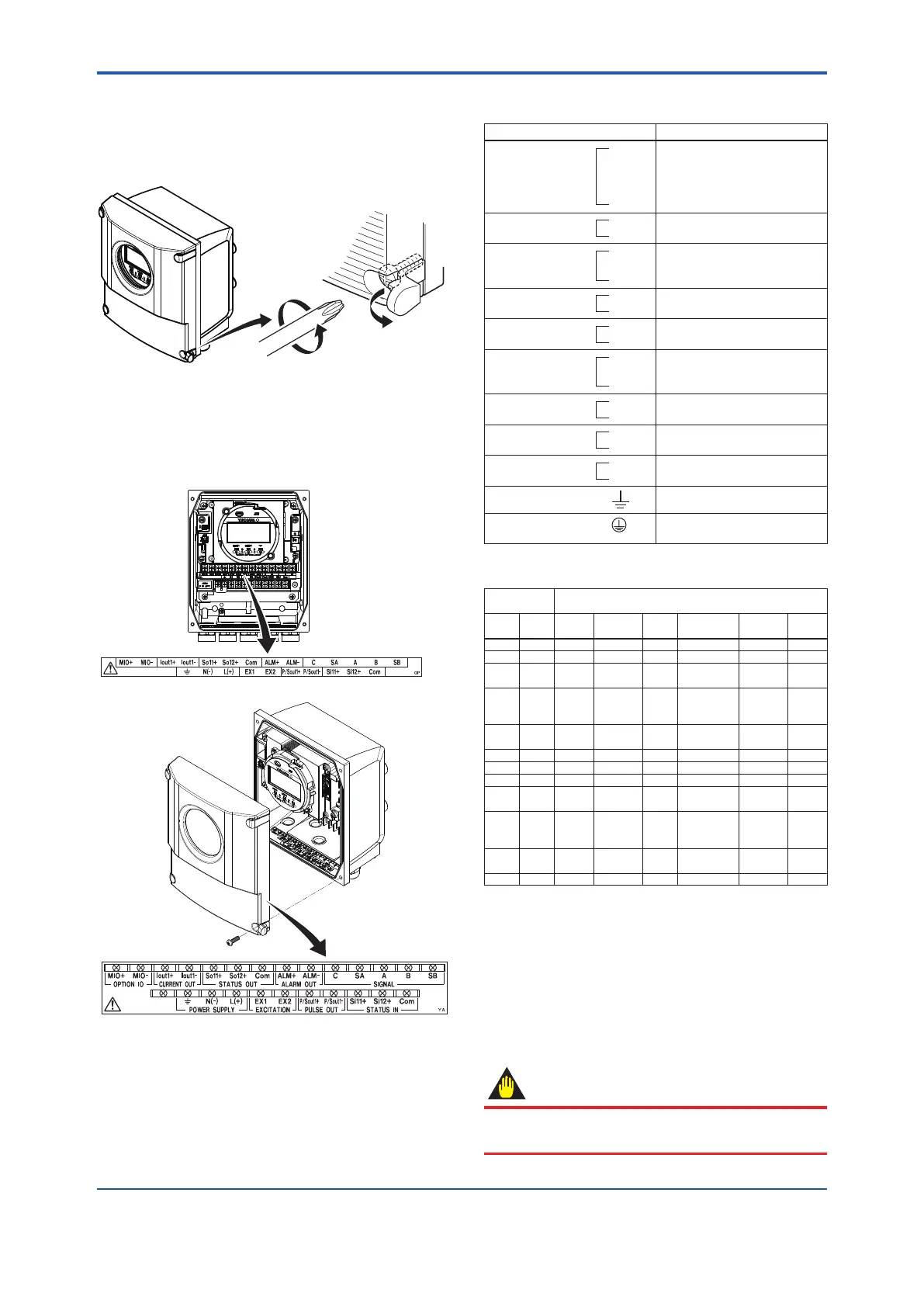

<4. Wiring>
40
IM 01E24A01-01EN
(3) For AXG1A Remote Transmitter
1) Removing the Cover
While supporting the front of the cover with your
hand, ip the connecting screw protective cover
over, and remove the four connecting screws.
F0435.ai
Figure 4.4.12 Removing the Front Cover
(AXG1A Remote Transmitter)
2) Terminal Conguration
When the cover is removed, the connection
terminals will be visible as shown below.
F0436.ai
F0437.ai
Figure 4.4.13 Terminal Conguration
(AXG1A Remote Transmitter)
Table 4.4.1 Terminal Symbols
(AXG1A Remote Transmitter)
Terminal Symbol Description
SIGNAL
C
SA
A
B
SB
Flow signal input
ALARM OUT
ALM+
ALM-
Alarm output
STATUS OUT
So11+
So12+
COM
Status output (Two outputs)
CURRENT OUT
Iout1+
Iout1-
Current output
4−20 mA DC
OPTION IO
MIO+
MIO-
Option input/output
STATUS IN
Si11+
Si12+
COM
Status input (Two inputs)
PULSE OUT
P/Sout1+
P/Sout1-
Pulse output
EXCITATION
EX1
EX2
Excitation current output
POWER SUPPLY
N(-)
L(+)
Power supply
Functional grounding
Protective grounding (Outside of
the terminal)
BRAIN, HART
Communication
and I/O code
Connection Terminal
BRAIN HART
ALM
Passive
So11,So12
Passive
Iout1
Active
MIO
Si11,Si12
No-voltage
P/Sout1
Passive
D0 J0 -
D2 J2
Iin Active
D3 J3
P/Sout2
Passive
D4 J4
P/Sout2 Active
(Without
resistor)
D5 J5
P/Sout2 Active
(With resistor)
D6 J6
Iout2 Active
B0 H0 - - -
B2 H2 -
Iin Active
-
B3 H3 -
P/Sout2
Passive
-
B4 H4 -
P/Sout2 Active
(Without
resistor)
-
B5 H5 -
P/Sout2 Active
(With resistor)
-
B6 H6 -
Iout2 Active
-
Iout1: Current output with BRAIN/HART communication
Iout2: Current output
Iin: Current input
P/Sout1: Pulse output or status output
P/Sout2: Pulse output or status output
Si11, Si12: Status input (Two inputs)
So11, So12: Status output (Two outputs)
The position of Communication and I/O code:
Remote Transmitter:
AXG1A-G000

1
IMPORTANT
Do not wire the terminal without terminal symbols in
terminal layout labels.
