TROUBLESHOOTING
5
5.3.4 Self Test (PRINTER)
Where the DL2700 series is equipped with the optional printer (/B5), print out the
patterns shown in “Figure 5.7 Printer print patterns” on the printing paper.
1Vertically printed lines on alternate dots
2 Checkered pattern every other 1 dot
3 Checkered pattern every other 2 dots
4 Checkered pattern every other 4 dots
5 Checkered pattern every other 8 dots
6 Checkered pattern every other 16 dots
7 Checkered pattern every other 32 dots
7
6
5
4
3
2
1

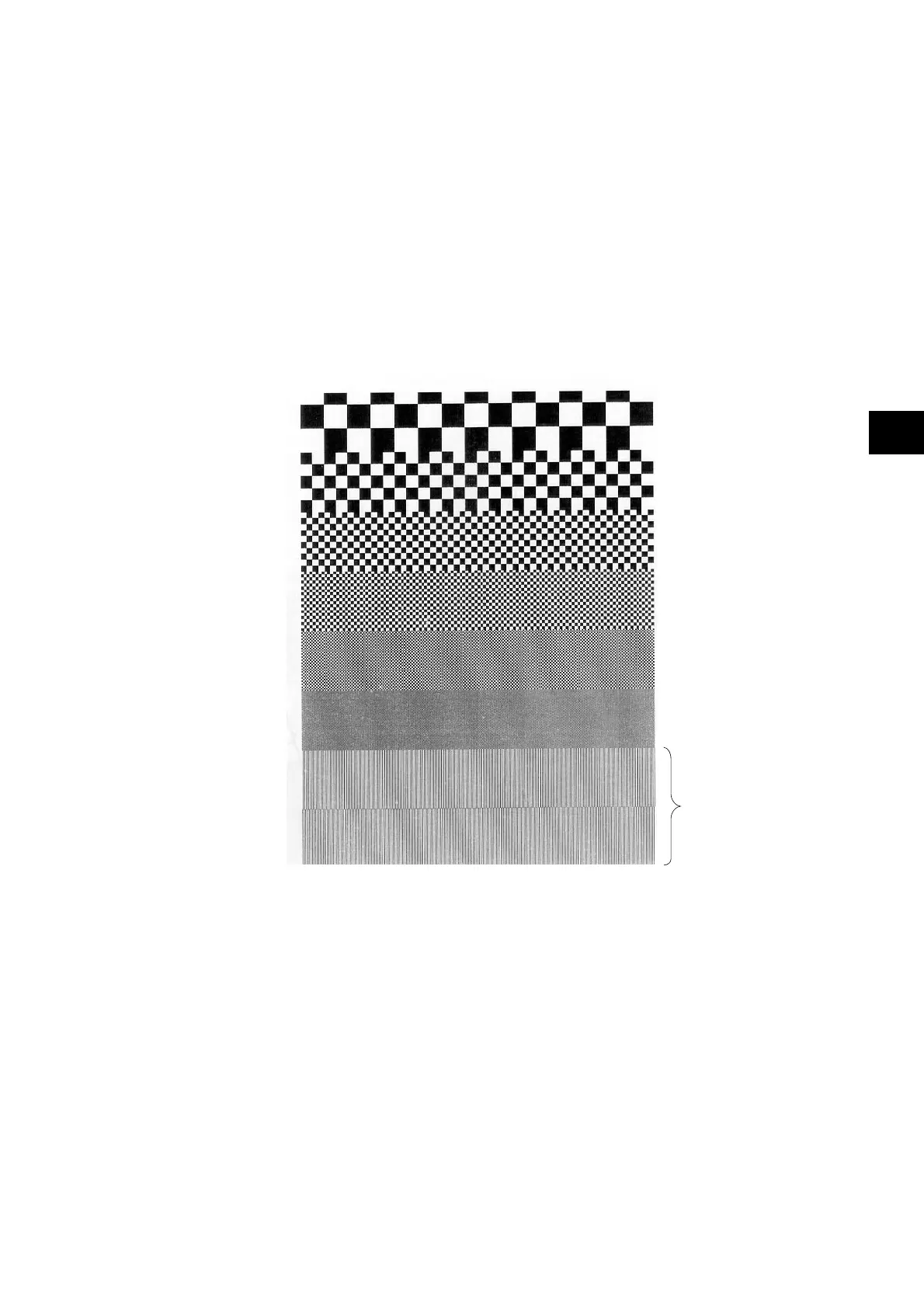

Figure 5.7 Printer print patterns
