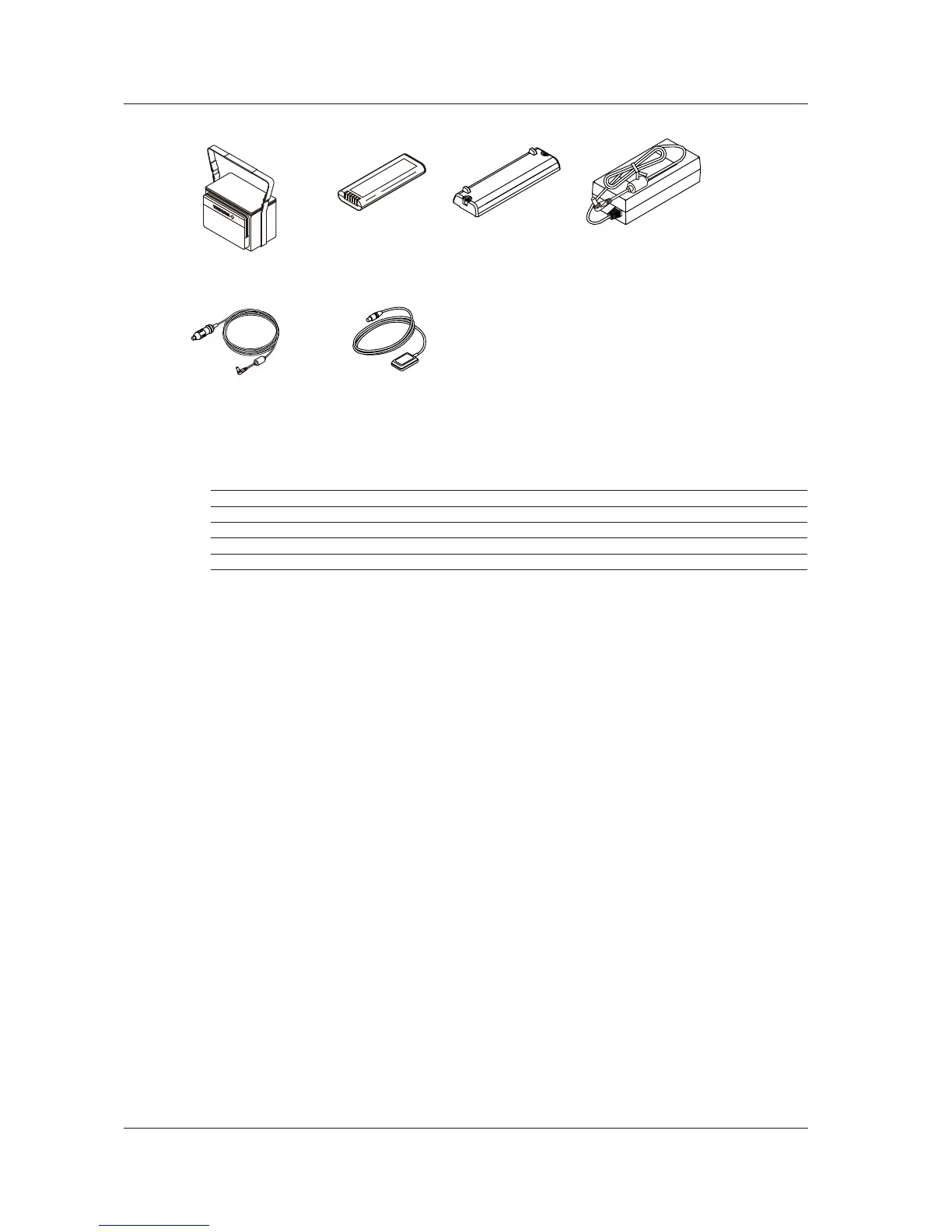

IM DL350-03EN
GPS unit
720940
Carrying case
93050
DC power cable
(Cigarette lighter plug type)
720922
Battery pack
(lithium-ion)
739883
AC adapter*
720921
Battery pack cover
720923
*
A
power cord is included according to the AC adapter’s suffix code. For details, see the
AC adapter
’s user’s manual.
Spare Parts (Sold separately)
The spare parts below are available for purchase separately
. For information about ordering spare
parts, contact your nearest YOKOGA
WA
dealer
.
Item
Part No.
Minimum Q’ty
Note
Fuse
A1637EF
1
250 V
, 10
A, time lag
Cable holder
B1043JC
1
Functional ground screw
B1
133BS
1
Strap
B8093EF
1
Checking the Contents of the Package
11
13
Table of Contents
Default Chapter
2
Product Registration
2
Checking the Contents of the Package
5
Conventions Used in this Manual
13
Safety Precautions
14
Sales in each Country or Region
19
Table of Contents
20
Chapter 1 Names and Functions of Parts
23
Front, Rear, Side, and Top Panels
23
Right Side Panel
24
Left Side Panel
25
Top Panel
26
Panel Keys
28
Screens
29
System Configuration
32
Structure of the Instrument
33
Chapter 2 Making Preparations for Measurements
34
Handling Precautions
34
Appropriate Locations for Using the Instrument
36
Connecting to Functional Ground
39
Installing Input Modules
40
Loading, Removing, and Charging the Battery Pack
45
Charging the Battery
47
Connecting the AC Adapter
48
Connecting the DC Power Supply
50
Attaching the Strap
53
Turning the Power on and off
54
2.10 Connecting Probes
56
2.11 Correcting the Probe Phase
69
2.12 Connecting Measurement Leads
71
Connecting Thermocouples
76
Connecting Bridgeheads
78
Connecting a Logic Probe to the Instrument's Logic Input Terminal or the Logic Input Module
81
Connecting an Acceleration Sensor
84
2.17 Connecting Sensors to the Frequency Module
87
Connecting Wires to the 16-CH Voltage Input Module
89
Connecting Wires to the 16-CH Temperature/Voltage Input Module
92
Connecting a Cable to the CAN Bus Monitor Module
96
Connecting a Cable to the CAN & LIN Bus Monitor Module
97
2.22 Connecting the GPS Unit
98
Chapter 3 Common Operations
99
Touch Panel Operations
99
Entering Values and Strings
100
Using USB Keyboards and Mouse Devices
102
Configuring the Instrument Operation Using the Navigation Screen
106
Synchronizing the Clock
107
Performing Auto Setup
109
Initializing Settings
111
Starting and Stopping Waveform Acquisition
112
Displaying and Using Help
113
Chapter 4 External Signal I/O
114
External Trigger Input (TRGI)
114
Trigger Output (TRGO)
116
External Clock Input (CLKI)
118
GO/NO-GO Determination I/O (GO/NOGO)
119
External Start/Stop/Event Input (STRT/EVNT)
121
GPS Signal Input
123
Chapter 5 Troubleshooting, Maintenance, and Inspection
124
If a Problem Occurs
124
Messages and Corrective Actions
125
Carrying out Self-Tests
132
Calibrating the Touch Panel
133
Updating the Module Firmware
135
Viewing System Information (Overview)
136
Adding Options to the DL350
137
Changing the Power Fuse
138
Recommended Part Replacement
139
Disposal
140
Chapter 6 Specifications
141
Signal Input Section
141
Recorder Mode Feature
141
Scope Mode Features
143
Time Axis
146
Display
146
Main Unit Standard Logic Input
146
Saving Data
146
Storage
147
USB Ports for Peripherals
147
6.10 Auxiliary I/O Section
148
6.11 Computer Interface
149
6.12 General Specifications
150
6.13 Module Specifications
152
High-Speed 100 Ms/S, 12-Bit Isolation Module (720211)
152
High-Speed 10 Ms/S, 12-Bit Isolation Module (720250)
154
4-CH 1 Ms/S, 16-Bit Isolation Module (720254)
156
Hi-Voltage 1 Ms/S 16Bit Isolation Module (with AAF, RMS) (720268)
158
Universal (Voltage/Temp.) Module (701261), Universal (Voltage/Temp.) Module (with AAF) (701262)
160
Temperature, High Precision Voltage Isolation Module (701265)
162
Temp./Hi-Prec. Voltage Module (Low Noise) (720266)
164
Strain Module (NDIS) (701270)
166
Strain Module (DSUB, Shunt-Cal) (701271)
168
Acceleration/Voltage Module (with AAF) (701275)
170
Frequency Module (720281)
172
16-CH Voltage Input Module (720220)
176
16-CH Temperature/Voltage Input Module (720221)
177
Logic Input Module (720230)
179
CAN Bus Monitor Module (720240)
180
CAN & LIN Bus Monitor Module (720241)
181
SENT Monitor Module (720243)
182
6.14 Logic Probe Specifications
183
16-CH Scanner Box Specifications
185
6.16 GPS Unit (B8093YA) Specifications
186
External Dimensions
187
Appendix
188
Appendix 1 Relationship between the Time Scale, Record Length, and Sample Rate
188
Appendix 2 Relationship between the Main Channel Sample Rate, Sub Channel Data Update Rate, and Acquisition Memory Writing Rate
201
Appendix 3 Maximum Record Length and Maximum Number of Acquisitions
205
Appendix 4 Maximum Sample Rate for SD Recording
207
Appendix 5 Record Time and Sample Interval in Recorder Mode
208
Appendix 6 Default Settings
210
Appendix 7 USB Keyboard Key Assignments
216
Appendix 8 Block Diagram
217
