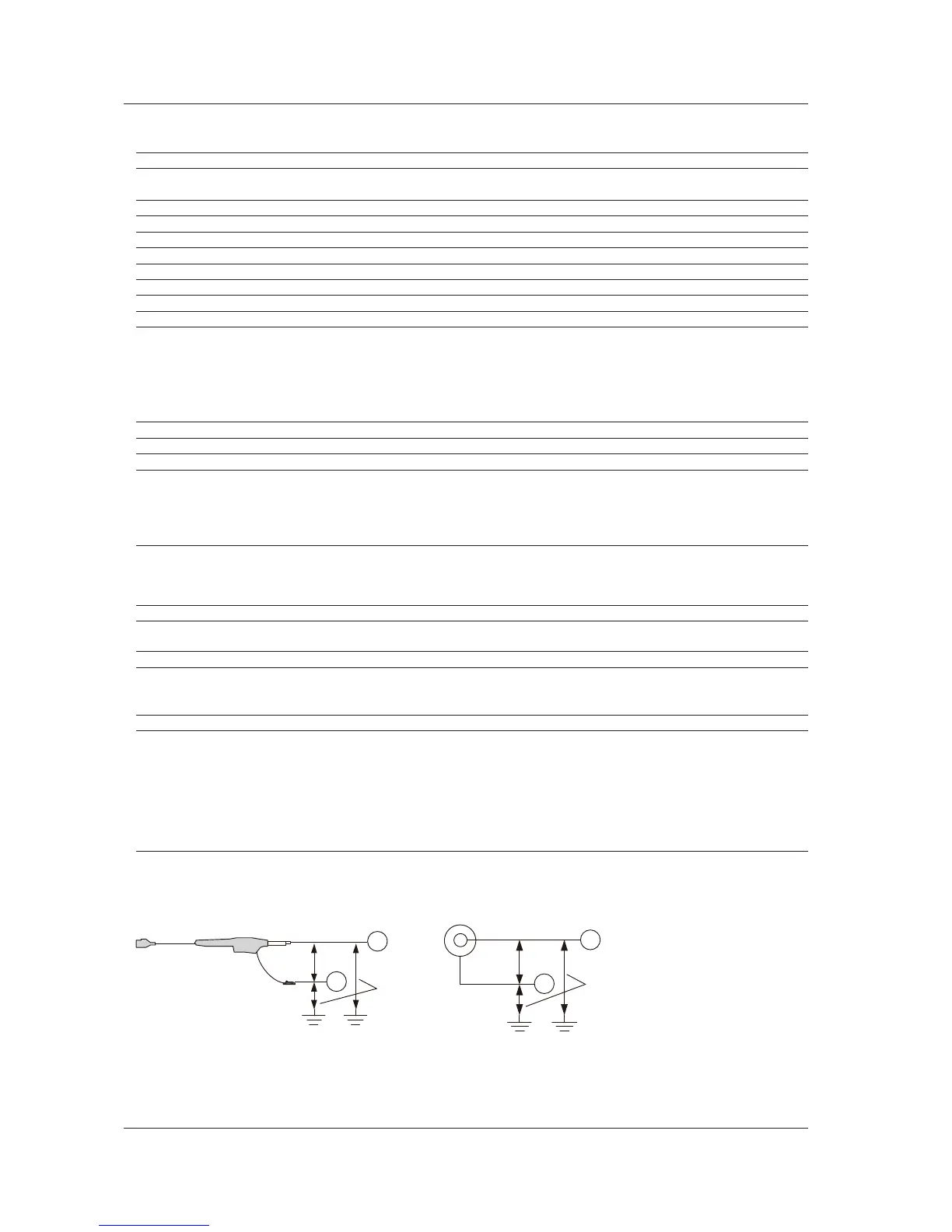

YOKOGAWA DL350 Getting Started Guide

6-42
IM DL35 O -03EN
SENT Monitor Module (720243)
Item Specifications
Standard operating conditions Ambient temperature: 23 to 5°C
Ambient humidity: 20 to 80% RH
Number of input ports 2
Maximum data update rate 100 kS/s (10 µs)
Input format Isolated unbalanced
Input connector BNC connector (isolated type)
Input impedance 1 MΩ ±1%, approx. 35 pF
Supported protocols SAE J2716
Supported clock tick span 1 μs to 100 μs, resolution: 0.01 μs
Supported number of nibbles 1 to 8
Number of analysis sub
channels
8 channels total including fast channels and slow channels
Fast Channel Up to 8
Slow Channel Up to 5
Status & Communication 1 ch (4 bit)
Error trigger 1 ch (5 bit)
Error count 1 ch
Fast channel analysis function Handles fast channel multiplexing
Low level input voltage 1.5 V (typical value
1
)
High level input voltage 3.5 V (typical value
1
)
Maximum input voltage Combined with the 700929 (10:1) or 702902 (10:1):
2
420 V (DC + ACpeak)
Combined with the (701901 + 701954) (1:1) or direct input (cable that does not comply with the
safety standards):
4
42 V (DC + ACpeak)
Maximum rated voltage to
ground
Between input and case
Between inputs
Working voltage of safety standard
3, 5
42 V (DC + ACpeak) (CAT II, 30 Vrms)
Withstand voltage 2300 Vrms for 2 seconds (across each terminal and earth) (60 Hz)
Allowable transient surge voltage
(instantaneous)
±2100 Vpeak (across each input terminal and earth)
Insulation resistance 500 VDC, 10 MΩ or more (across each input terminal and earth)
Input status indication function Input status indication through the LEDs of each port function
When in operation: Illuminates in green when pulse input is detected
When overdriven: Illuminates in red when the input voltage exceeds 20 V
Probe attenuation setting 10:1, 1:1
Compatible probes/cables Voltage probe: Recommended
700929 (10:1 safety probe), 20 to 45 pF
702902 (10:1 safety probe), 25 to 40 pF
Connection cable (for high voltage 1:1)
701901 (isolated type BNC-safety alligator clip adapter ×2), and 701954 (alligator clip) are
required separately.
Connection cable (for low voltage 1:1)
366926 (non-isolated type BNC-alligator clip ×2)
1 Typical value represents a typical or average value. It is not strictly warranted.
Combined with the 700929 or 702902
2
700929
702902
4
5
Allowable transient surge voltage (between the input
terminals and earth): ±2100 Vpeak
3
Combined with the (701901 + 701954) or
direct input (cable that does not comply with the safety standards)
BNC
H
L
H
L
6.13 Module Specifications

YOKOGAWA DL350 Specifications
