YOKOGAWA DL350 Getting Started Guide

1-3
IM DL350-03EN
1
2
3
4
5
6
App
Index

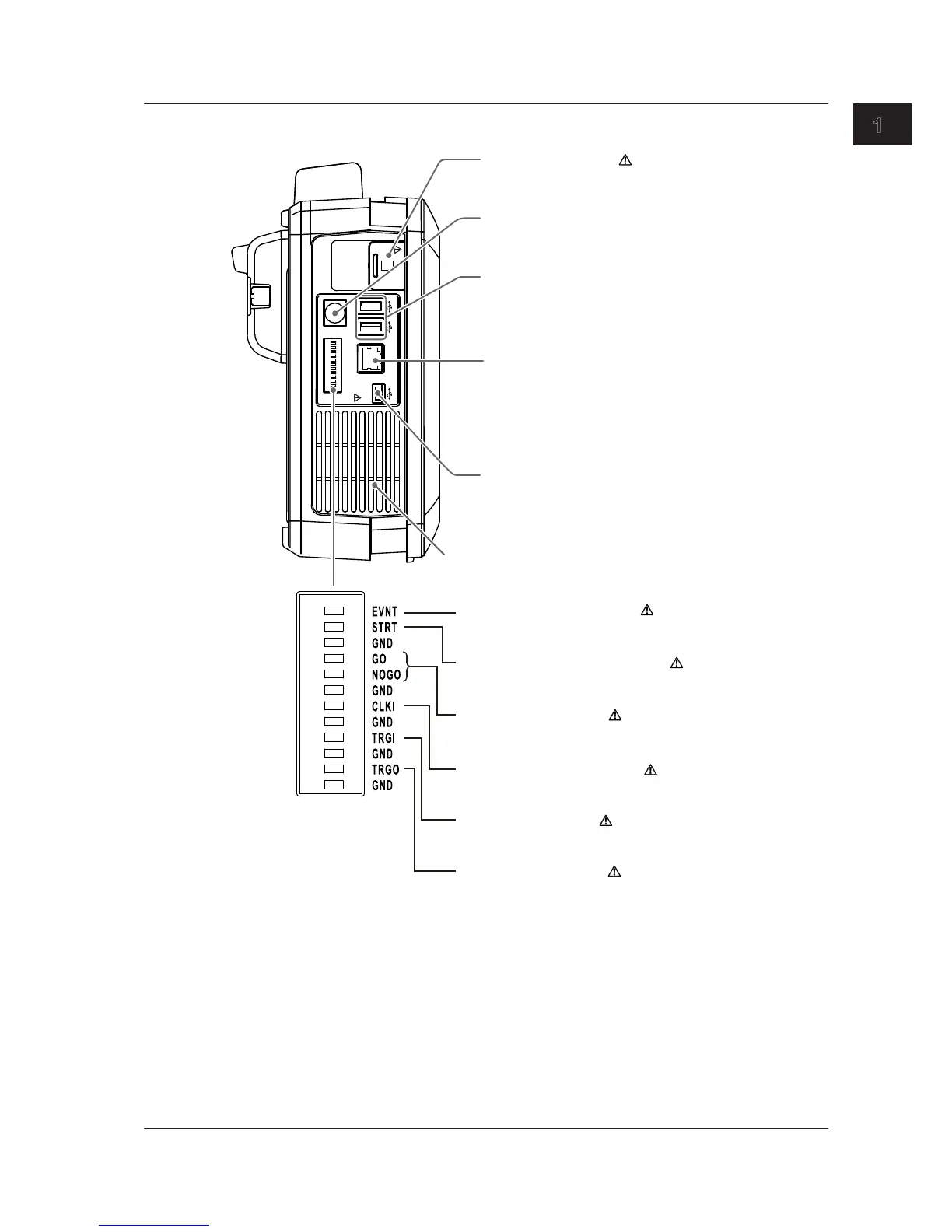

Names and Functions of Parts
Left Side Panel
EVNT
STRT
GND
GO
NOGO
GND
CLKI
GND
TRGI
GND
TRGO
GND
SD CARD
ETHERNET
GPS
Vent
USB port for PCs
Use to connect to a PC that has a USB port.
→ Communication Interface User’s Manual
USB ports for peripherals
Use to connect a USB keyboard, mouse, printer, or storage
device.
→ Section 3.3 and User’s Manual
Trigger output terminal
Use to transmit trigger signals.
→ Section 4.2
Trigger input terminal
Use to apply external trigger signals.
→ Section 4.1
Ethernet port
(100BASE-TX/10BASE-T)
Use to connect a network
→ Features Guide and Communication Interface User’s Manual
SD memory card slot
Use to connect a SD memory card
→ User’s Manual
GPS terminal
Use to apply external GPS signals.
→ Section 2.22
External start/stop input terminal
Use to start and stop the instrument using external signals.
→ Section 4.5
External clock input terminal
Use to apply external clock signals.
→ Section 4.3
GO/NO-GO I/O terminal
Transmits GO/NO-GO determination I/O signals.
→ Section 4.4
Manual event input terminal
Use to apply manual event signals.
→ Section 4.5
1.1 Front, Rear, Side, and Top Panels
