4-9
IM DL350-03EN
External Signal I/O
1
2
3
4
5
6
App
Index

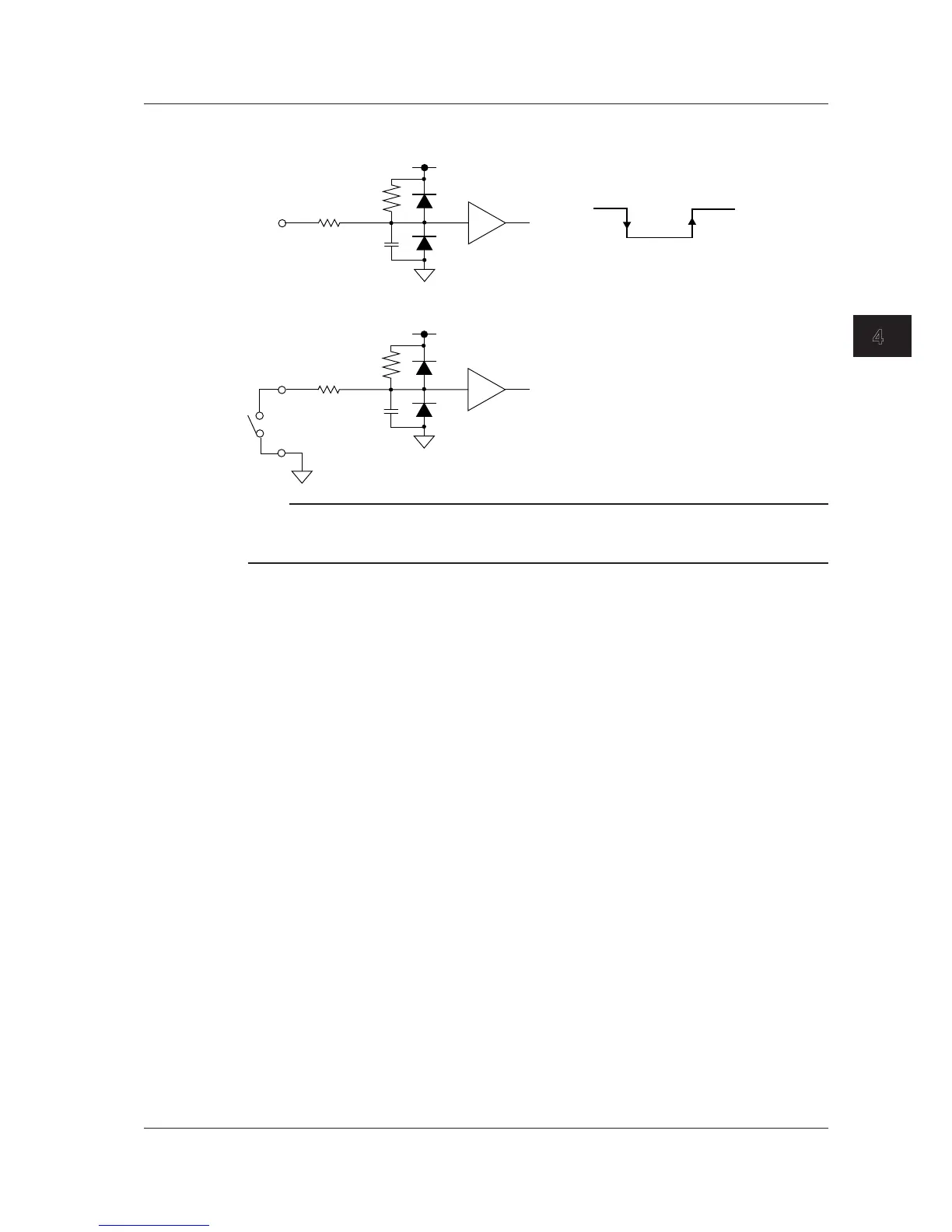

Circuit Diagram for External Start/Stop Input
+5 V
120
Ω
LCX14
4.7 k
Ω
4.7 k
Ω
100 pF
STRT
High
Low
ST
ART
STOP
+5 V
120
Ω
LCX14
100 pF
• Contact
input is possible
Close to
start, open to
stop
STRT
GND
Note
•
Low and high edges are used to detect starts and stops.
•
Y
ou can select whether to enable high edges (stops) in the external start/stop signal or disable. For
information about how to do so, see section 20.5, “Setting Preferences,” in the User
’s Manual.
Connecting a Wire to the T
erminal
For instruction on how to connect a wire to the terminal, see page 4-2.
4.5 External Start/Stop/Event Input (STRT/EVNT)
121
123
