YOKOGAWA DL350 Getting Started Guide

6-19
IM DL35 O -03EN
Specifications
1
2
3
4
5
6
App
Index

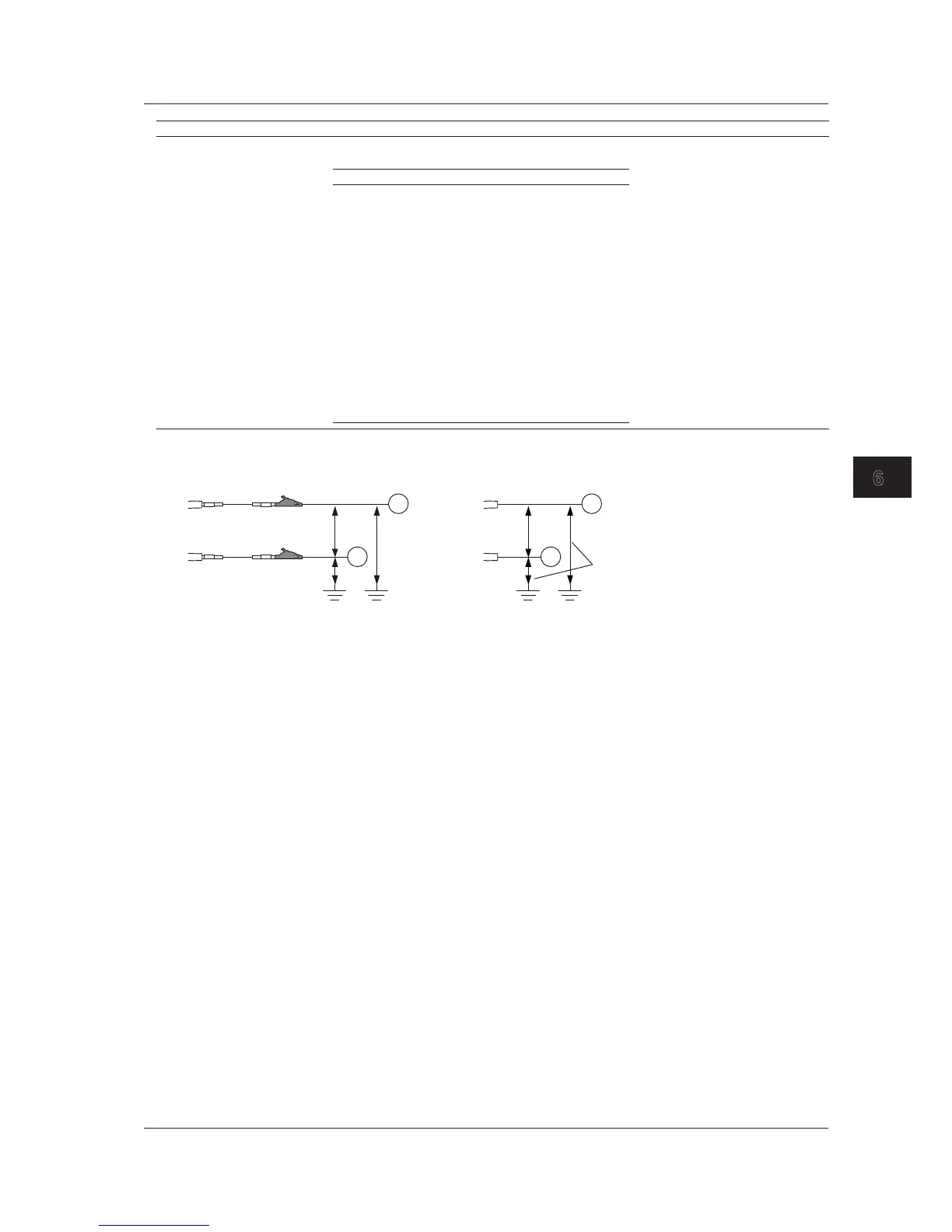

Item Specifications
Cutoff frequency characteristics
of the anti-aliasing filter (AAF)
When the filter is set to AUTO, the anti-aliasing filter (AAF) and low-pass filter are automatically
set according to the sample rate.
Sample Rate AAF Low-Pass Filter
1 MS/s 40 kHz 40 kHz
500 kS/s 40 kHz 40 kHz
200 kS/s 40 kHz 40 kHz
100 kS/s 40 kHz 40 kHz
50 kS/s 20 kHz 40 kHz
20 kS/s 8 kHz 40 kHz
10 kS/s 4 kHz 4 kHz
5 kS/s 2 kHz 4 kHz
2 kS/s 800 Hz 4 kHz
1 kS/s 400 Hz 400 Hz
500 S/s 200 Hz 400 Hz
200 S/s 80 Hz 400 Hz
100 S/s 40 Hz 400 Hz
50 S/s or less 40 Hz 400 Hz
Ext sample OFF OFF
1 Value measured under standard operating conditions
Withstand voltage: 5400 VACrms (2 seconds)
H
L
2
3
(red)
(black)
758933
701904
701954
3
H
L
4
5
(red)
(black)
With the 758933 and 701954, with the 701904
and 701954
Direct input (cable that does not comply
with the safety standards)
Signal input terminal
Signal input
terminal
6 Typical value represents a typical or average value. It is not strictly warranted.
7 850 V (DC + ACpeak) when used on the DL850, DL850V, DL850E, DL850EV, or SL1000.
6.13 Module Specifications
