YOKOGAWA DL350 Getting Started Guide

6-33
IM DL35 O -03EN
Specifications
1
2
3
4
5
6
App
Index
Item Specifications
• When in pulse width measurement mode
8
Measurement accuracy is specified according to the measurement range and input pulse width
[Definition of measurement accuracy]
±(0.05% of 10 div + accuracy dependent on the input pulse width)
[Accuracy dependent on the input pulse width]
Input pulse width of 500 μs or greater: 0.05% of the input pulse width
Input pulse width of 20 μs to 500 μs: 0.1% of the input pulse width + 0.1 μs
Input pulse width of 10 μs to 20 μs: 0.2% of the input pulse width + 0.1 μs
Input pulse width of 10 μs or less: 0.5% of the input pulse width + 0.1 μs
Input voltage range (±FS) When using 1:1 probe factor: ±1 V, ±2 V, ±5 V, ±10 V, ±20 V, ±50 V (±FS)
Input impedance 1 MΩ ±1%, approximately 35 pF
Pull-up function: 10 kΩ, approx. 5 V (pull-up can be turned ON only when the input is set to Pull-
up 5 V)
Input coupling settings AC, DC
Probe attenuation setting 10:1, 1:1
Minimum voltage width for
pulse detection
200 mV
P-P
Bandwidth limit Select from Full, 100 kHz, 10 kHz, 1 kHz, and 100 Hz
Cut-off characteristics: −12 dB/OCT (typical value
9
)
Threshold level Set within the FS of the voltage range. Set in units of 1% of the FS.
Hysteresis Select ±1%, ±2.5%, or ±5% of the FS of the voltage range
Preset function Logic (5 V, 3 V, 12 V, 24 V), electromagnetic pickup, zero crossing, pull-up, AC100 V, AC200 V, and
user-defined
Slope selection Select rising or falling
Low frequency −3 dB point
when AC coupled
0.5 Hz or less (0.05 Hz or less when using the 700929 or 702902, 0.005 Hz or less when using the
701947) (typical value
9
)
Chatter elimination function OFF or 1 to 1000 ms (1 ms resolution)
Eliminates the chatter that occurs such when the contact input is turned ON/OFF. Can discard the
signal changes over the specified interval.
Input status indication
function
Input status indication through the LEDs of each channel function
When in operation: Illuminates in green when pulse input is detected
When overdriven: Illuminates in red when the input voltage exceeds the range
Compatible probes/cables Connection cable (1:1): Recommended 1
366926
Voltage probe: Recommended 2
700929 (10:1 safety probe), 20 to 45 pF
702902 (10:1 safety probe), 25 to 40 pF
701947 (100:1 safety probe), 15 to 45 pF

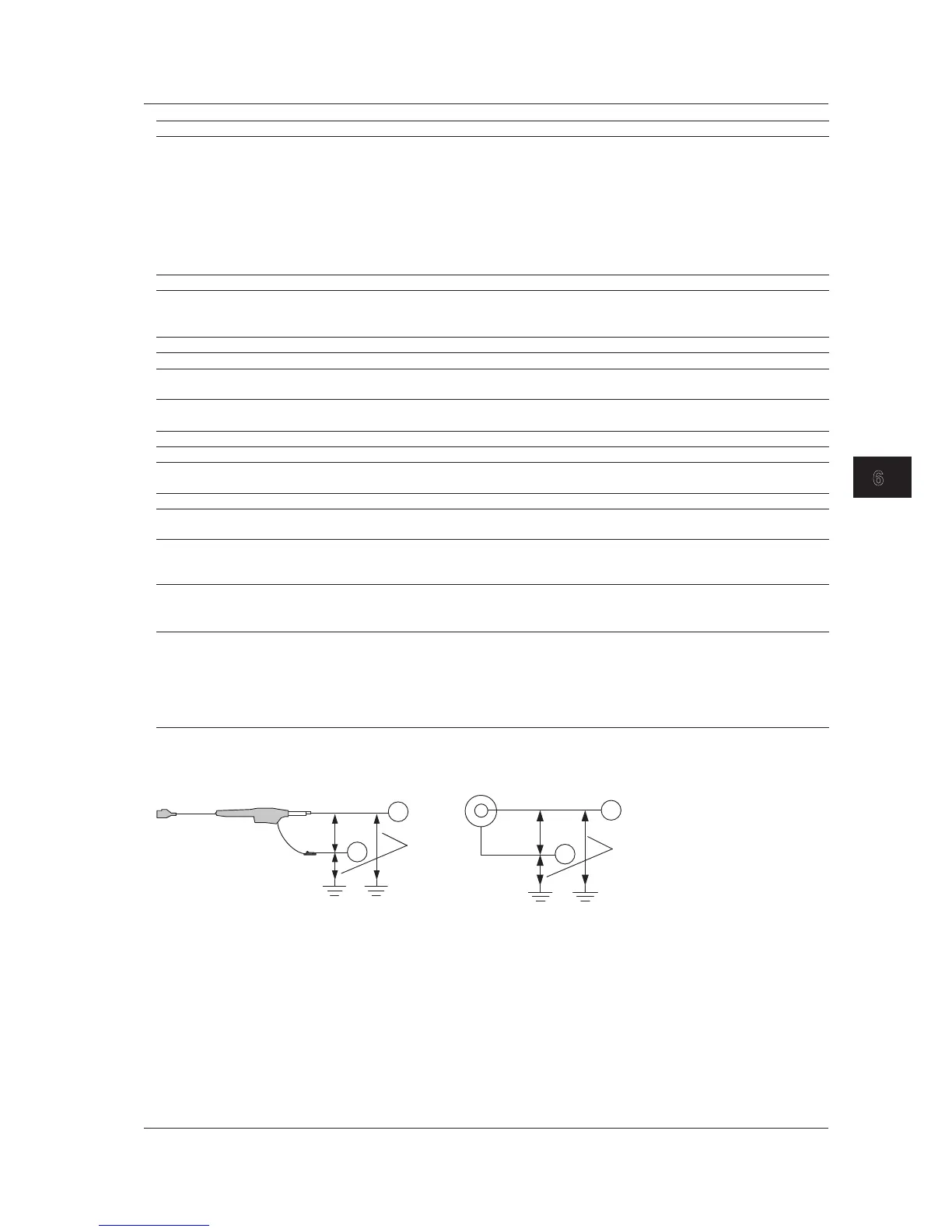

1 Value measured under standard operating conditions
H
L
Combined with the 700929, 702902, or 701947
2
700929
702902
701947
H
L
4
5
BNC
3
Combined with the (701901 + 701954) or direct input
(cable that does not comply with the safety standards)
6 Input waveform of 1 Vpp, rectangular wave, rise/fall time within 1 µs (input range: ±10 V, bandwidth limit: Full, and hysteresis: ±1%)
7 Input waveform of 90 Vrms, sine wave (input range: AC100 V, bandwidth limit 100 kHz, and hysteresis: ±1%)
8 Input waveform of 1 Vpp, rectangular wave, rise/fall time within 5 ns (input range: ±10 V, bandwidth limit: Full, and hysteresis: ±1%)
9 Typical value represents a typical or average value. It is not strictly warranted.
6.13 Module Specifications
